Chapter 10. LCD Menu
105

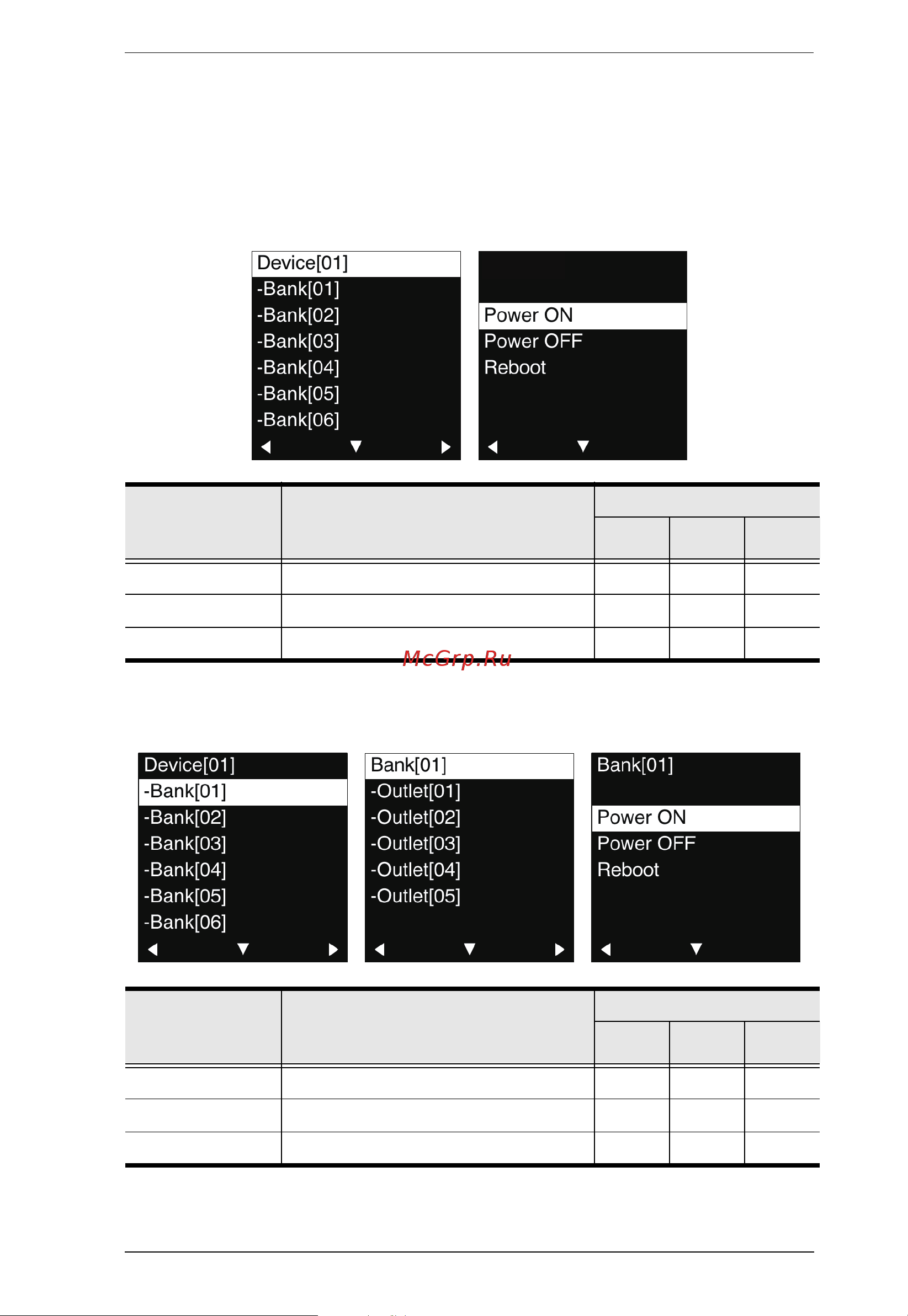

On the main menu screen, select Switch ON/OFF and then press ENTER
button to enter the detailed page, and depending on the model, you may enter
the following subpages:
Press ENTER button to enter Device detailed page. Press SELECT to
choose the action and then press ENTER to take the selected action.
On bank selection list, press SELECT button to select the bank you'd like
to check, and then press ENTER button to select the following actions:Or
Item Description
Supported Model
PG95
Series
PG96
Series
PG98
Series
Power ON Turn the uint on.
Power OFF Turn the uint off.
Reboot Reboot the uint.
Item Description
Supported Model
PG95
Series
PG96
Series
PG98
Series
Power ON Turn the bank on.
Power OFF Turn the bank off.
Reboot Reboot the bank.
DeviceDevice
