Chapter 8. Setup
87

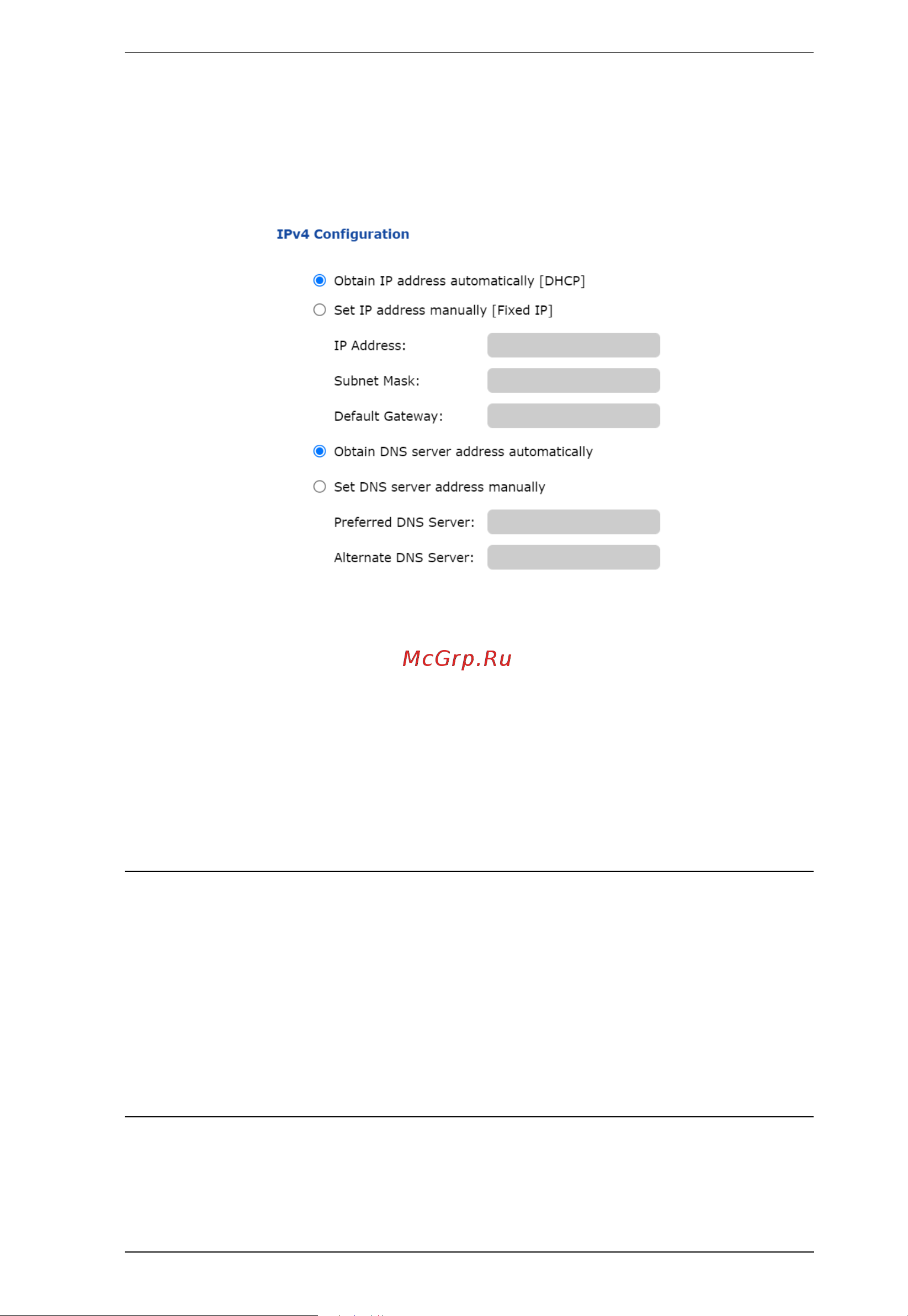

IPv4 Configuration
The eco PDU’s IPv4 IP and DNS addresses (the traditional method of
specifying IP addresses) can either be assigned automatically (DHCP), or
manually, by specifying a fix IP address.
For dynamic IP address assignment, select the Obtain IP address
automatically radio button. (This is the default setting.)
To specify a fixed IP address, select the Set IP address manually radio
button and fill in the IP address with values appropriate for your network.
For automatic DNS Server address assignment, select the Obtain DNS
Server address automatically radio button.
To specify the DNS Server address manually, select the Set DNS server
address manually radio button, and fill in the addresses for the Preferred
and Alternate DNS servers with values appropriate for your network.
Note: 1. If you choose Obtain IP address automatically, when the device starts
up, it shall wait for its assigned IP address from the DHCP server. If
it hasn’t obtained an IP address after one minute, it automatically
reverts to its default IP address (192.168.0.60.)
2. If the device is on a network that uses DHCP to assign network
addresses, and you need to ascertain its IP address, see IP Address
Determination, page 130.
3. Specifying the Alternate DNS Server address is optional.
