Chapter 8. Setup
79
Check a policy and enter the required information in the appropriate fields.

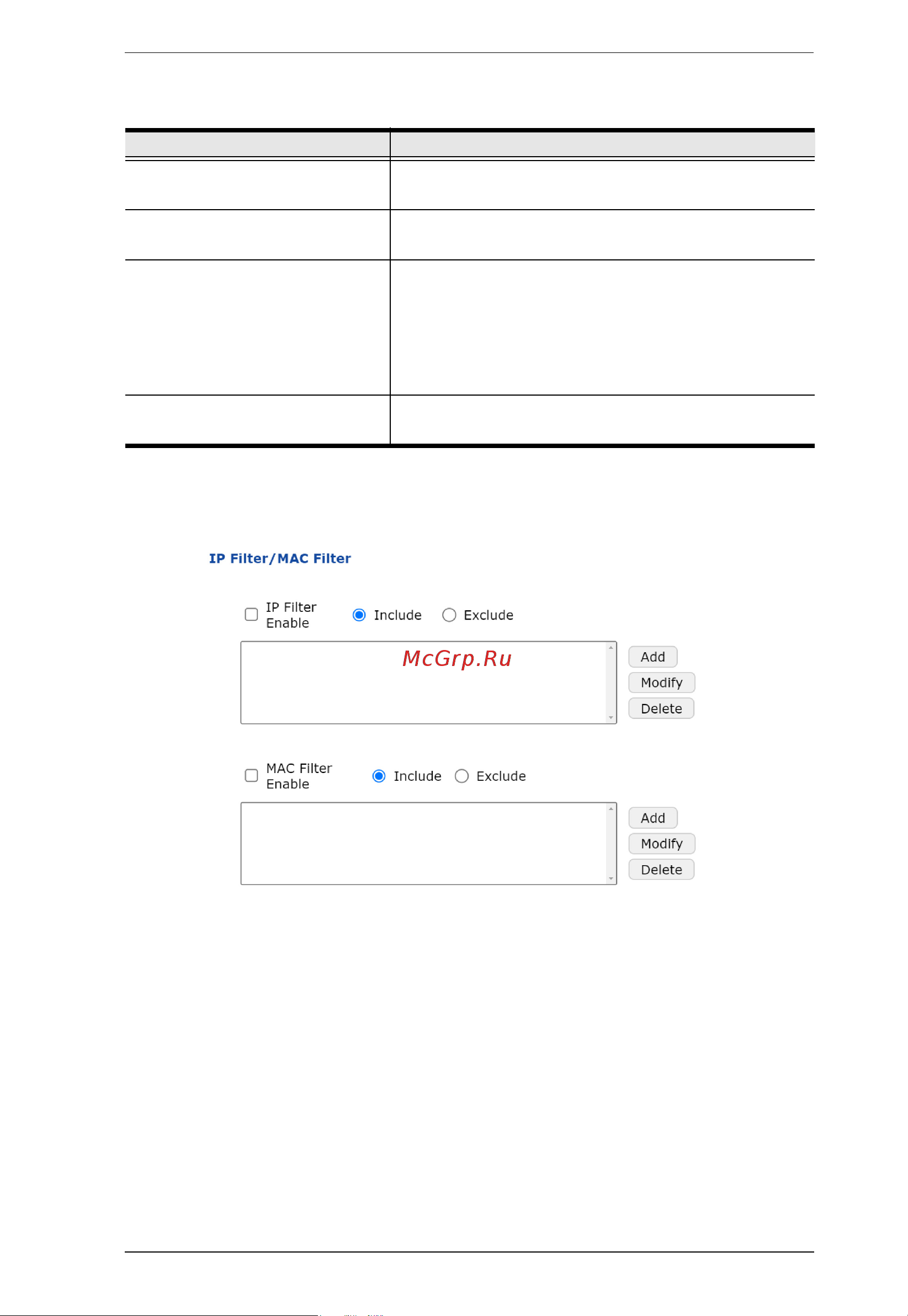

IP Filter / Mac Filter
IP Filter / MAC Filter
If any filters have been configured, they appear in the IP Filter and/or MAC
Filter list boxes.
IP and MAC Filters control access to the eco PDU based on the IP and/or MAC
addresses of the client computers attempting to connect. A maximum of 5 IP
filters and 5 MAC filters are allowed.
To enable IP and/or MAC filtering, check the IP Filter Enable and/or MAC
Filter Enable checkbox.
If the include button is checked, all addresses within the filter range are
allowed access, while all other addresses are denied access.
Item Description
Minimum Username Length Sets the minimum number of characters required for
a username. Acceptable values are from 1 to 16.
Minimum Password Length Sets the minimum number of characters required for
a password. Acceptable values are from 1 to 16.
Password Must Contain At Least Checking any of these items requires users to include
at least one of the specified items in their password.
Note: This policy does not affect existing user
accounts. Only new user accounts created after this
policy has been enabled, and users required to
change their passwords are affected.
Disable Duplicate Login Check this to prevent users from logging in with the
same account at the same time.
