eco PDU PG Series User Manual
78
If TLS Support is checked, the PDU is accessible on older computers or
older web browsers that support TLS1.0 or TLS1.1 data encryption.

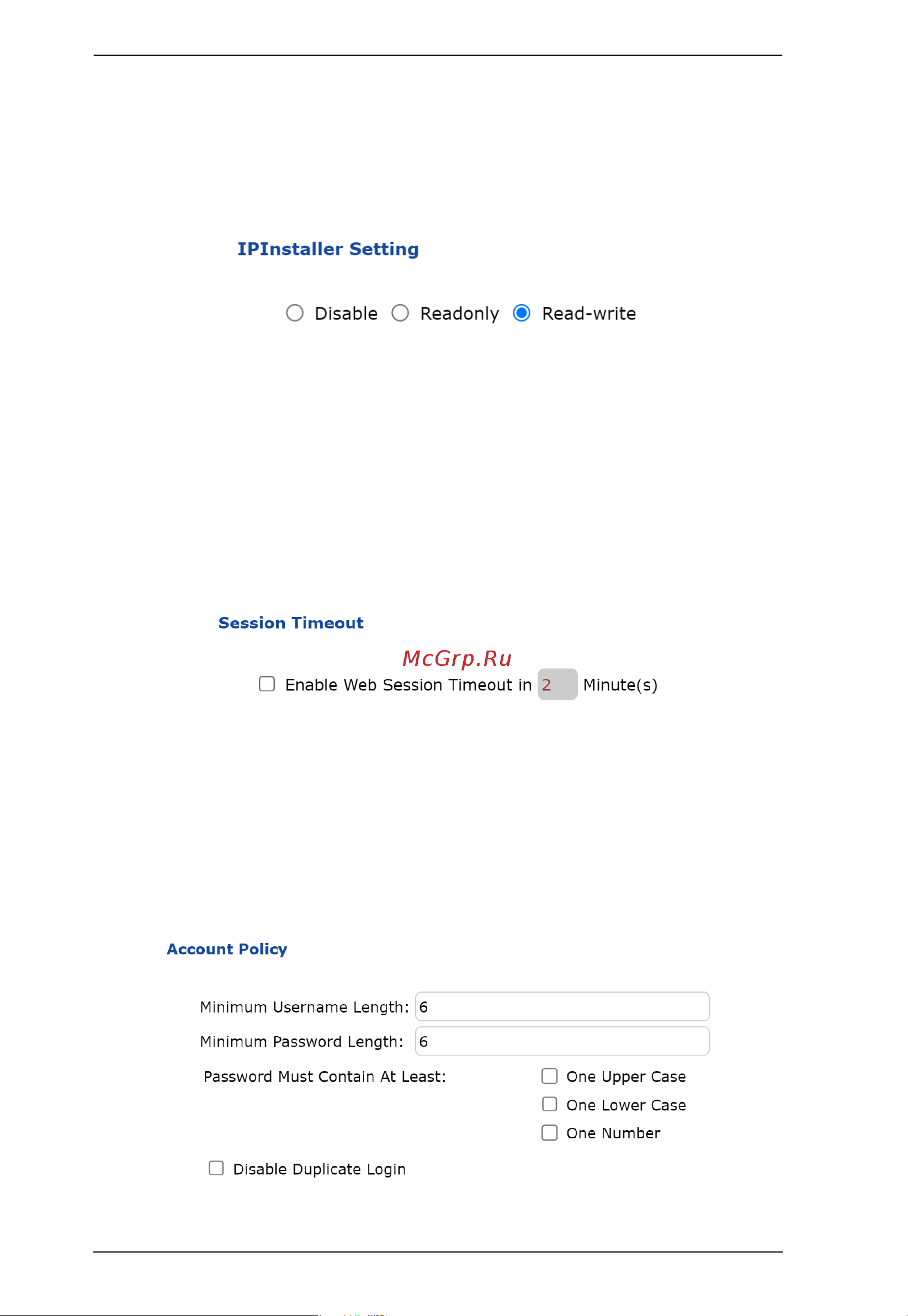

IPInstaller Setting
If Disable is checked, the IP address of the eco PDU cannot be found by
the IP Installer software.
If Readonly is checked, the IP address of the eco PDU can be found but
not configurable by the IP Installer software.
If Read-write is checked, the IP address of the eco PDU can be found and
configurable by the IP Installer software.
Session Timeout
If Enable Web Session Timeout in is checked, a user's web session will
logout due to inactivity after the number of Minute(s) entered (1–5) is
surpassed.
Account Policy
The Account Policy section governs policies in regard to the login usernames
and passwords.
