eco PDU PG Series User Manual
30
Rack Mount Lock Positions
When mounting onto a rack, make sure to use the correct screw positions, at
the rear of the unit, that correspond to your installation scenario, as explained
below:
T1: Use T1 to mount the eco PDU onto an ATEN rack with its power cord
extending toward the top of the rack.
B1: Use B1 to mount the eco PDU onto an ATEN rack with its power cord
extending toward the bottom of the rack.
T: Use T to mount the eco PDU onto a 3rd-party rack with its power cord
extending toward the top of the rack.
B: Use B to mount the eco PDU onto a 3rd-party rack with its power cord
extending toward the bottom of the rack.

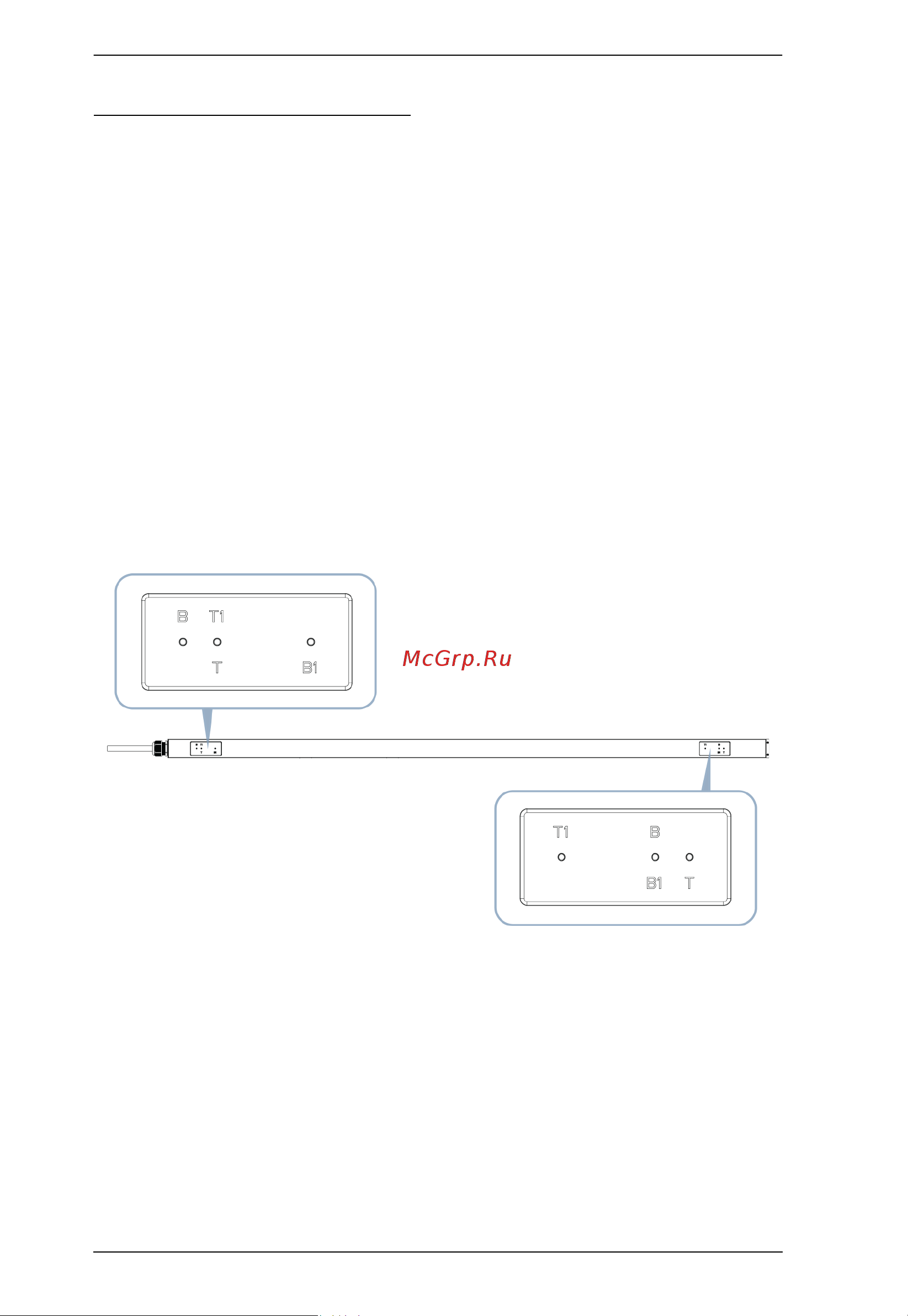

Please see the diagram below for the T1, B1, T, and B Rack Mount Lock
Positions.
