Chapter 1. Introduction

Components

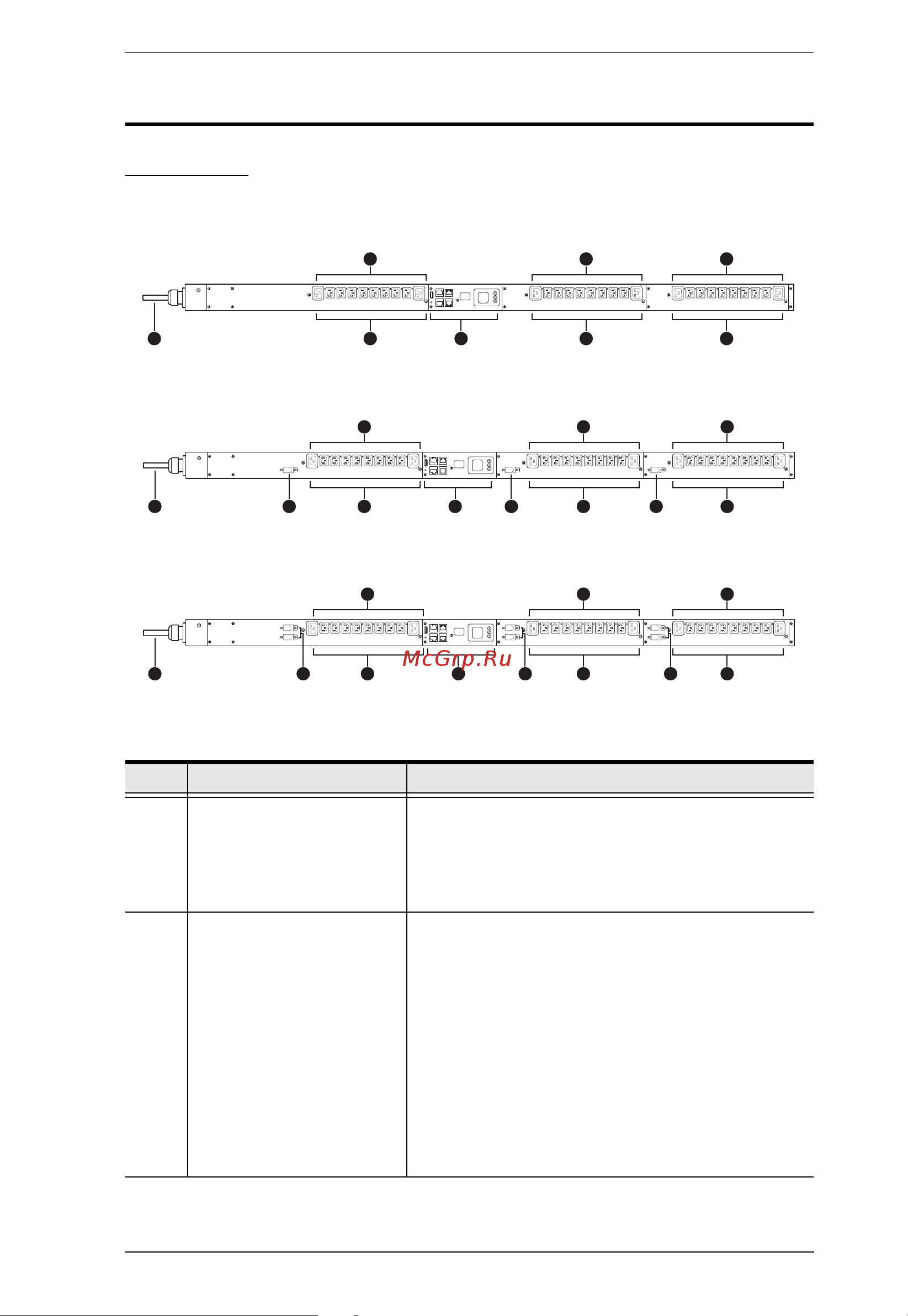

Front View

No. Item Description

1 power outlets* 30 in total (24 x IEC 60320 C13 + 6 x IEC 60320

C19)

Bank 1-1: Outlet 1–10: 8 x C13; 2 x C19

Bank 1-2: Outlet 11–20: 8 x C13; 2 x C19

Bank 1-3: Outlet 21–30: 8 x C13; 2 x C19

2 status panel The status panel contains:



USB Type-A port



COM + PON port



Readout Section and LEDs



Environmental Sensor Port



LAN Ports



Reset Switch

Full details of this section are provided on

page 26.

PG95230 / PG96230 / PG98230

PG95330B / PG95330B2 / PG96330B / PG96330B2 / PG98330B / PG98330B2

PG95330G / PG96330G / PG98330G

123 3 3
