113
Chapter 11
Telnet Commands
Remote Terminal Operations
With ATEN eco PDU you can log in remotely from a computer using Telnet
interface that allows system control through a high-end controller or PC.
Telnet
Telnet is a program that connects to a device over a network to provide text-
based management and control. Telnet provides some of the same management
features found in the eco PDU’s web GUI. You can reference the eco PDU’s
web GUI functions by downloading the user manual from our website
(www.aten.com). This can help you as you work your way through the text-
based commands used to control the eco PDU that are discussed in this guide.
Telnet is available on all eco PDUs installed with the latest firmware. You can
log in to the eco PDU via Telnet from any computer connected to the same
network.
Setup

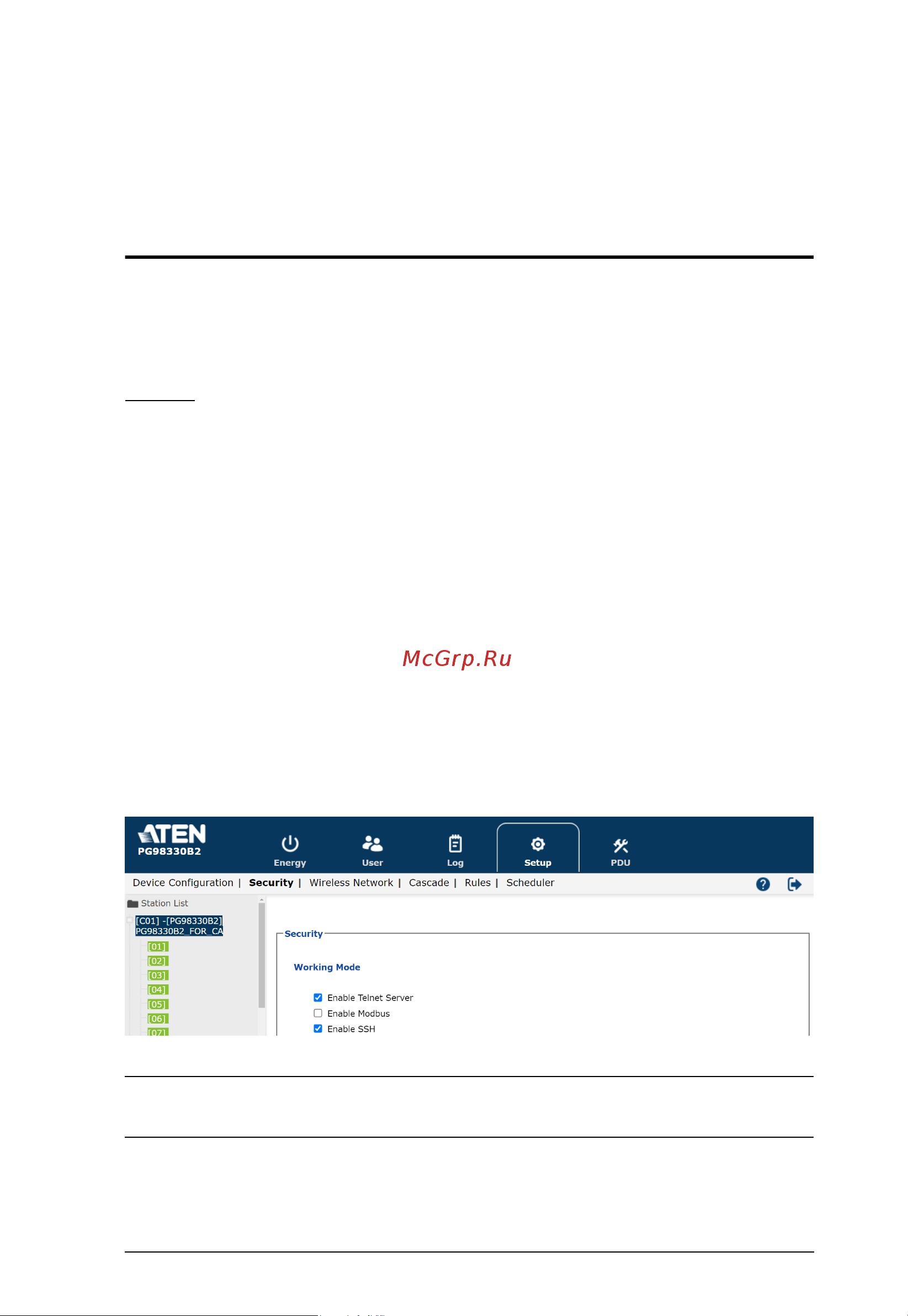

Log in to the eco PDU’s web GUI, go to the Setup tab and click Security from
the menu bar. Under Working Mode, check Enable Telnet Server and then
click Save at the bottom of the page.
Note: If the Enable Telnet Server option is not available, please download the
latest firmware from our website.
