Aten PG95330 [28/136] Please refer to the table and figure below for the rs 232 management and the list of commands

eco PDU PG Series User Manual

RS-232 Command List

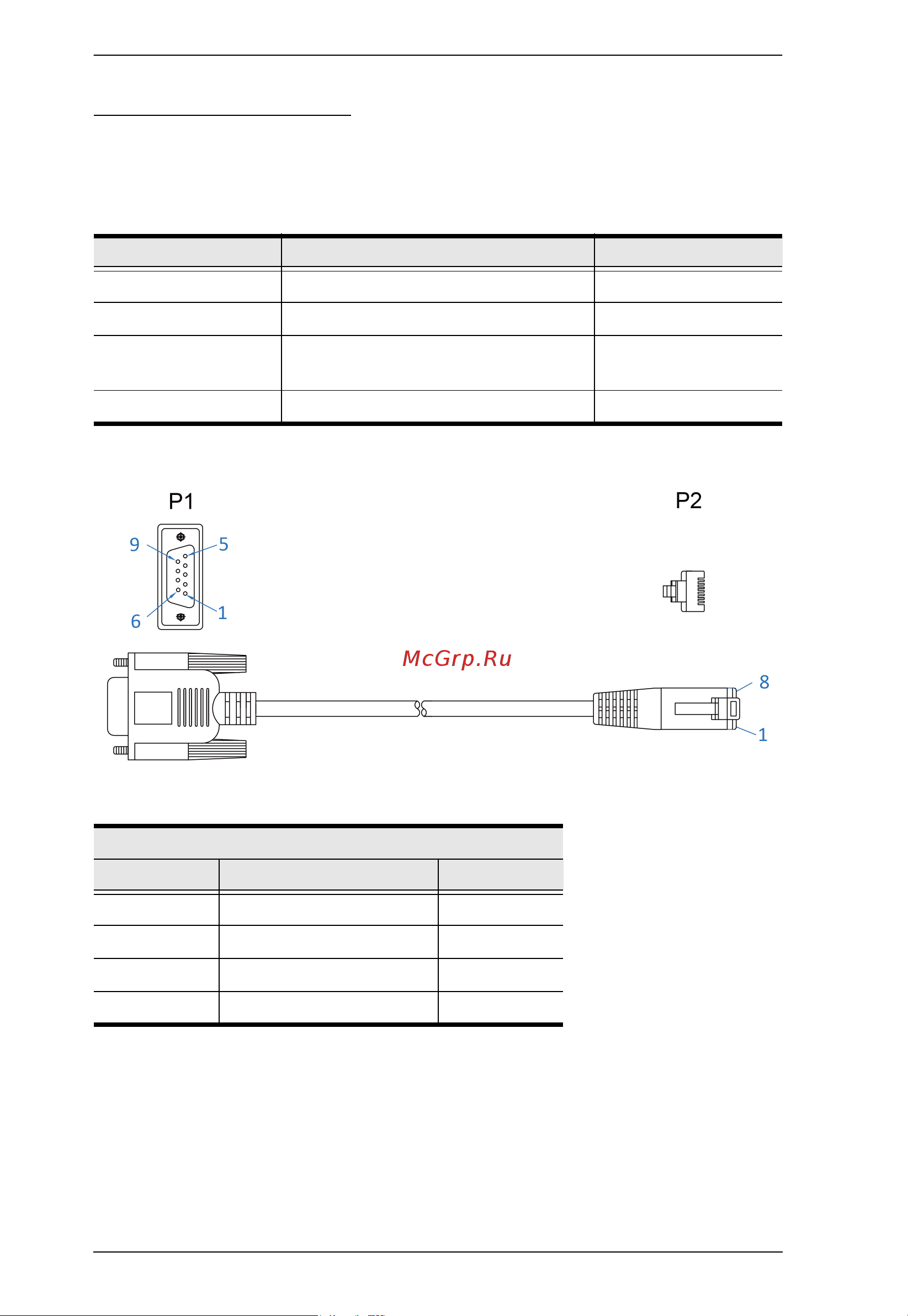

Please refer to the table and figure below for the RS-232 management and the

list of commands.

DB-9 CON RS-232

3 RS-232 RX 3

5 GND 5

RS-232 TX

RS-485 D+

1 RS-485 D- 8

Wire Table

P1 Color P2

3 Black 3

5 Brown 5

2 Red 6

1 Orange 8
