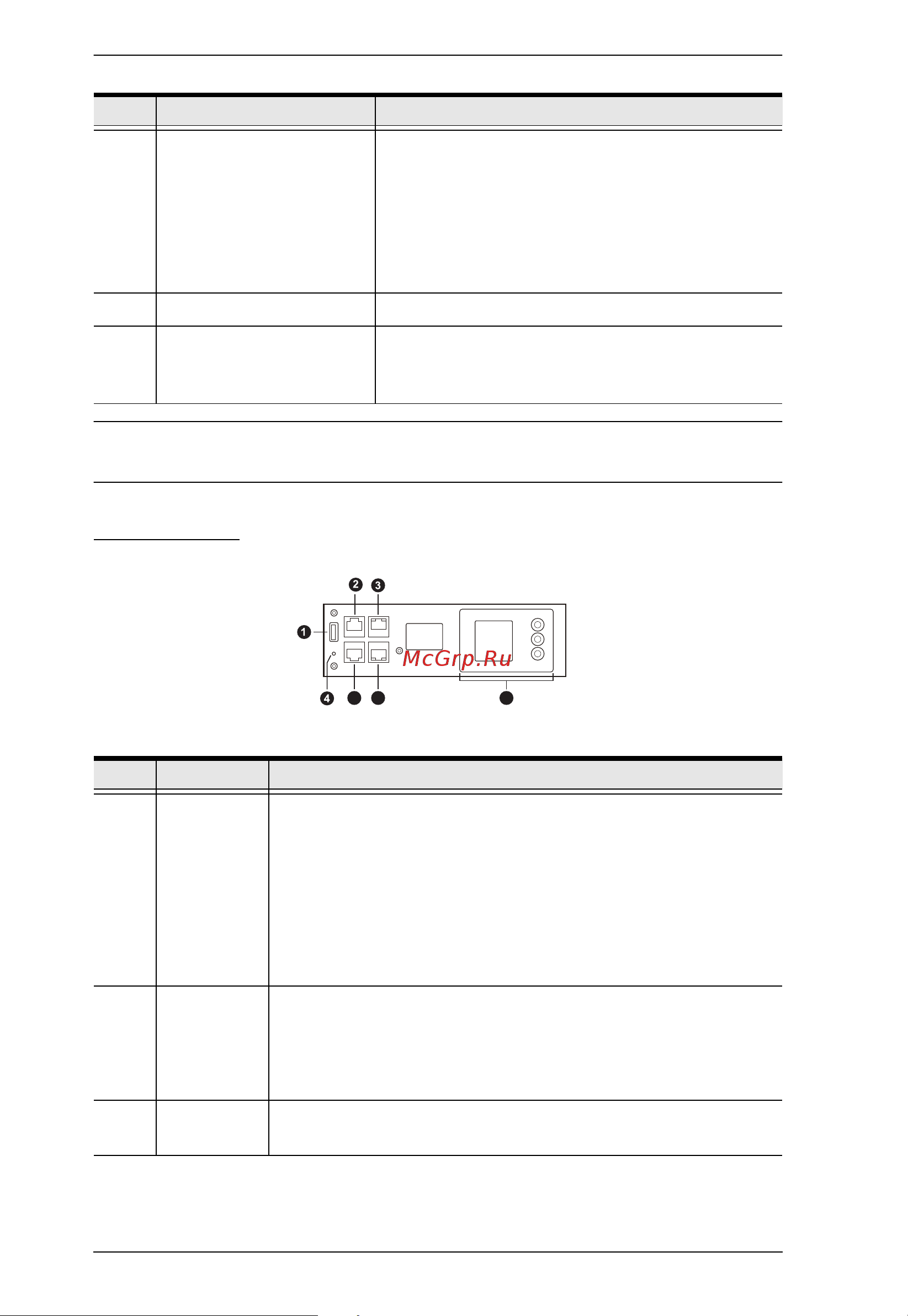

Note: Holes for ATEN Lok-U-Plug cable holders are located around the
outlets. See RS-232 Command List, page 34, for further information.
Status Panel
3 circuit breaker (not
applicable to PG95230 /
PG96230 / PG98230
series)
As a safety measure, if there is an overcurrent
situation in regards to the device’s power, the
circuit breakers will trip. Press the button to
recover normal operation.
Warning: See Resetting the Circuit Breaker,
page 128 for important information about resetting
a tripped circuit breaker.
4 power cord Connects the unit to an AC power source.
5 outlet status LEDs
(not applicable to PG95
series)
These LEDs indicate outlet status.
Lights green for powered on.
Off for powered off.
No. Item Description
1 USB Type-A
port
(firmware
upgrade /
log export)
Connects to a USB Type-A storage device for firmware upgrade
or log export.
USB firmware upgrade:
The eco PDUs support quickly firmware upgrade through
USB port.
USB setting & log file restored:
Users can export the setting and the log file through USB.
2 COM + PON
port
COM: Connects to a hardware or software controller for
remote control.
PON: Connects to KN series for cascading up to 16 PG
PDUs.
3 LAN 1 (10/
100/1000M)
The cable that connects the unit to the Internet, LAN, WAN, or to
cascade up to 64 PG PDUs plugs in here.
No. Item Description
5 6 7
