eco PDU PG Series User Manual
50
On / Off / Reboot
You can manually turn the device on or off from this page by clicking the
ON / OFF buttons. To Reboot the device, enable the Reboot checkbox and
click OFF (reboot only works on the eco PDUs with PDU Outlet Status
ON).
Note: PG95 series does not support On / Off / Reboot functions.

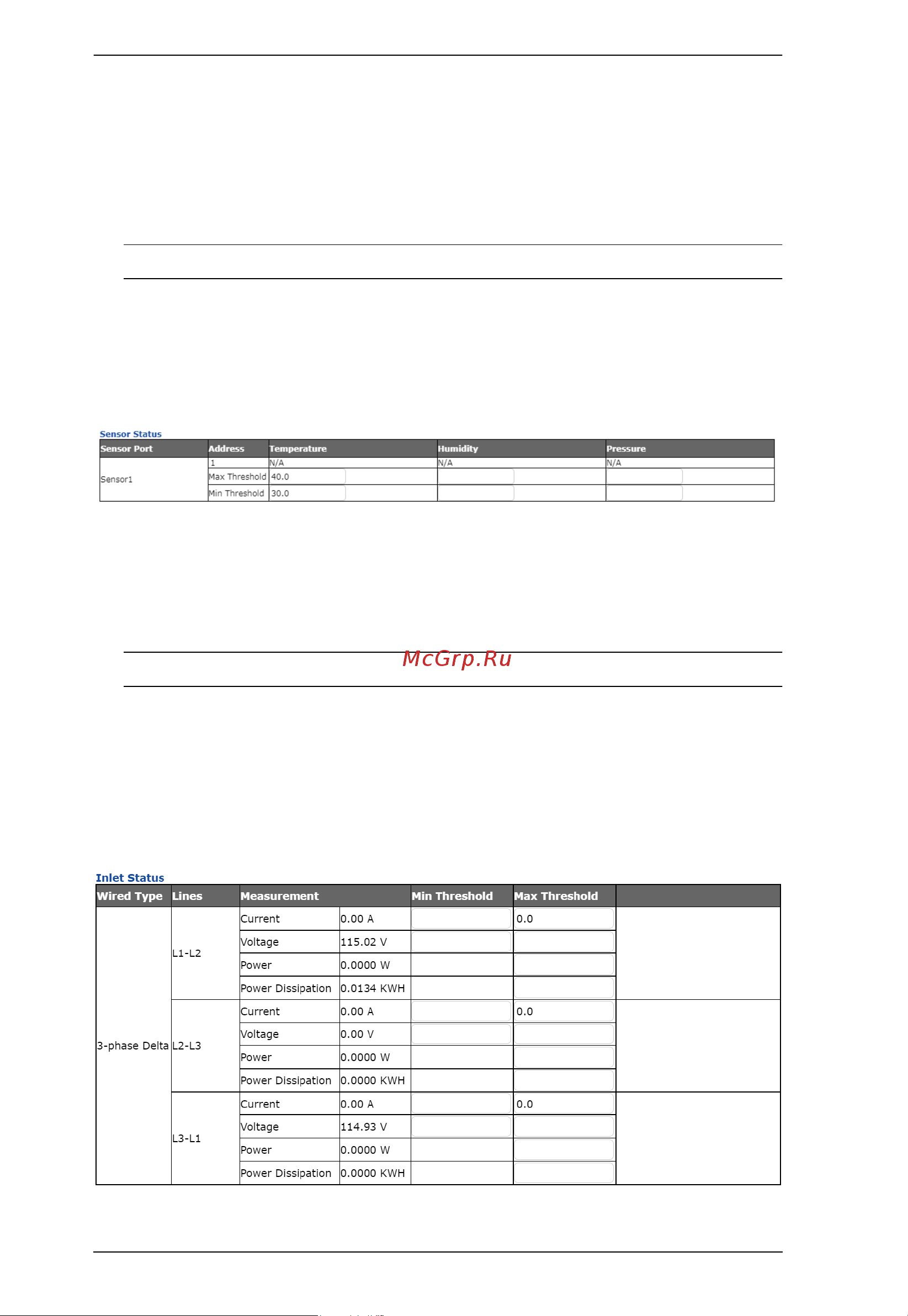

Sensor Status
All eco PDU models support sensor monitoring. The Sensor Status section
allows you to set up a sensor management configuration for the PDU device:
Sensor 1
If you have sensors installed in your installation, use these fields to set the
maximum and minimum threshold settings for Temperature, Humidity,
and/or Pressure.
Note: Sensors are optional accessories. Check with your dealer for details.
Inlet Status
All eco PDU models support Inlet level monitoring. The Inlet Status section
allows you to set up a power management configuration for each of the
individual inlets:
