Chapter 1. Introduction
5

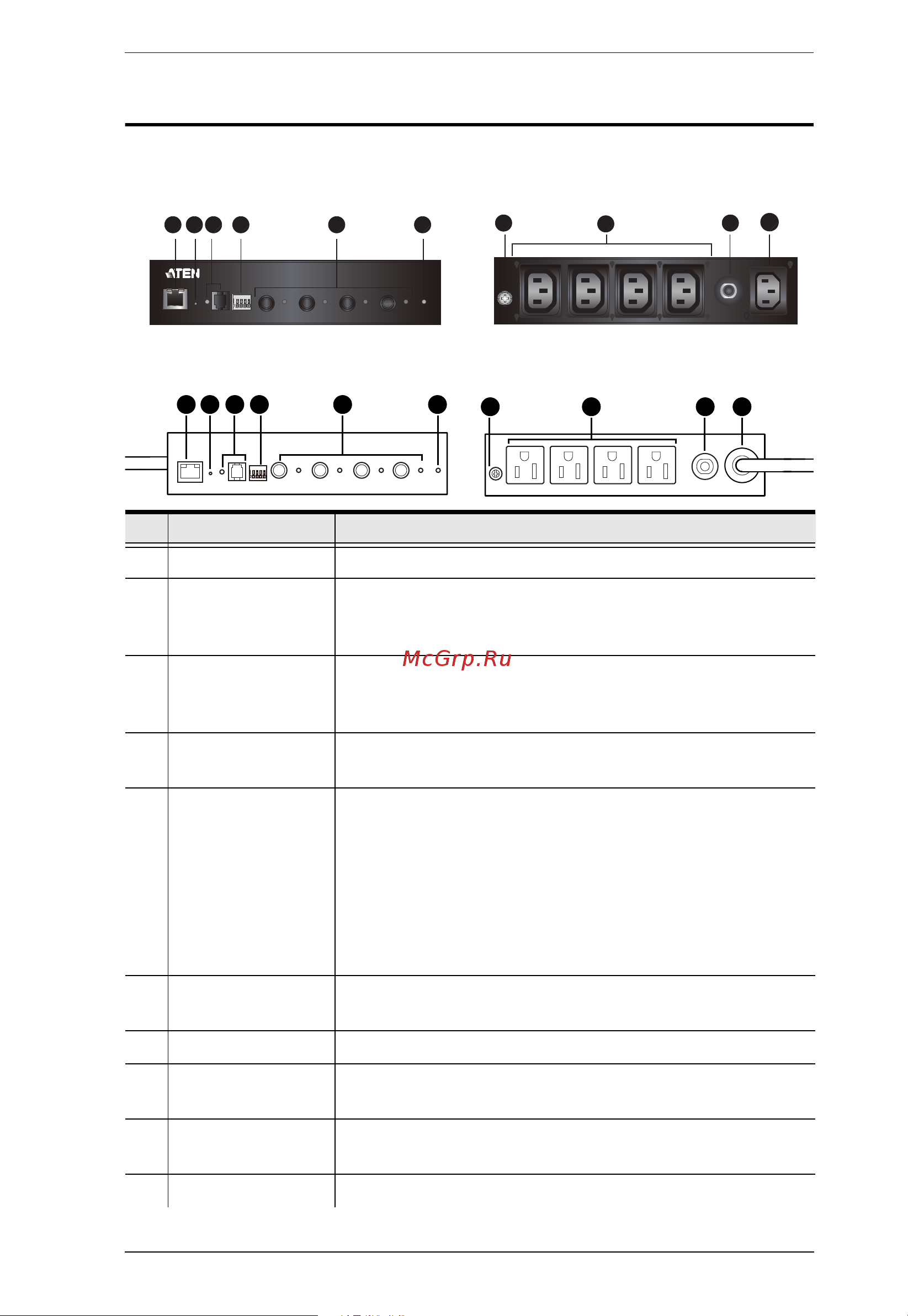

Components
No. Component Description
1 LAN port Connects the unit to the Internet via an Ethernet cable.
2 reset button
(recessed)
Pin this button with a paper clip or ballpoint pen to reboot
the unit. Pin and hold the button for more than 10 seconds
to reset the device IP.
3 sensor port & LED The external sensor plug into this RJ-11 port, and the
sensor LED lights orange when a sensor is connected to the
sensor port.
4 dry-contact port The external door sensor plug into this door sensor dry -
contact port.
5 power control
buttons & LEDs
Each power control button (1 to 4), controls the power
status of its corresponding AC output port as follow:
Pressing and holding the button in for more than 3
seconds switches the power to its corresponding port
on of off.
The LEDs light green to indicate that there is electricity
going to its corresponding outlet.
6 device power LED The device power LED lights orange to indicate the unit is
powered up and ready to operate.
7 grounding terminal Connects to a suitable grounding object.
8 power outlet
sockets
Electrical appliances plug in here.
9 circuit breaker Protects the PDU from damage caused by excess current
from an overload or short circuit.
10 power inlet The power cord of the package content plugs in here.
PE4104G (Front)
1 2 3 4 5 6
7
8
9
PE4104G (Rear)
10
PE4104AJ (Front)
PE4104AJ (Rear)
1 2 3 4 5 6
7 8 9 11
