Chapter 2. Hardware Setup
9
Installation

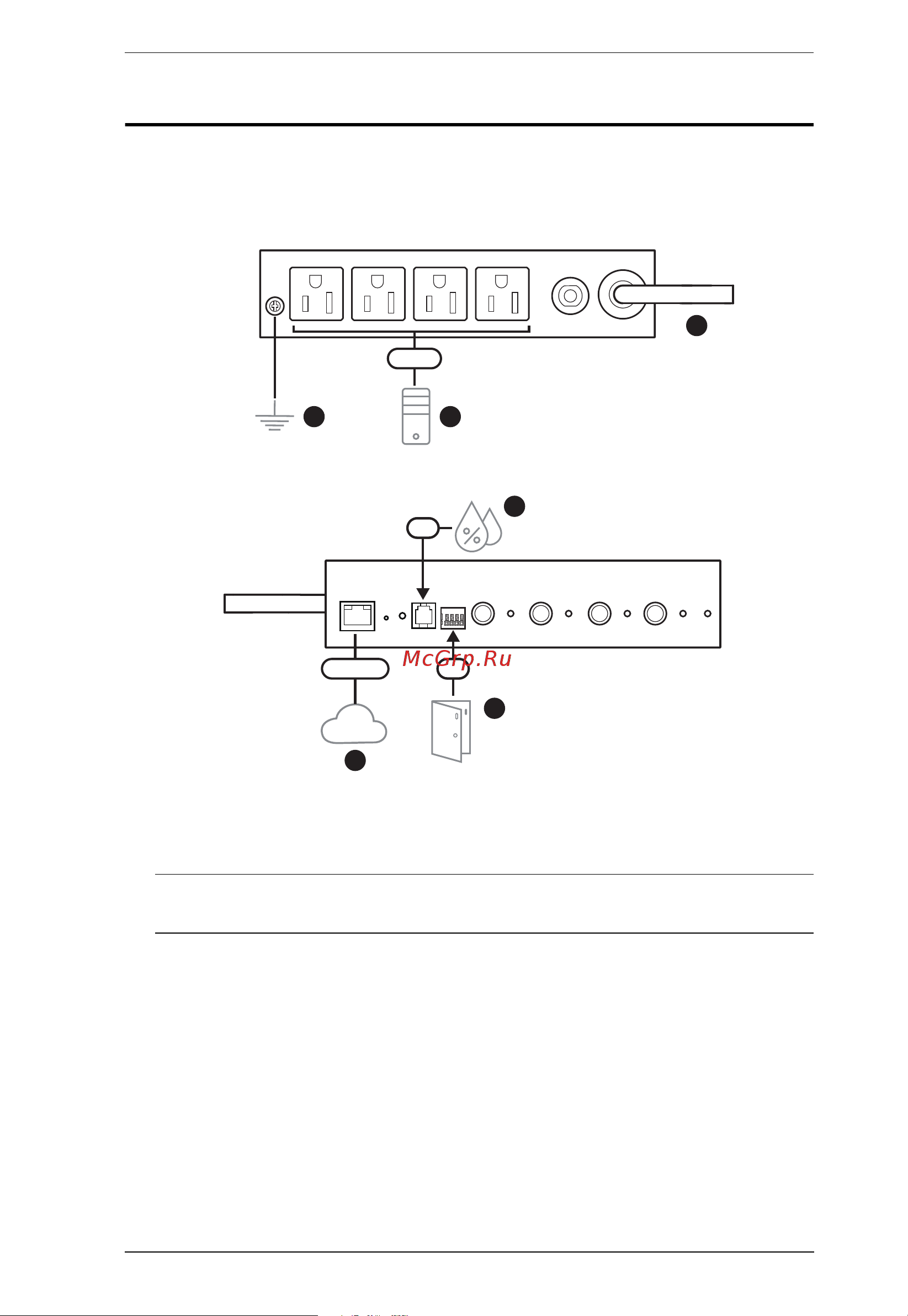

To set up your IP Control Box installation, refer to the installation diagram and
the procedure below. The PE4104AJ is used as an example to illustrate the
installation.
1. Ground the IP Control Box by connecting one end of a grounding wire to
the grounding terminal and the other end to a suitable grounded object.
Note: Do not omit this step. Proper grounding helps prevent damage to the
unit from power surges or static electricity.
2. For each device you want to connect, connect its power cable to any
available outlet on the unit. Optionally, use ATEN Lok-U-Plug cable
holders to secure the cables. For details, see Securing the Cable, page 10.
3. Connect an Internet-enabled LAN cable into the unit’s LAN port.
4. (Optional) To use a temperature sensor, humidity sensor, or pressure
sensor, connect it to the RJ-11 sensor port.
5. (Optional) To use a door sensor or a leak detector, connect it to the dry-
contact port.
4
6
1
3
5
2
Power
DIDI
PC
Network
Ethernet
DIDI
e.g. Door Sensor
e.g. Humidity Sensor
