Chapter 4. Browser Operation
45
After the CA sends you the certificate and private encryption key, save
them to a convenient location on your computer.
Importing the Private Certificate
To import the private certificate, do the following:
1. Click Browse to the right of Private Key; browse to where your private
encryption key file is located; and select it.
2. Click Browse to the right of Certificate; browse to where your
certificate file is located; and select it.
3. Click Upload to complete the procedure.
Note: 1. Clicking Restore Default returns the device to using the default
ATEN certificate.
2. Both the private encryption key and the signed certificate must be
imported at the same time.
When you have finished making your settings on this page, click Save.

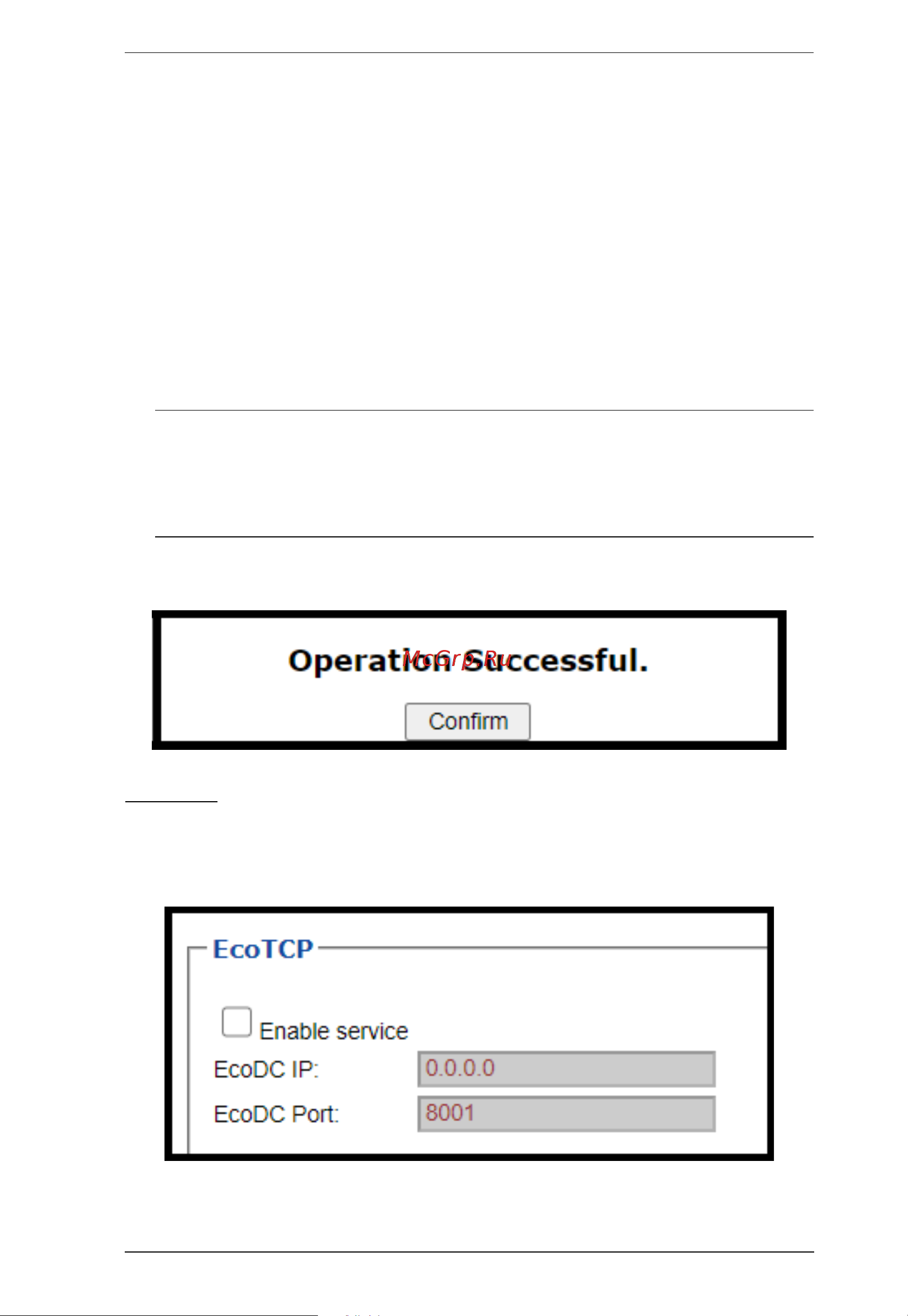

EcoTCP
The EcoTCP page enables the communication between ecoDC software and
the IP Control Box. To enable the EcoTCP, check the Enable service checkbox
and specify the EcoDC IP and the EcoDC Port number.
