7
Chapter 2
Hardware Setup
Rack Mounting
The IP Control Box can be mounted vertically on the outside of the rack and a
few options are available.
Desktop Mount
If you wish to keep your unit on a desktop, attach the foot pads (in the package
content) and place the unit on any appropriate level surface that can safely
support its weight plug the weight of its attached cables.
Using the Rack Mount Ears
The following procedure uses PE4104G as an example to illustrate the
installation.
1. Decide where you would rack mount the unit and choose the place you
would attach the rack mount ear (Position 1, 2, 3, or 4). As an example, we
will choose to attach the rack mount ear shown below (position 3).
Important safety information regarding the placement of this device is
provided on page 63. Please review it before proceeding.

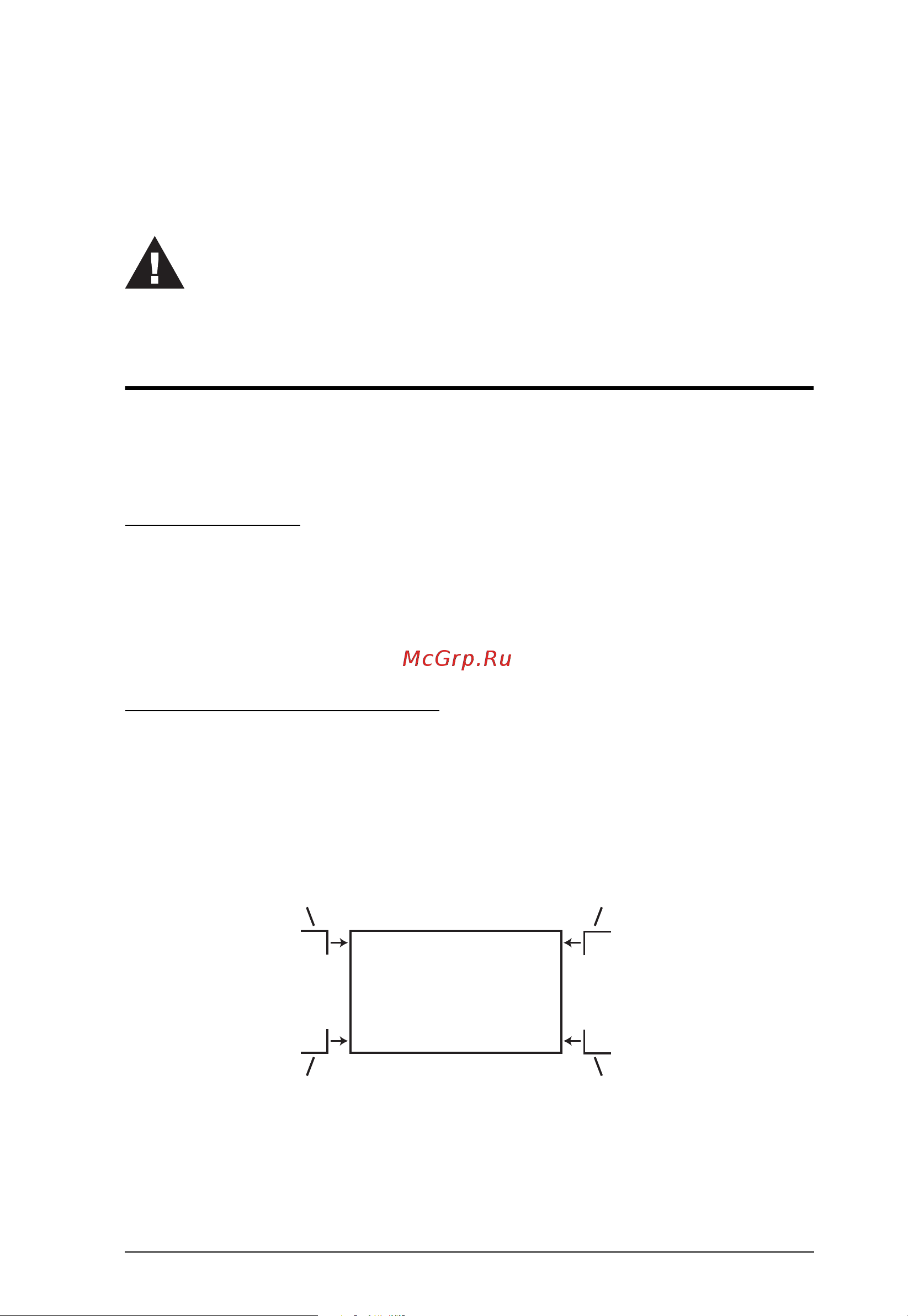

1 2
3 4
Unit
Front
Rear
Rack Mount Ears Rack Mount Ears
Rack Mount Ears Rack Mount Ears
