Aten PE4104G [56/84] Scheduler

IP Control Box User Manual

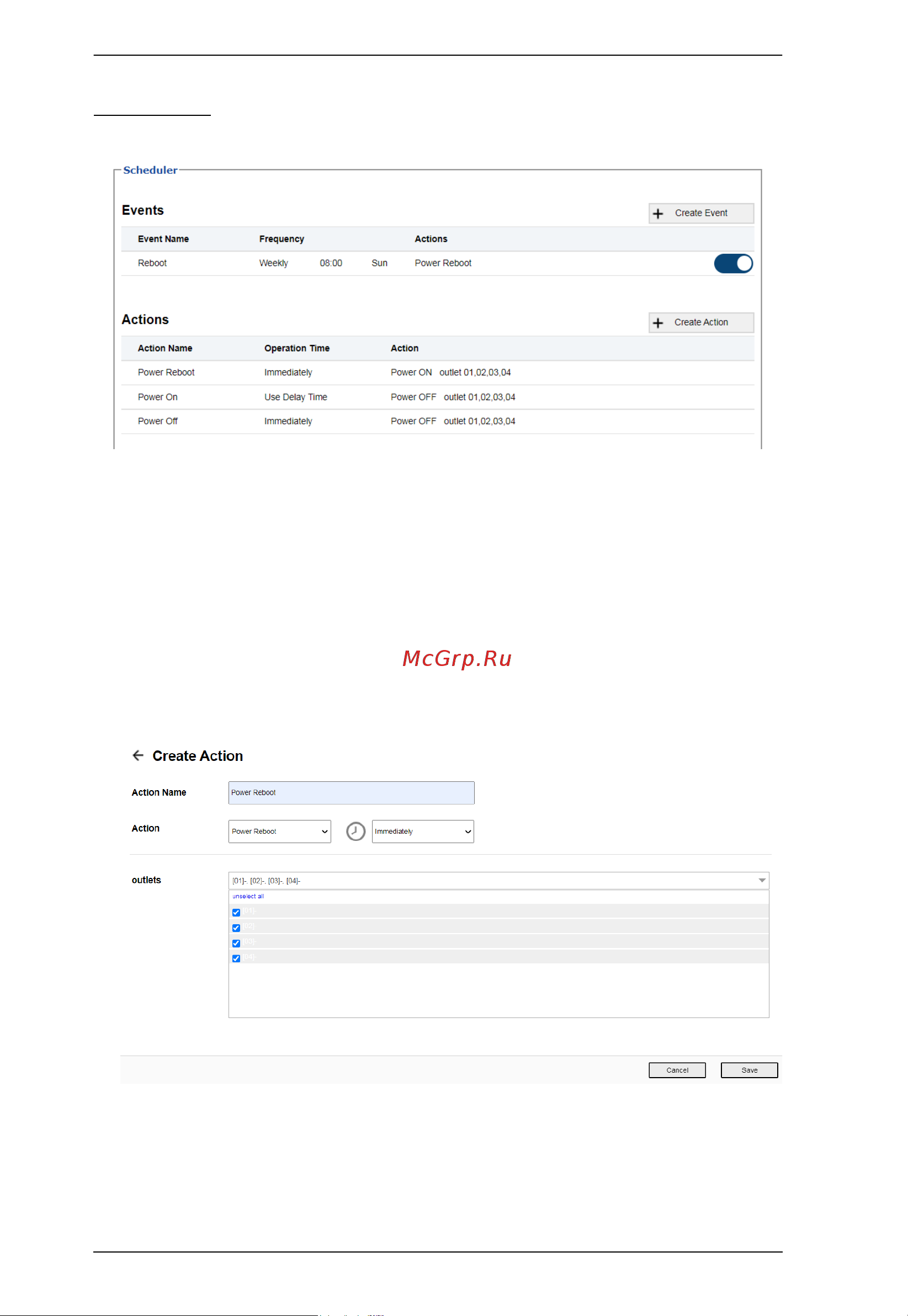

Scheduler

Use the Scheduler page to power on, power off, or reboot the IP Control Box.

To create an event, follow the steps below.

1. Go to Setup > Scheduler.

2. Create one or more power-on, power-off, and/or reboot actions. These

actions will be selectable when configuring an event.

a) Click +Create Action.

b) In the pop-up screen, name the action, and use the drop-down lists to

configure the action and the target outlet(s).
