Chapter 4. Browser Operation

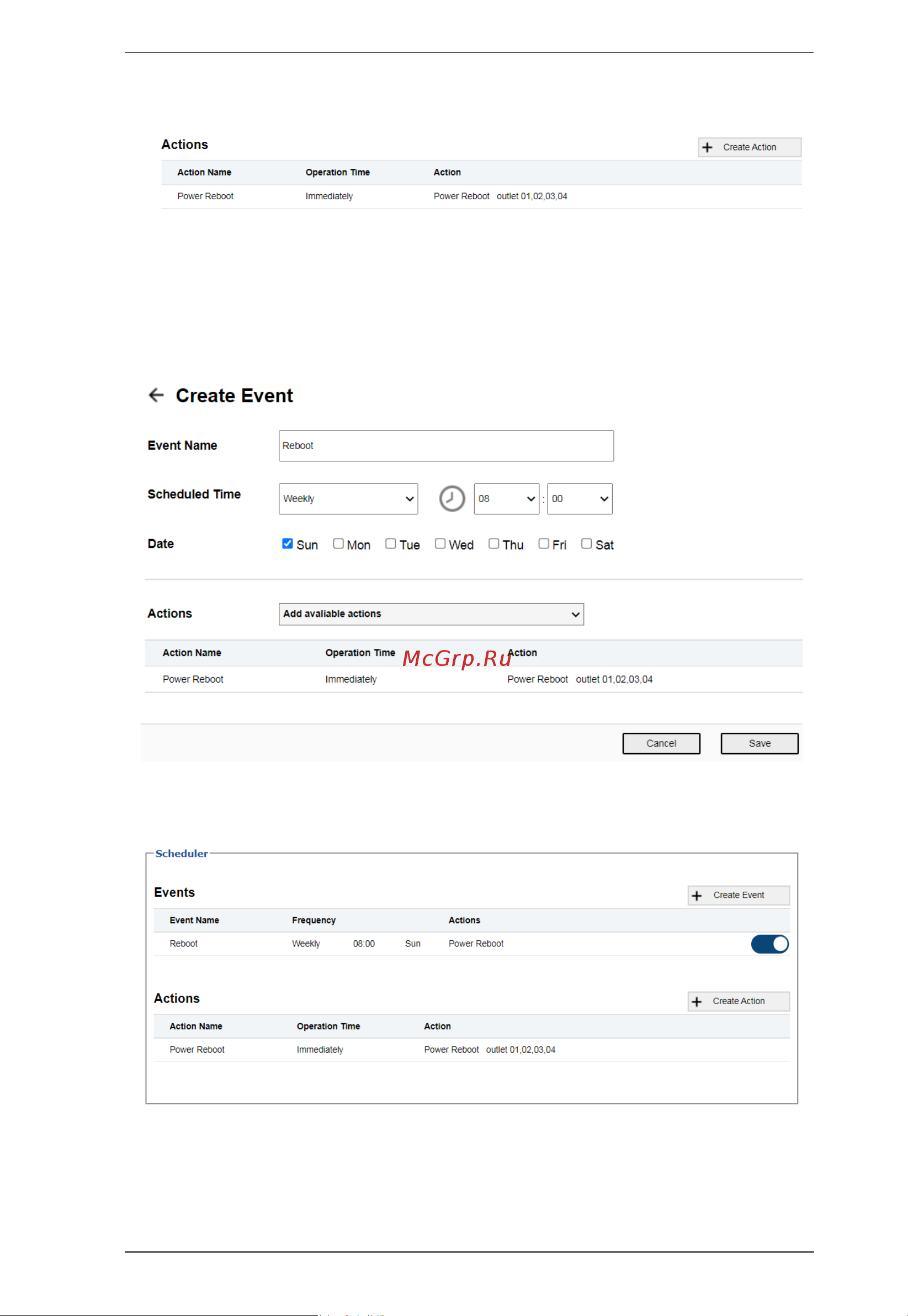

c) Click Save. The action is added to the list.

3. Create an event.

a) Click +Create Event.

b) In the pop-up screen, name the event, and then configure the schedule

and action as needed.

c) Click Save. The event is added to the event list. Use the toggle button to

enable/disable created events.
