Chapter 4. Browser Operation
17

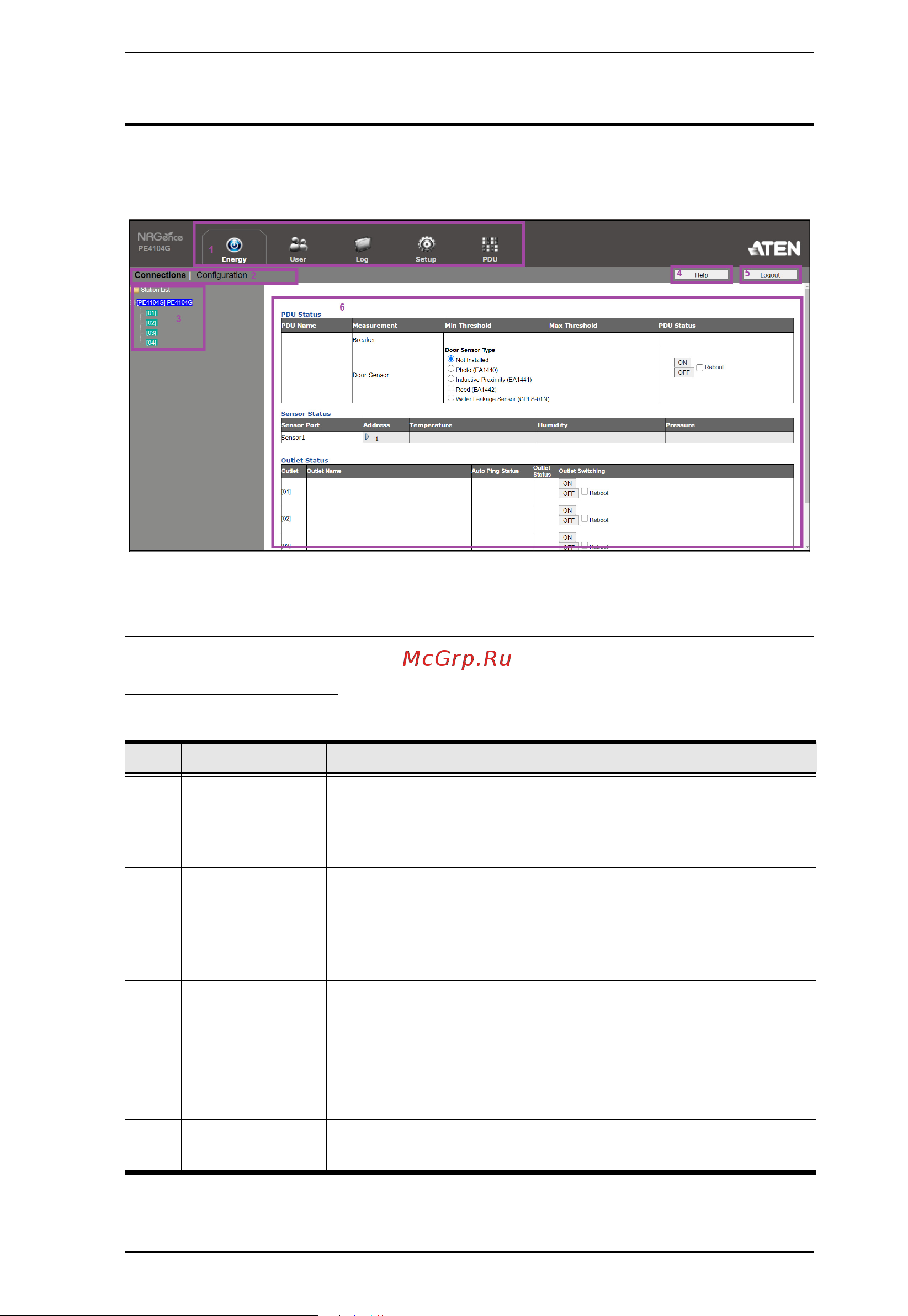

The eco PDU Main Page
After you have successfully logged in, the IP Control Box Main Page comes
up with the Energy Connections page displayed:
Note: The screen depicts an administrator’s page. Depending on a user’s type
and permissions, not all of these elements appear.
Page Components
The web page screen components are described in the table, below:
No. Item Description
1 Tab Bar The tab bar contains the IP Control Box’s main operation
categories. The items that appear in the tab bar are
determined by the user’s type, and the authorization options
that were selected when the user’s account was created.
2 Menu Bar The menu bar contains operational sub-categories that
pertain to the item selected in the tab bar. The items that
appear in the menu bar are determined by the user’s type,
and the authorization options that were selected when the
user’s account was created.
3 Sidebar The Sidebar provides a tree view listing of outlets that relate
to the various tab bar and menu bar selections.
4 Help Connects to on-line help at the ATEN website for the device’s
configuration and operation.
5 Logout Click this button to log out of your IP Control Box session.
6 Interactive
Display Panel
This is your main work area. The screens that appear reflect
your menu choices and Sidebar node selection.
