Aten PE4104G [23/84] Network configuration

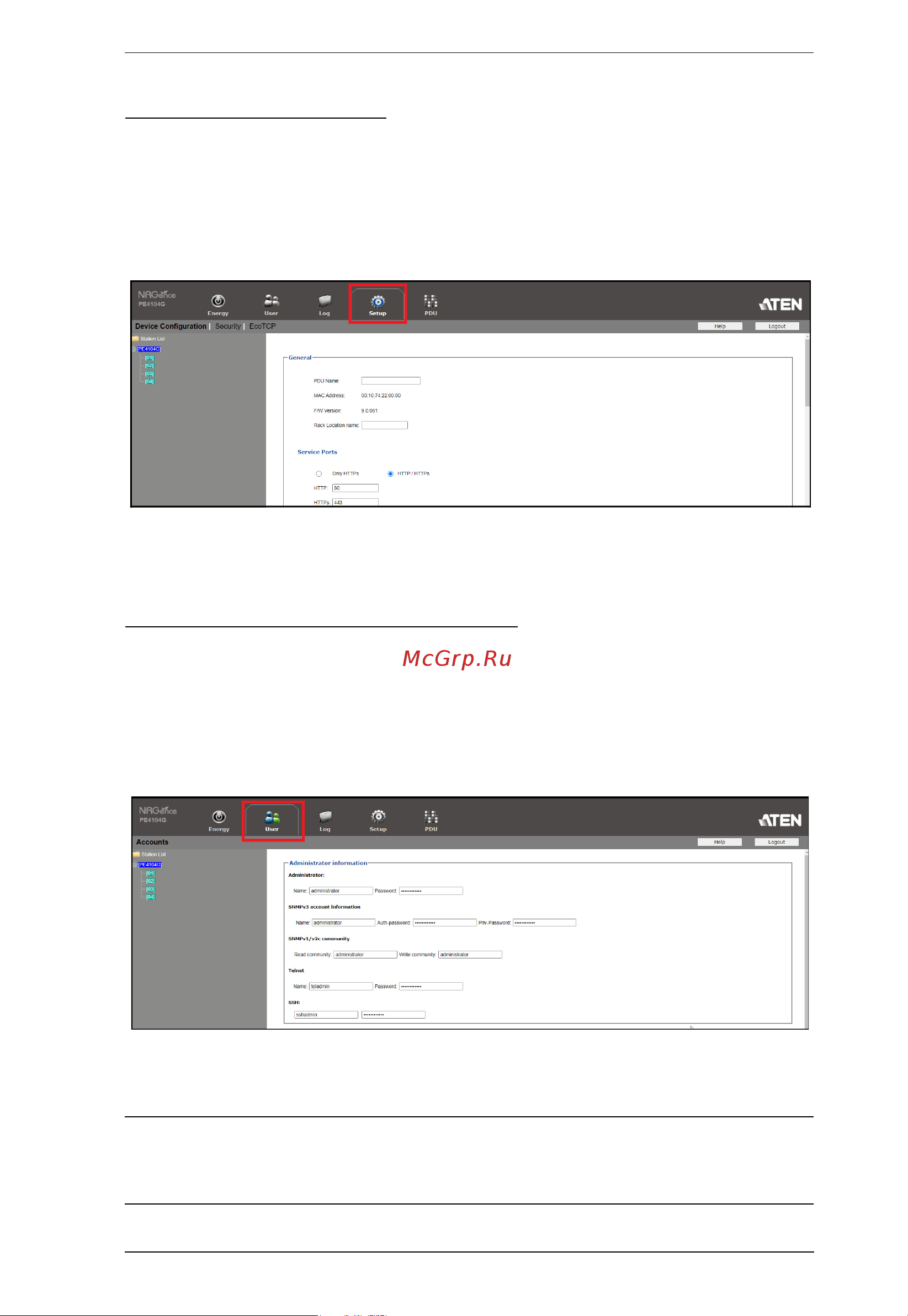

![Aten PE4104G [23/84] Network configuration](/views2/1978081/page23/bg17.png)
Chapter 3. Basic Operation and First Time Setup
13
Network Configuration
To configure the network settings, do the following:
1. Click the Setup tab.
2. The interface displays the Device Configuration page. A screen similar to
the one below appears:
3. Fill in the fields according to the information provided under Device
Configuration, page 30.
Changing the Administrator Login
To change the default administrator username and password, do the following:
1. Click the User tab.
The Accounts page has a detailed list of users—with more information
about them—in the large central panel:
2. In the Administrator Information section, reset the name and password
fields to something unique, then click Save (at the bottom of the page.)
Note: If you forget the administrator’s name or password, short the mainboard
jumper to restore the default administrator account. See ATEN Standard
Warranty Policy, page 74 in the Appendix for full details.
