IP Control Box User Manual

Backup/Restore

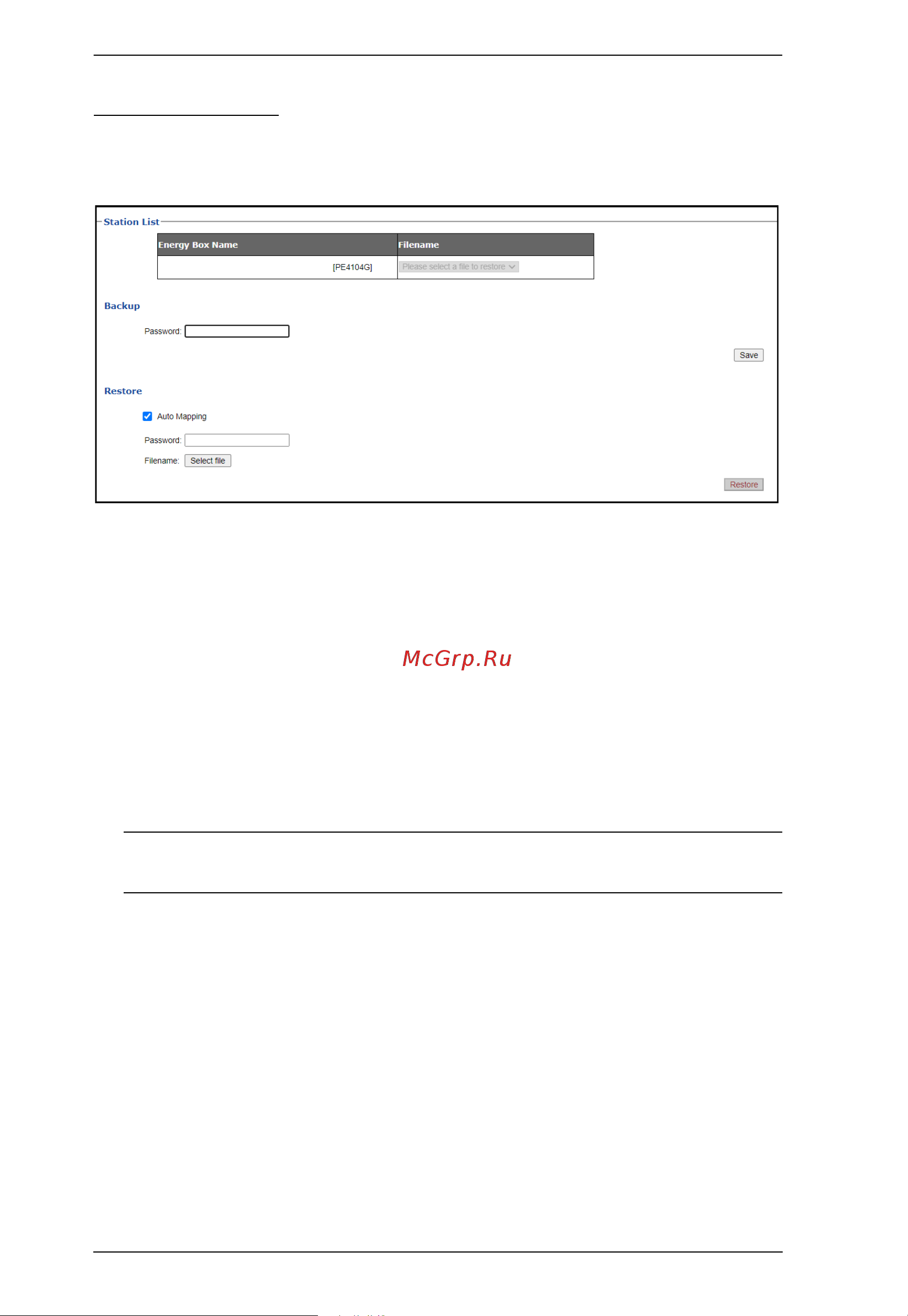

Selecting Backup/Restore on the menu bar gives you the ability to back up the

switch’s configuration and user profile information:

Station List

Station List lists the IP Control Box only.

Backup

To backup the device’s settings do the following:

1. In the Password field, key in a password for the file.

Note: Entering a password is optional. If you do enter a password, make a

note of it, since you will need it to be able to restore the file.

2. Click Save.

3. When the browser asks what you want to do with the file, select Save to

disk; then save it in a convenient location.
