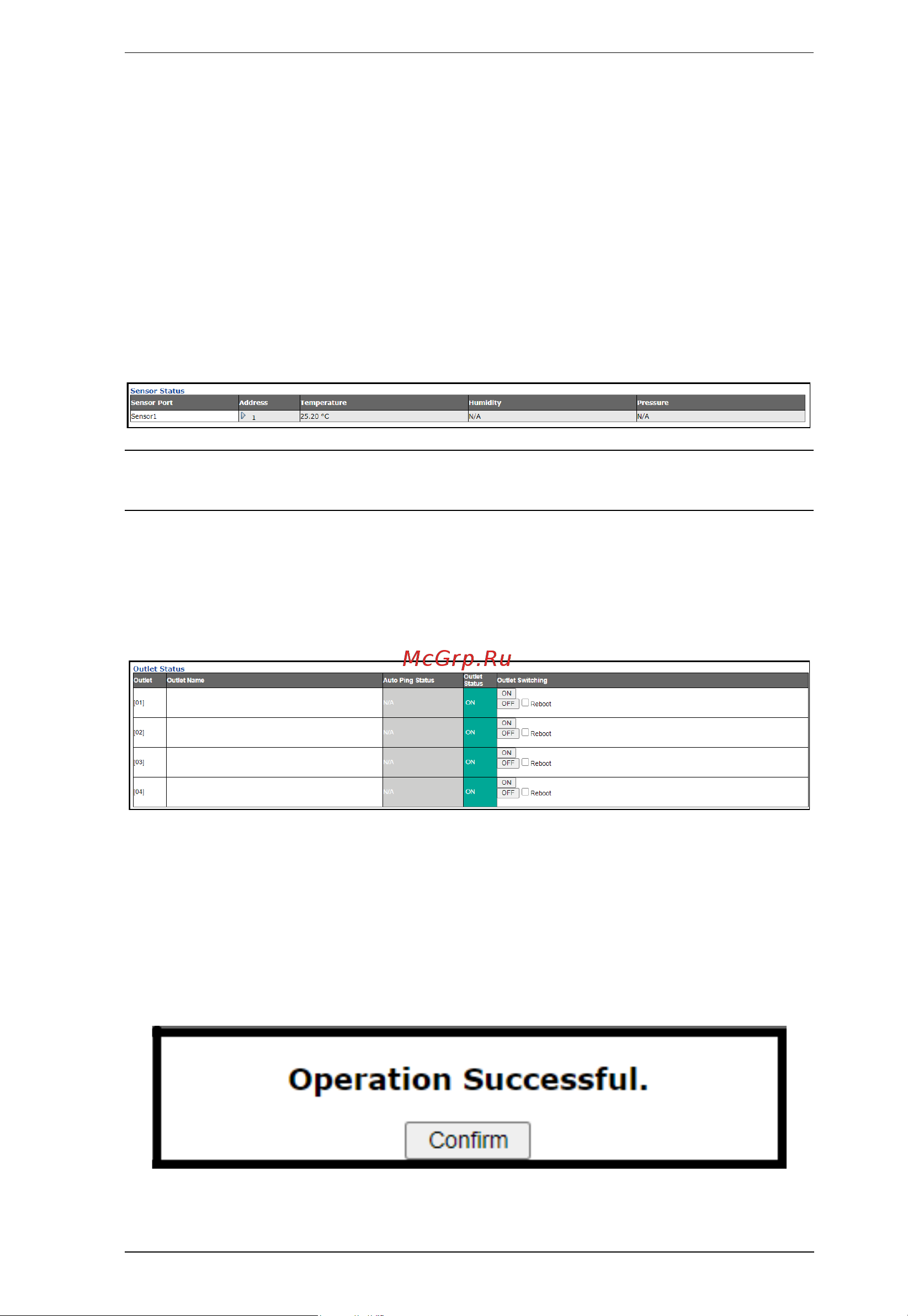

Chapter 4. Browser Operation
19
On / Off / Reboot
You can manually turn the device On and Off from this page by clicking
the radio buttons. To Reboot the device, enable the Reboot checkbox and
click on Save (located at the bottom of the page).
Sensor Status
If you have sensors installed in your installation, use these fields to set the
maximum, minimum and fluctuation threshold settings for Temperature,
Humidity, and Differential Pressure.
Note: Sensors are optional accessories. Check with your dealer for
information about eco DC software.
Outlet Status
The IP Control Box supports on, off and reboot control from the outlet status
column for each outlet.
On / Off / Reboot
You can manually turn the outlet On and Off from this page by clicking the
radio buttons. To Reboot the outlet, enable the Reboot checkbox and click
on Save (located at the bottom of the page).
When you have finished making your configuration settings, click Save.
