Aten PE4104G [30/84] Configuration

IP Control Box User Manual

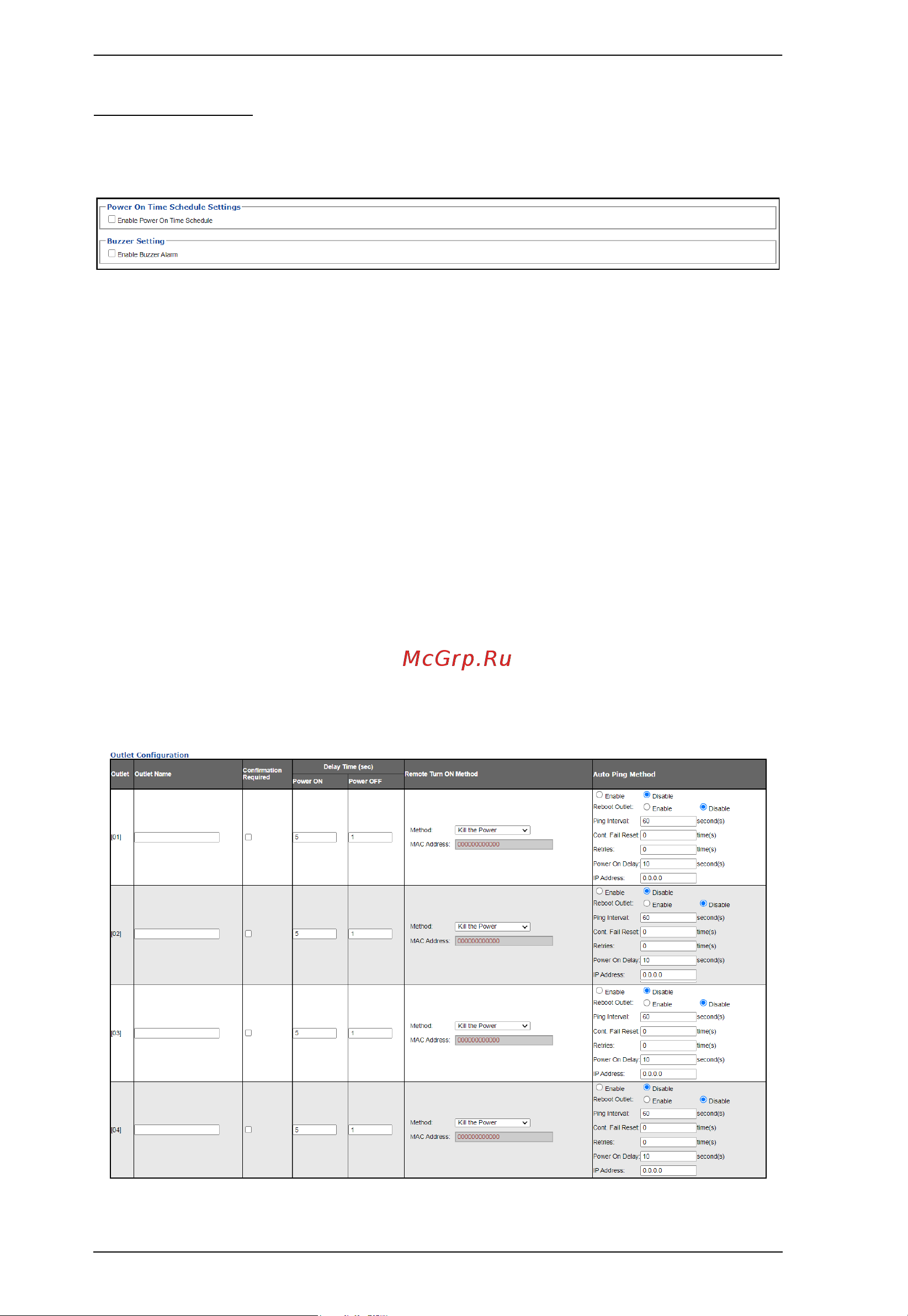

Configuration

The Configuration page is used to configure the settings of the IP Control Box

at the individual power outlet level.

Power On Time Schedule Settings

Check the Enable Power On Time Schedule box to use the Power ON

Delay setting to set the amount of time the eco PDU waits before powering

on an outlet. See Power ON Delay in the table on the next page.

Buzzer Setting

Checking the Enable Buzzer Alarm box sounds an alarm and sends

SNMP trap or e-mail alerts when a threshold setting exceeds the minimum

or maximum setting.

Outlet Configuration

The Outlet Configuration section lets you set the power management settings

for each outlet on the PDU.
