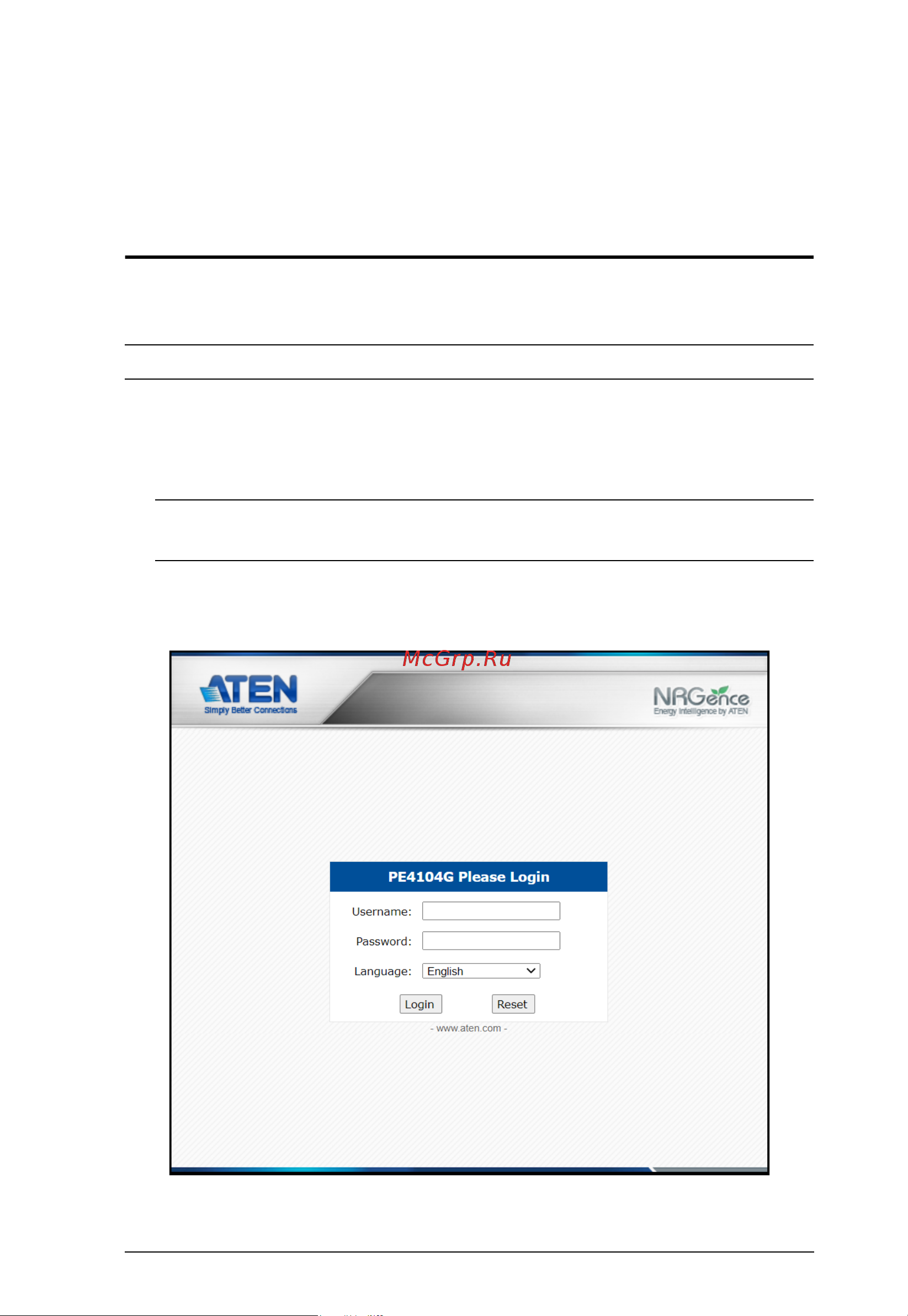

Aten PE4104G [25/84] Chapter 4

Chapter 4

Browser Operation

Logging In

The IP Control Box can be accessed via a supported Internet browser from any

platform.

Note: Browsers must support SSL 2048 and 4096 bit encryption.

To access the IP Control Box do the following:

1. Open your browser and specify the IP address of the IP Control Box you

want to access in the browser's URL location bar.

Note: You can get the IP address from the administrator, or see IP Address

Determination, page 67, for information about setting it up yourself.

2. If a Security Alert dialog box appears, accept the certificate—it can be

trusted. The Login page appears:
