Aten PE4104G [64/84] Session timeout

IP Control Box User Manual

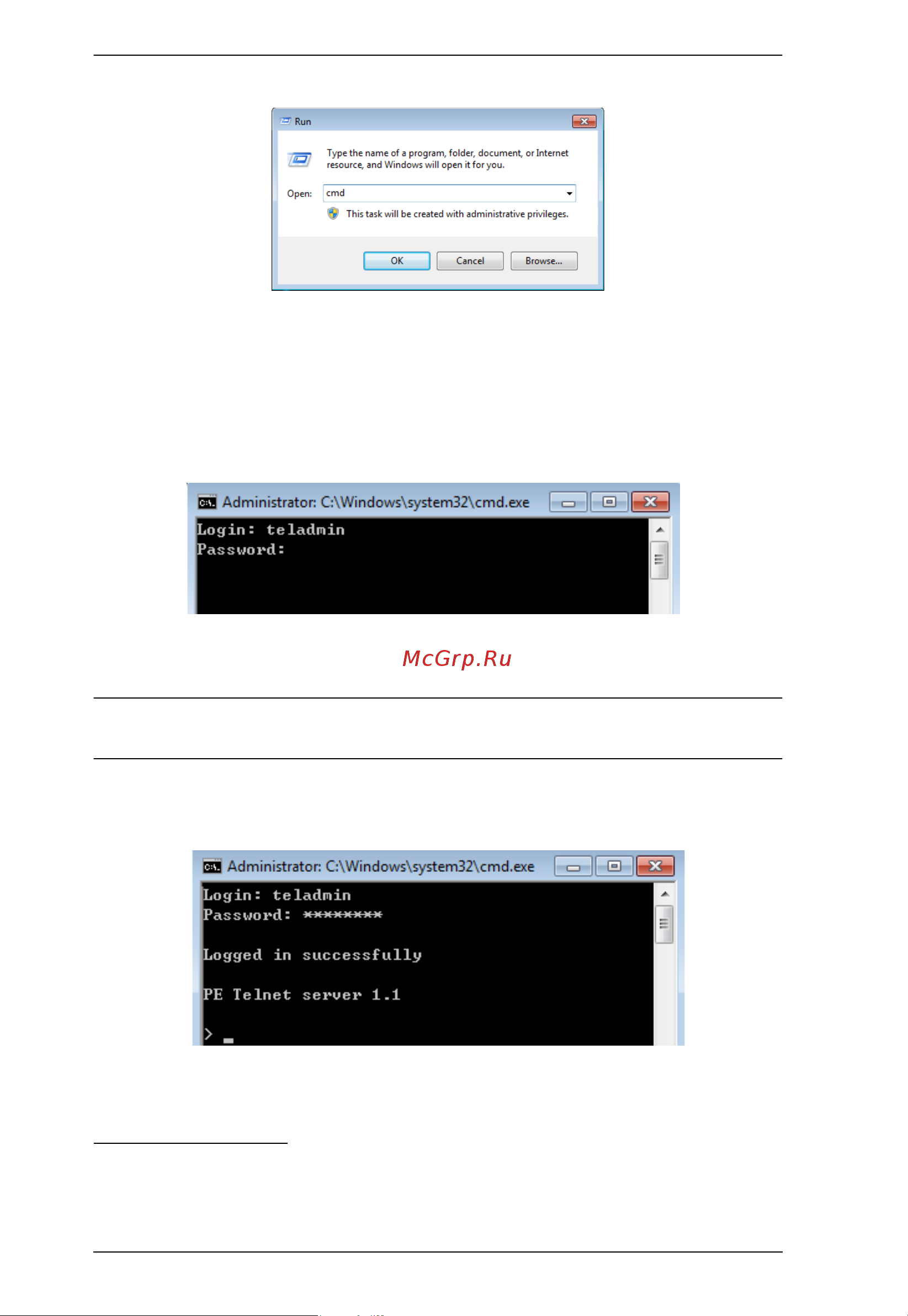

Click OK.

2. At the command prompt, key in telnet and the IP Address of the PDU, as

follows:

telnet [IP Address]

3. Press Enter. The login screen appears:

4. At the login prompt, enter the username: teladmin; and the password:

telpwd.

Note: The Telnet username and password can be configured on the User tab

of the IP Control Box's web GUI.

5. When the Telnet session is established, Logged in successfully appears

along with the command line prompt:

Session Timeout

A live Telnet connection would be terminated if there is no incoming data with

60 Seconds.
