Aten PE4104G [63/84] Telnet commands
![Aten PE4104G [63/84] Telnet commands](/views2/1978081/page63/bg3f.png)
53
Chapter 5
Telnet Commands
Remote Terminal Operations
With ATEN IP Control Box you can log in remotely from a computer using
Telnet interface that allows system control through a high-end controller or PC.
Telnet
Telnet is a program that connects to a device over a network to provide text-
based management and control. Telnet provides some of the same management
features found in the IP Control Box’s web GUI. You can reference the IP
Control Box’s web GUI functions by downloading the user manual from our
website (www.aten.com). This can help you as you work your way through the
text-based commands used to control the eco PDU that are discussed in this
guide.
Telnet is available on all eco PDUs installed with the latest firmware. You can
log in to the IP Control Box via Telnet from any computer connected to the
same network.
Setup

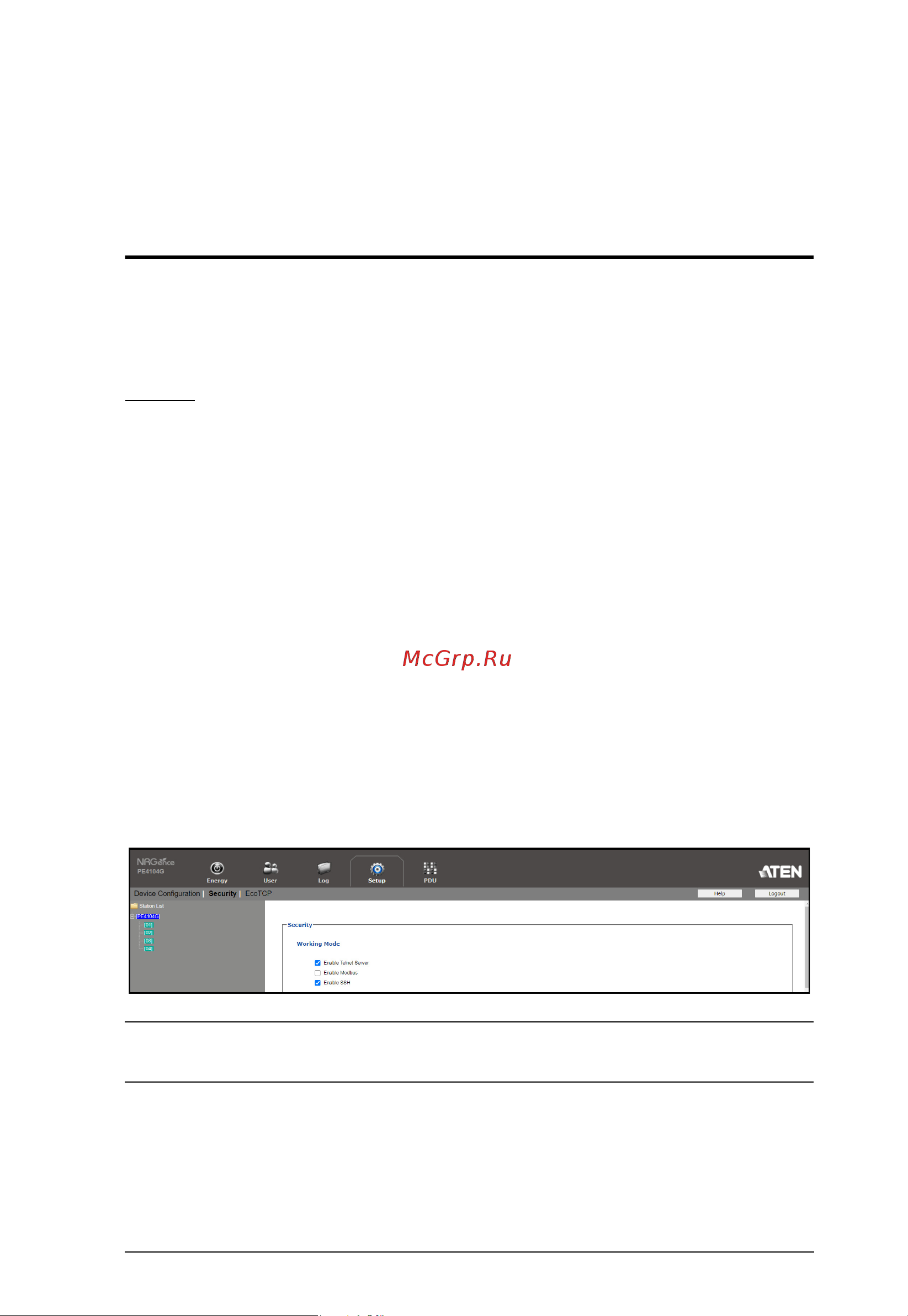

Log in to the PE4104G’s web GUI, go to the Setup tab and click Security from
the menu bar. Under Working Mode, check Enable Telnet Server and then
click Save at the bottom of the page.
Note: If the Enable Telnet Server option is not available, please download the
latest firmware from our website.
Logging In
To log in to the IP Control Box via Telnet, do the following:
1. On your computer, open the start menu and select Run. Type: cmd
