IP Control Box User Manual
36
Date/Time

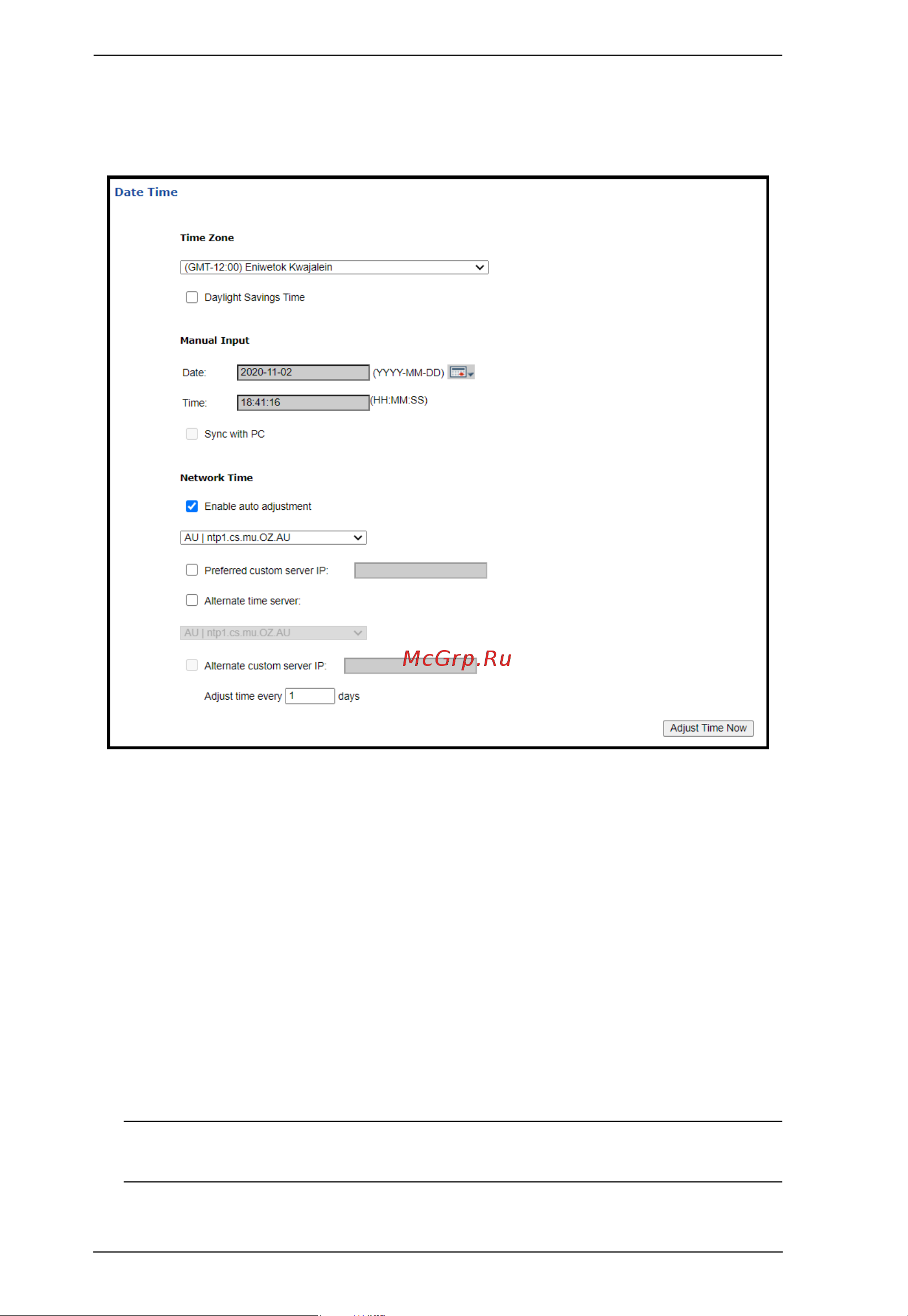

The Date/Time dialog page sets the IP Control Box time parameters:
Time Zone
To establish the time zone that the IP Control Box is located in, drop
down the Time Zone list and choose the city that most closely
corresponds to where it is at.
If your country or region employs Daylight Saving Time (Summer
Time), check the corresponding checkbox.
Manual Input
Use this section to specify the IP Control Box’s date and time manually.
Click the calendar icon and click the calendar entry for the date.
Key the time into the Time field, using the HH:MM:SS (hours,
minutes, seconds) format.
Note: This section is only enabled when auto adjustment (in the Network
Time section) is disabled (the checkbox is unchecked).
