IP Control Box User Manual

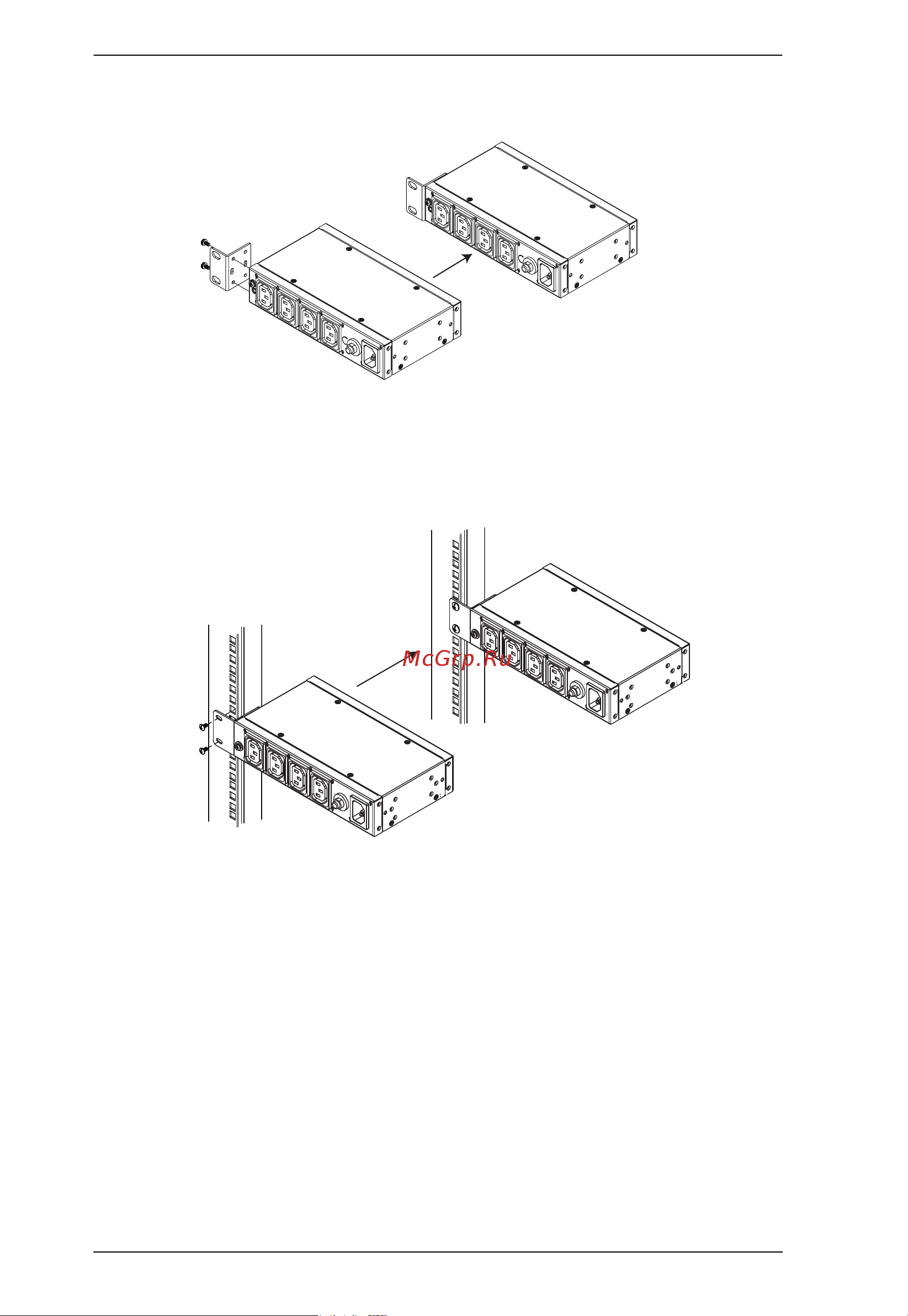

2. Align and stabilize the rack mount ear using M3 Phillips hex screws.

3. Align the unit and the rack mount ear to the rack and stabilize the unit

using rack screws. Let the buttons stabilize in the button holes and the

mounting is complete.
