Virtual Private Networking
100
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

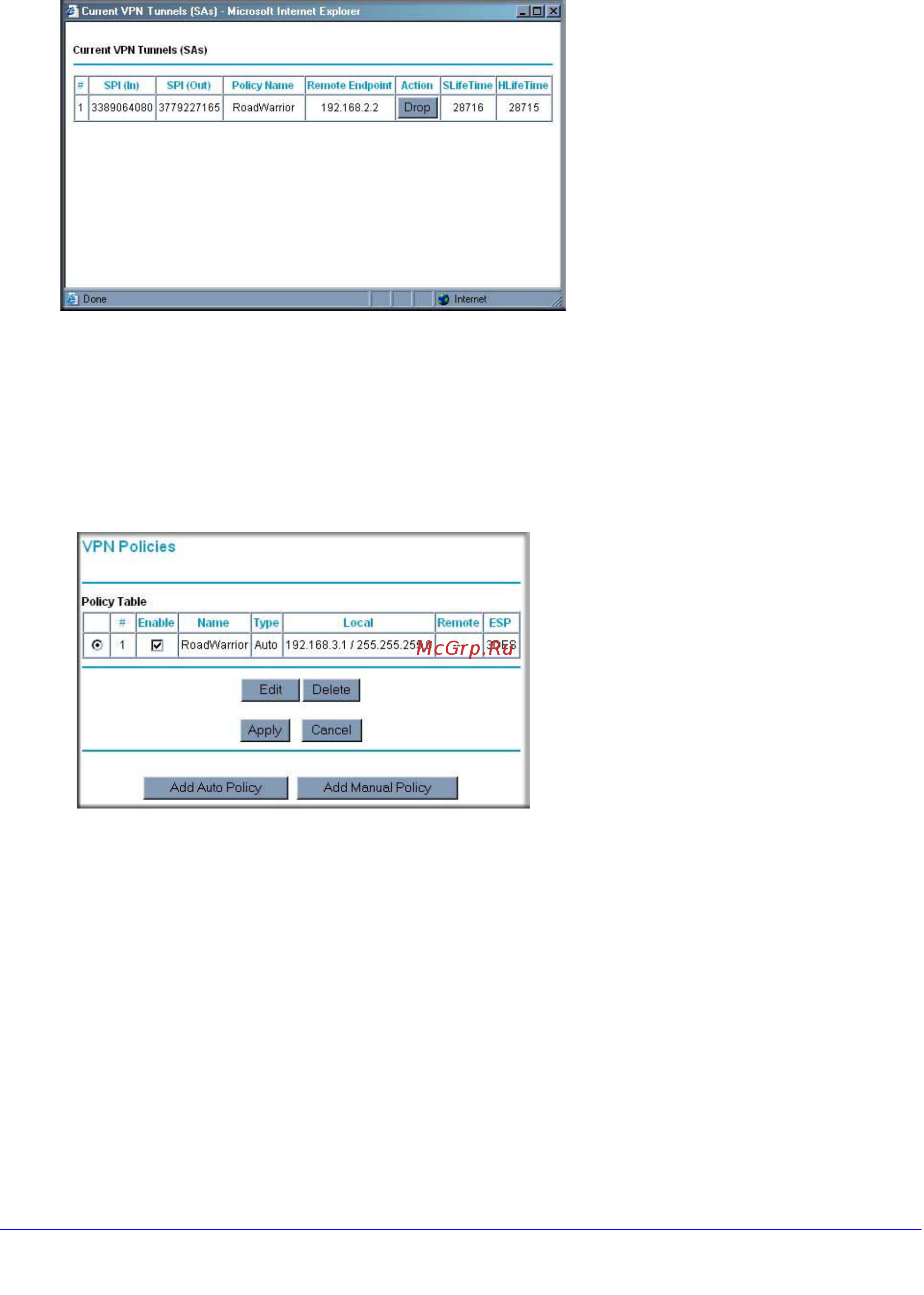

2. Click VPN Status. The Current VPN Tunnels (SAs) screen displays:
3. Click Drop for the VPN tunnel that you want to deactivate.
Delete a VPN Tunnel
To delete a VPN tunnel:
1. Select Advanced - VPN > VPN
Policies to display the VPN Policies screen.
2. In the Policy Table, select the radio button for the VPN tunnel to be deleted, and then click
Delete.
Set Up VPN Tunnels in Special Circumstances
When the VPN Wizard and its VPNC defaults (see Table 2 on page 79) are not appropriate
for your circumstances, use one of these alternatives:
• Auto Poli
cy.
For a typical automated Internet Key Exchange (IKE) setup, see Use Auto
Policy to Configure VPN Tunnels on p
age 101. Auto Policy uses the IKE protocol to
define the authentication scheme and automatically generate th
e encryption keys.
• Manual Policy. For a manu
al keying setup in which you have to specify each phase of
the connection, see Use Manual Policy to Configure VPN Tunnels on p
age 107. Manual
