Network Maintenance
57
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
The following table describes the N300 wireless modem router statistics.
Item Description
System Up Time The time elapsed since the N300 wireless modem router was last restarted.
Port The statistics for the WAN (Internet) a
nd LAN (Ethernet) ports. For each port, the screen
displays:
Status The link status of the port.
TxPkts The number of packets transmitted on this port since reset or manual clear.
RxPkts The number of packets received on this port since reset or manual clear.
Collisions The number of collisions on this port since reset or manual clear.
Tx B/s The current transmission (outbound) bandwidth used on the WAN and LAN ports.
Rx B/s The current reception (inbound) bandwidth used on the WAN and LAN ports.
Up Time The time elapsed since this port acquired the link.
Poll Interval The intervals at which the statistics are updated in this screen.
• To change the polling frequency, enter a time in seconds in the Poll Interval field, and
click Set Interval.
• To stop the polling, click St
op.

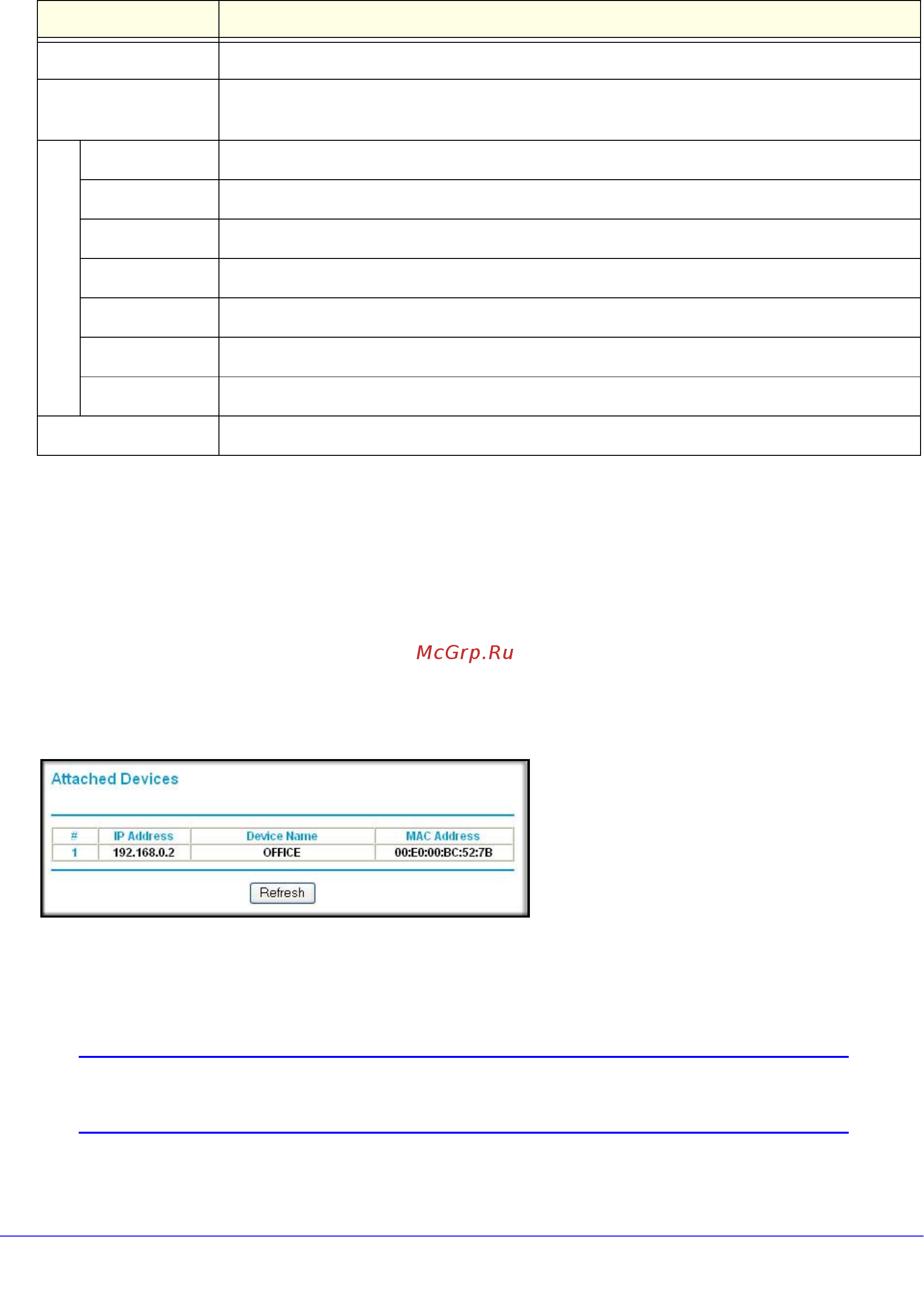

View a List of Attached Devices
The Attached Devices table lists all IP devices that the N300 wireless modem router has
discovered on the local network. From the main menu, under Maintenance, select Attached
Devi
ces to view the table.
For each device, the table shows the IP address, NetBIOS host name or device name (if
available), and the Ethernet MAC address. To force the N300 wireless modem router to look
for attached devices, click Refresh.
Note: If the N300 Wireless Modem Router is rebooted, the table data is
lost until the N300 wireless modem router rediscovers the devices.
