Network Maintenance

N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

View N300 Wireless Modem Router Status Information

To view N300 wireless modem router status and usage information, from the main menu,

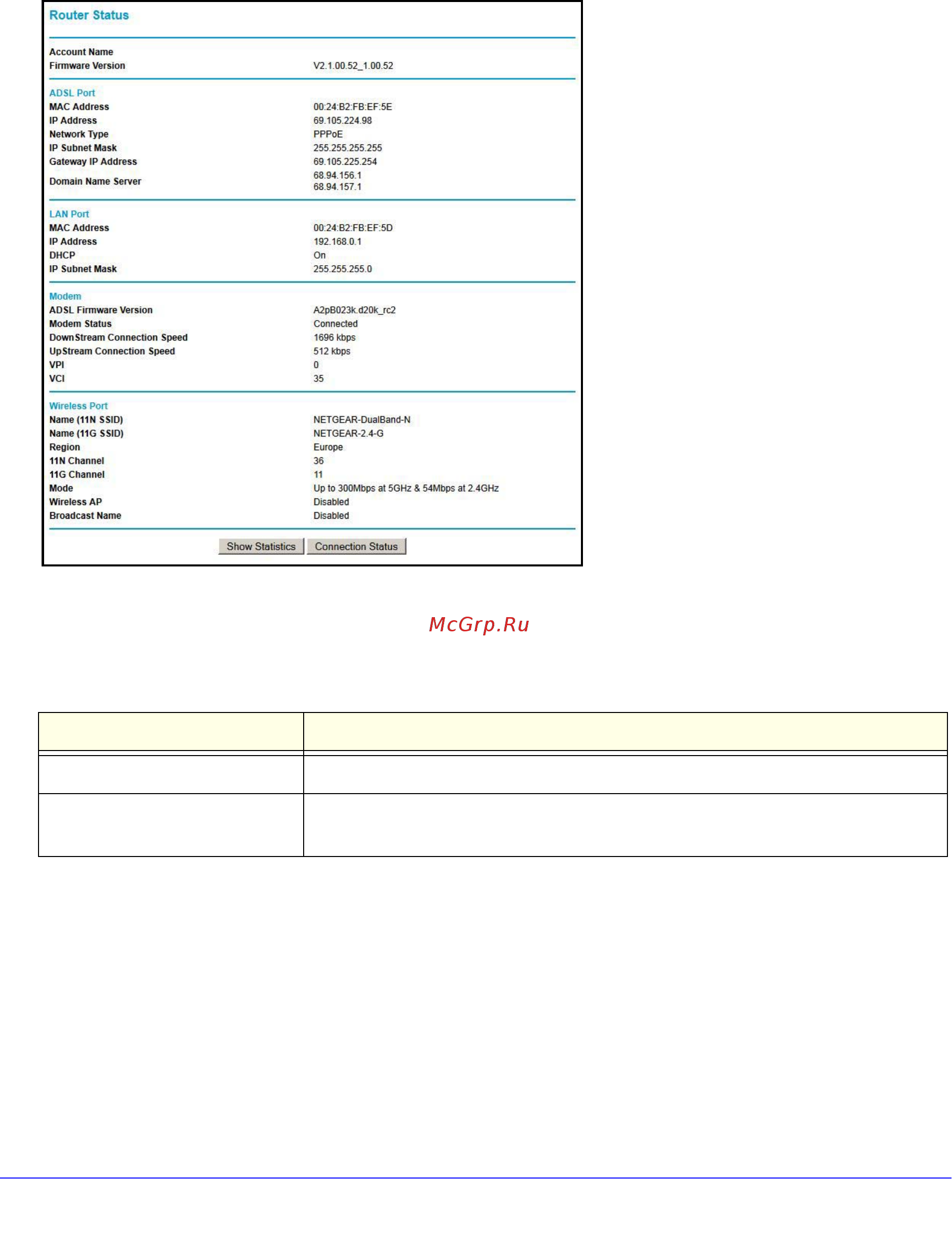

select Maintenance > Router Status. The Router Status screen displays.

You can use the Show Statics and Connection Status buttons to view additional status

information, as described in Connection Status on pag

e 55 and Statistics on page 56.

The following table explains Router Status screen fields.

Field Description

Account Name The host name assigned to the N300 wireless modem router.

Firmware Version The version of the N300 wireless modem router firmware. It changes if you

upgrade

the N300 wireless modem router.
