Netgear DGND3300 [42/174] Add a pre set port forwarding rule

Security Settings

N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

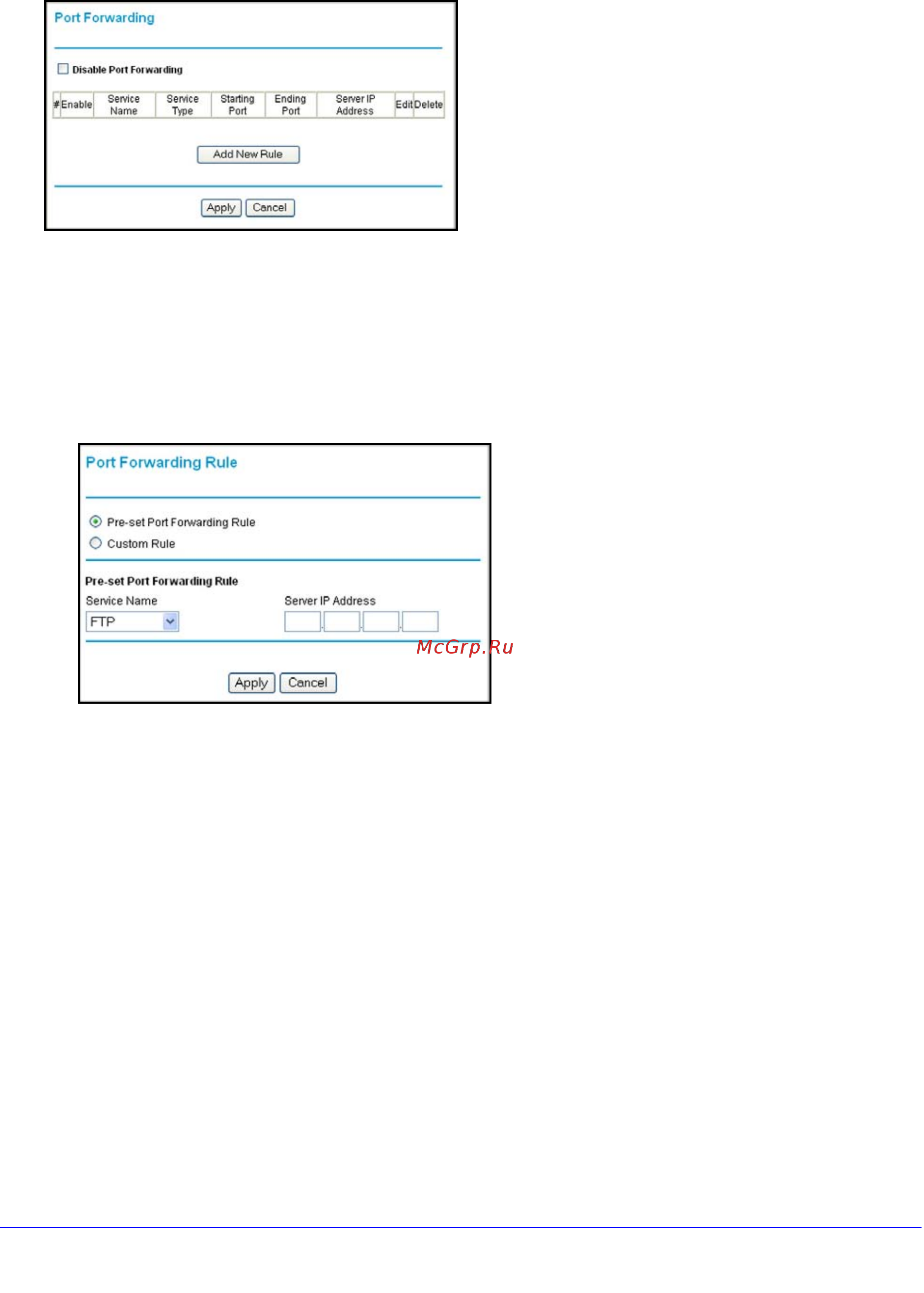

Select Security > Port Forwarding in the main menu. The Port Forwarding screen displays:

You can add a pre-set port forwarding rule or a custom rule.

Add a Pre-set Port Forwarding Rule

 To add a pre-set port forwarding rule:

1. From the Port Forwarding screen

, click Add to display the following screen:

2. In the Service Name list, select the rule.

3. Fill in the Server IP Address fie

ld, and then click Apply.

Add a Custom Port Forwarding Rule

 To add a custom port forwarding rule:

1. From the Port Forwarding screen

, click Add.
