Network Maintenance
55
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

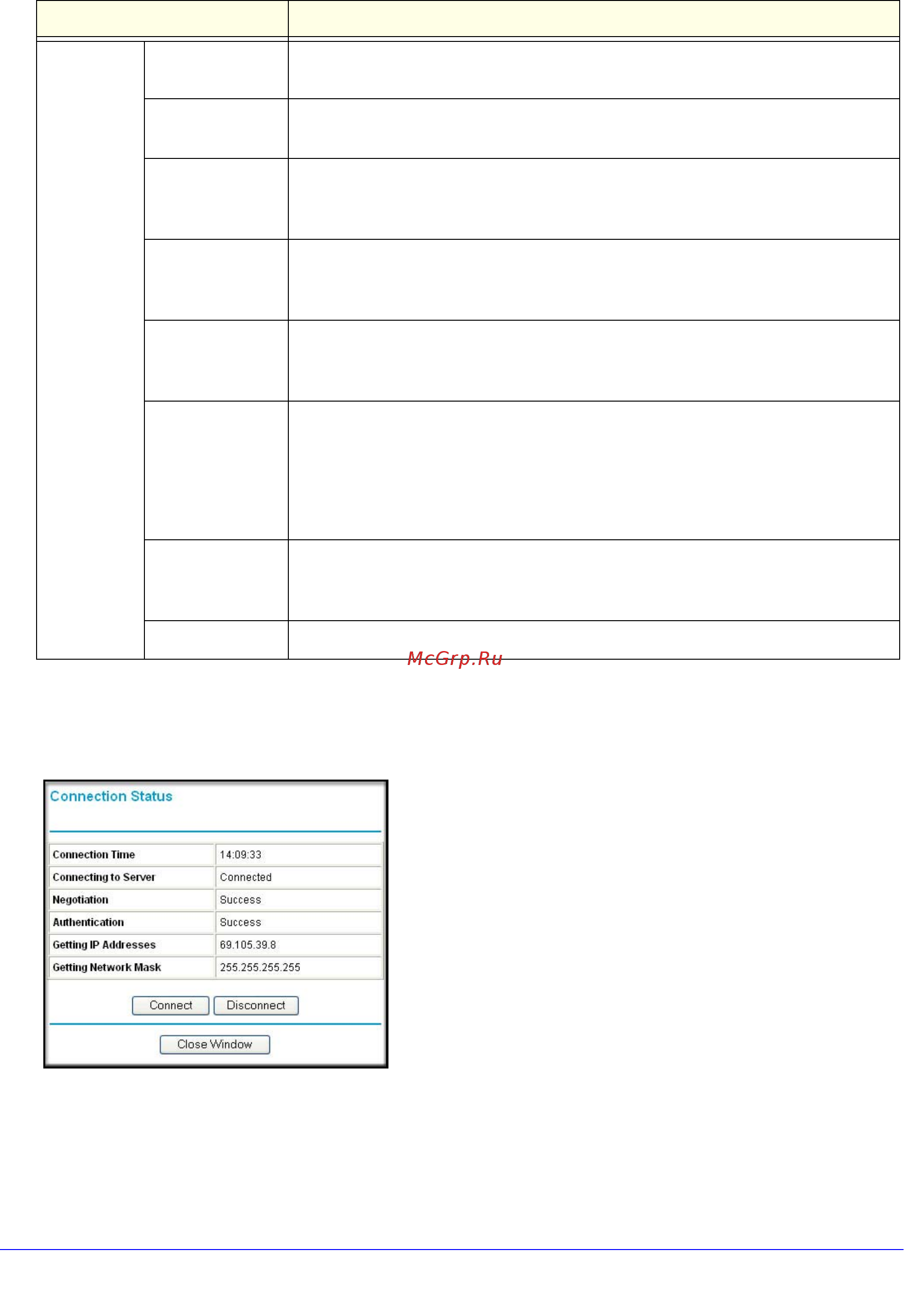

Connection Status
To view the connection status, on the Router Status screen, click Connection Status.L
• Click the Connect button, and the N300 wireless modem router attempts to connect to
the Internet.
• Click the Discon
nect button to disconnect the N300 wireless modem router Internet
connection.
Wireless
Port
Name (11N
SSID)
The 11N wireless network name (SSID) being used by the wireless port of the
N300 wireless modem router. The default is NETGEAR-DualBand-N.
Name (11G
SSID)
The 11G wireless network name (SSID) being used
by the wireless port of the
N300 wireless modem router. The default is NETGEAR-2.4-G.
Region The geographic region where the N300 wireless modem router is being used.
It might be
illegal to use the wireless features of the N300 wireless modem
router in some parts of the world.
11N Channel Identifies the 11N channel of the wireless port being used. In Up to 300 Mbps
at 5 GHz and
54 Mbps at 2.4 GHz mode, there are two channels: a primary
channel (P) and a secondary channel (S).
11G Channel Identifies the 11G channel of the wireless port being used. In Up to 300 Mbps
at 2.4 GHz mode and Up to
145 Mbps at 2.4 GHz mode, the 11G channel is
not active.
Mode Indicates the wireless communication mode:
• Up to 300 Mbps at 2.4 GHz
• Up to 300 Mbps at 5 GHz and 54 Mbps at 2.4 GHz (default)
• Up to 145 Mbps at 2.4 GHz
• Up to 145 Mbps at 5 GHz and 54 Mbps at 2.4 GHz
Wireless AP Indicates whether the radio
feature
of the N300 wireless modem router is
enabled. If this feature is not enabled, the Wireless light on the front panel is
off.
Broadcast Name
Indicates whether the N300 wireless modem router is broadcasting its SSID.
Field Description
