Network Maintenance
59
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
configuration and restore the factory default settings. After an erase, the N300 wireless
modem router’s user name is admin, the password is password, the LAN IP address is
192.168.0.1, and its DHCP server is enabled.
• T
o erase the configuration, click the Er
ase button in the Backup Settings screen.
• To restore the factory default configuration settings when you do not know the login
p
assword or IP address, you need to use the Restore Factory Settings button on the
rear panel of the N300 wireless modem router (see Restore the Factory Configuration
Settings on pag
e 161).
Run Diagnostic Utilities and Reboot the Router
The N300 wireless modem router has a diagnostics feature. In the main menu, select

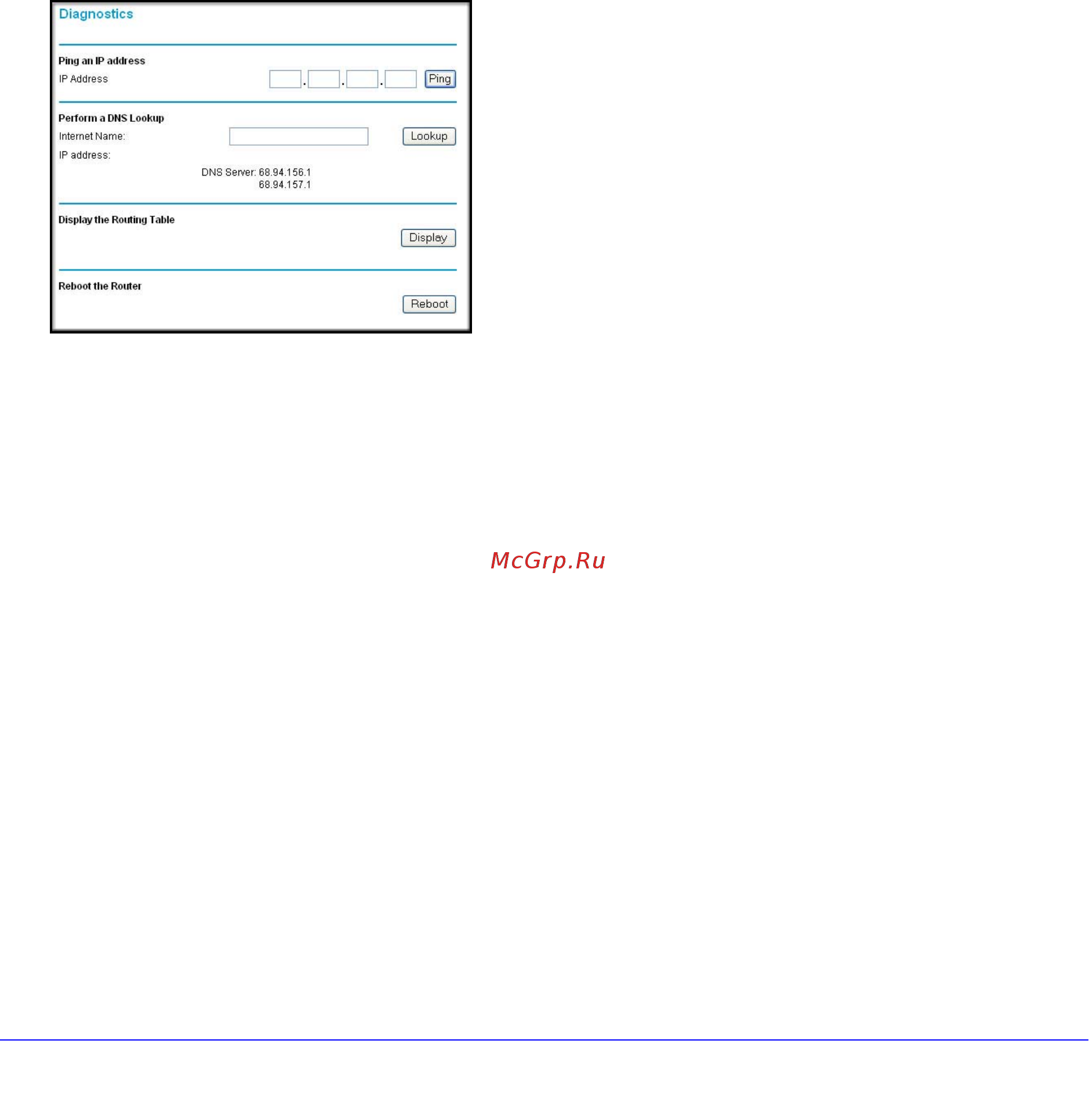

Maintenance > Diagnostics to display the following screen:
You can use the Diagnostics screen to perform the following functions from the N300
wireless modem router:
• Ping
an IP address to test connectivity to se
e if you can reach a remote host.
• Perform a DNS lookup
to test if an Internet name resolves to an IP address to verify that
the DNS server configuration is working.
• Display the Routing table to identify what other N300 wireless modem routers the N300
wireless modem route
r is communicating with.
• Reboot the N300
wireless modem router to enable new network configurations to take
effect or to clear problems with the N300 wireless modem router’s network connection.
