Advanced Settings (Part 1)

120

N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

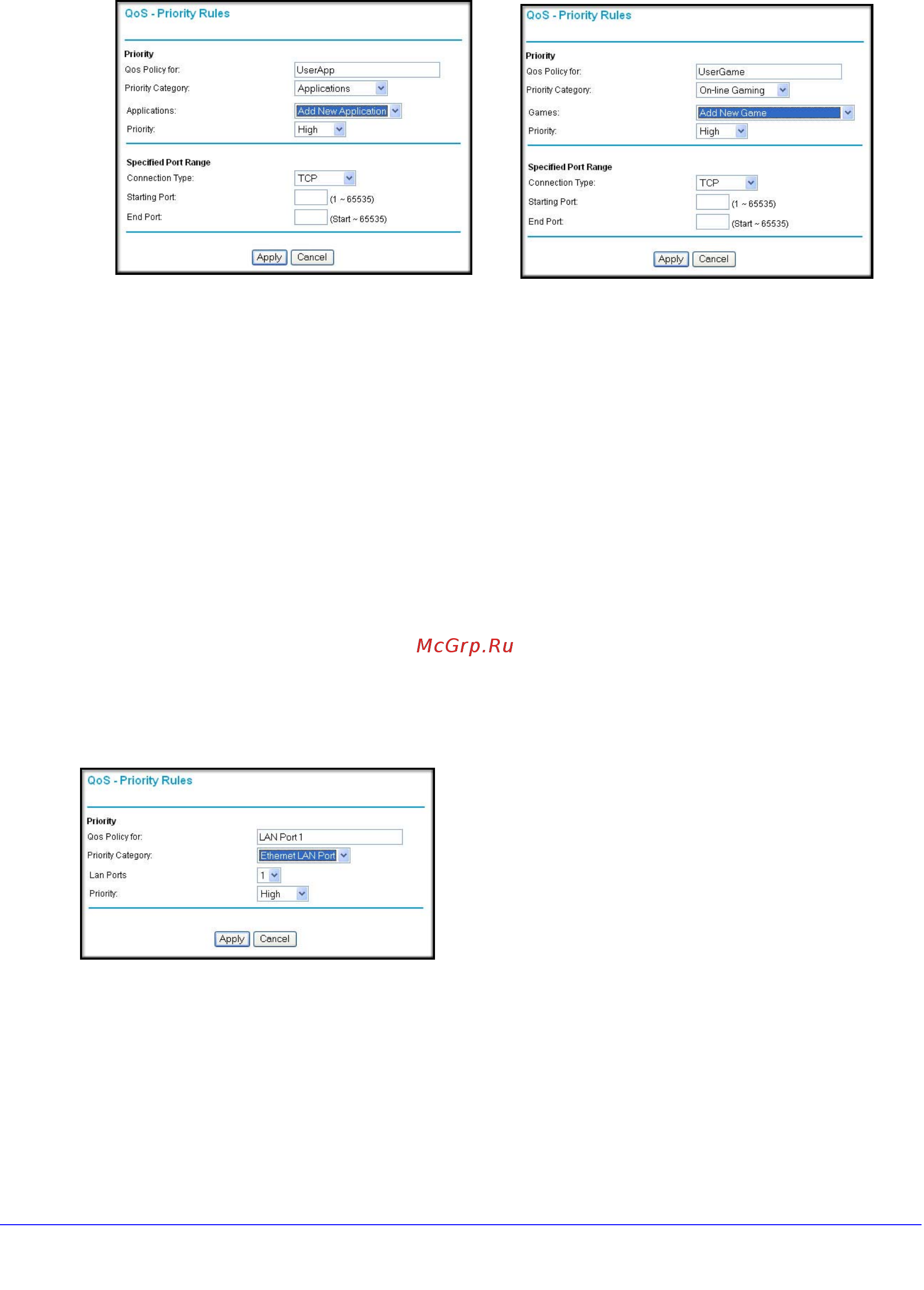

a. If you choose to add a new entry, the screen expands as shown:

b. In the QoS Policy for field, enter a descriptive name for the new application or game.

c. Select the connection type

, either TCP, UDP, or both (TCP/UDP), and specify the

port number or range of port numbers used by the application or game.

6. From the Priority drop-down list,

select the priority that this traffic should receive relative to

other applications and traffic when accessing the Internet. The options are Low, Normal,

High, and Highest.

7. Click Apply to

save this rule to the QoS Policy list and return to the QoS Setup screen.

8. In the QoS Setup screen, select the T

urn Internet Access QoS On check box.

9. Click Apply.

QoS for a Router LAN Port

 To create a QoS policy for a device connected to one of the router’s LAN ports:

1. From the main menu, select Advance

d > QoS Setup. The QoS Setup screen displays.

2. Click Setup QoS Rule.

3. In the Priority Category field,

select Ethernet LAN Port. The screen changes:

4. In the LAN Ports list, select the LAN port that will have a QoS policy.

5. From the Priority drop-down list,

select the priority that this port’s traffic should receive

relative to other applications and traffic when accessing the Internet. The options are Low,

Normal, High, and Highest.

6. Click Apply to

save this rule to the QoS Policy list and return to the QoS Setup screen.

7. In the QoS Setup screen, select the T

urn Internet Access QoS On check box.

8. Click Apply.
