Netgear DGND3300 [94/174] Vpn tunnel control

Virtual Private Networking

N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

Note: The VPN Status screen is only one of three ways to active a VPN

tunnel. See

Activate a VPN Tunnel on page 94 for information about

the other ways.

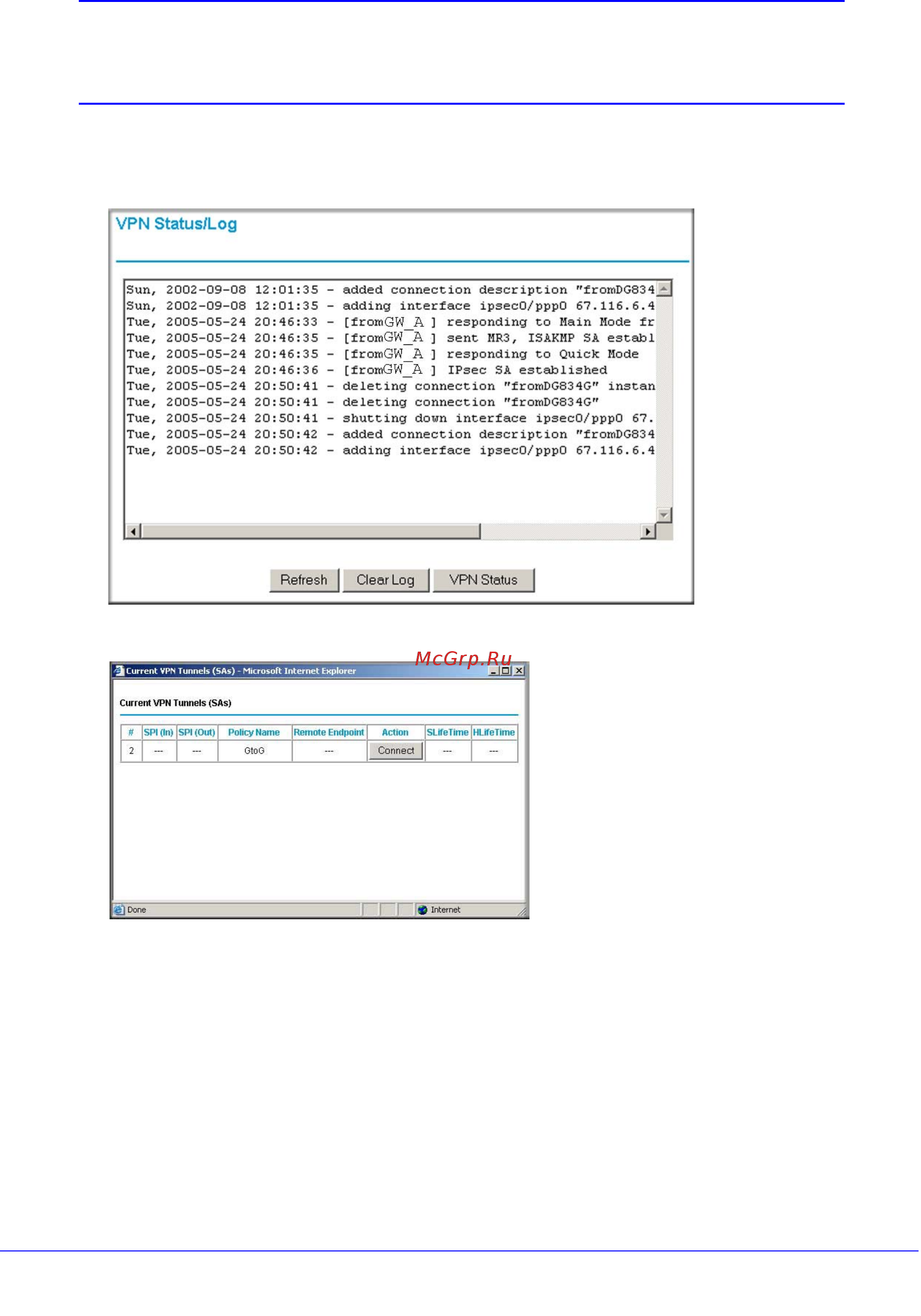

a. On the N300 wireless modem router menu, select VPN Status. The VPN Status/Log

screen displays:

b. Click the VPN Status button to display the Current VPN Tunnels (SAs) screen:

c. Click Connect for the VPN tunnel you want to activate. View the VPN Status/Log

screen to verify that the tunnel is connected.

VPN Tunnel Control

Activate a VPN Tunnel

There are three ways to activate a VPN tunnel:
