Security Settings
48
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
Configure Email Alert and Web Access Log Notifications
To receive logs and alerts by e-mail, you need to provide your e-mail account
information:
1. From the ma
in me

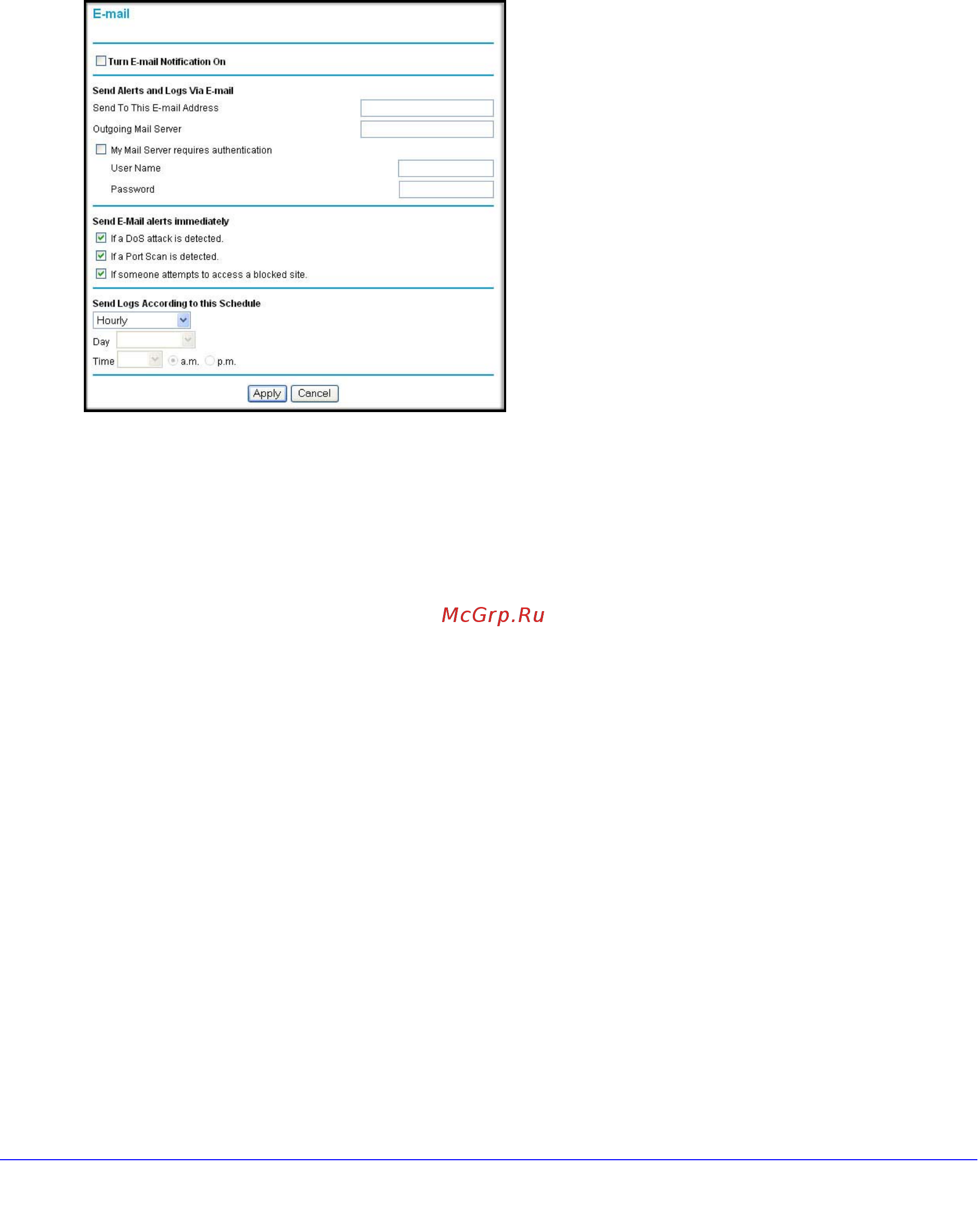

nu, select Security > E-mail. The E-mail screen displays.
2. To receive email logs and alerts from the N300 wireless modem router, select the Turn
E-mail Notification On check box.
a. In the Y
our Outgoing Mail Server field, enter the name of your ISP’s outgoing (SMTP)
mail server (such as mail.myISP.com). You might be able to find this information in
the configuration screen of your e-mail program. If you leave this field blank, log and
alert messages will not be sent by e-mail.
b. In the Send
To This E-mail Address field, enter the email address to which logs and
alerts are sent. This email address will also be used as the From address. If you
leave this field blank, log and alert messages will not be sent by email.
3. If your outgoing e-mail server requires authentication, select the My
Mail Server requires
authentication check box.
a. In the User Name fie
ld, enter your user name for the outgoing email server.
b. In the Passwo
rd field, enter your password for the outgoing email server.
4. You can specify that logs are automatically sent by email with these options:
•
Send alert immediately. Select this ch
eck box for immediate notification of attempted
access to a blocked site or service.
• Send Logs According to this Schedule. S
pecifies how often to send the logs: Hourly,
Daily, Weekly, or When Full.
- Day. Specifies which day of the week to send th
e log. Relevant when the log is
sent weekly or daily.
- Time.
Specifies the time of day to send the log. Relevant when the log is sent daily
or weekly.
