USB Storage
73
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
Specify Approved USB Devices
You can specify which USB devices are approved for use when connected to the N300
wireless modem router:
1. F
rom the main menu, select Advanced > USB Settings, and
then click Approved

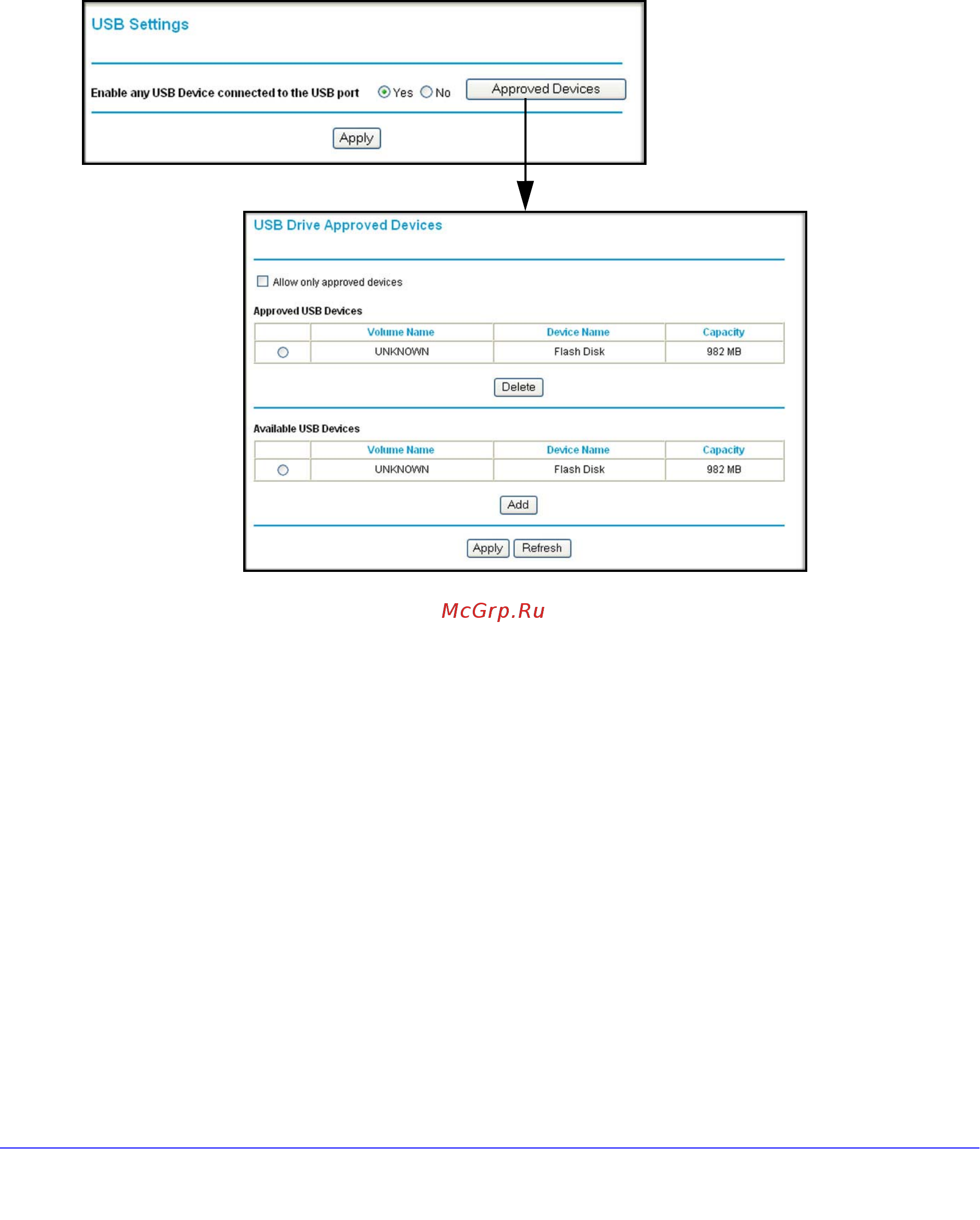

Devices. The USB Drive Approved Settings screen displays:
2. Select the USB device from the Available USB Devices list.
3. Click Add.
4. Select the Allo
w only approved devices check box.
5. Click Appl
y so that your change goes into effect.
If you want to approve another USB device, you need to first use the Safely Remove USB
Devi
ce button to unmount the currently connected USB device. Connect the other USB
device, and then repeat this process.
Connect to the USB Drive from a Remote Computer
To connect to the USB drive from remote computers using a Web browser, you need to use
the router’s Internet port IP address.
