USB Storage
70
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
Configure USB Storage Advanced Settings
To configure advanced USB settings, from the main menu, select USB > Advanced

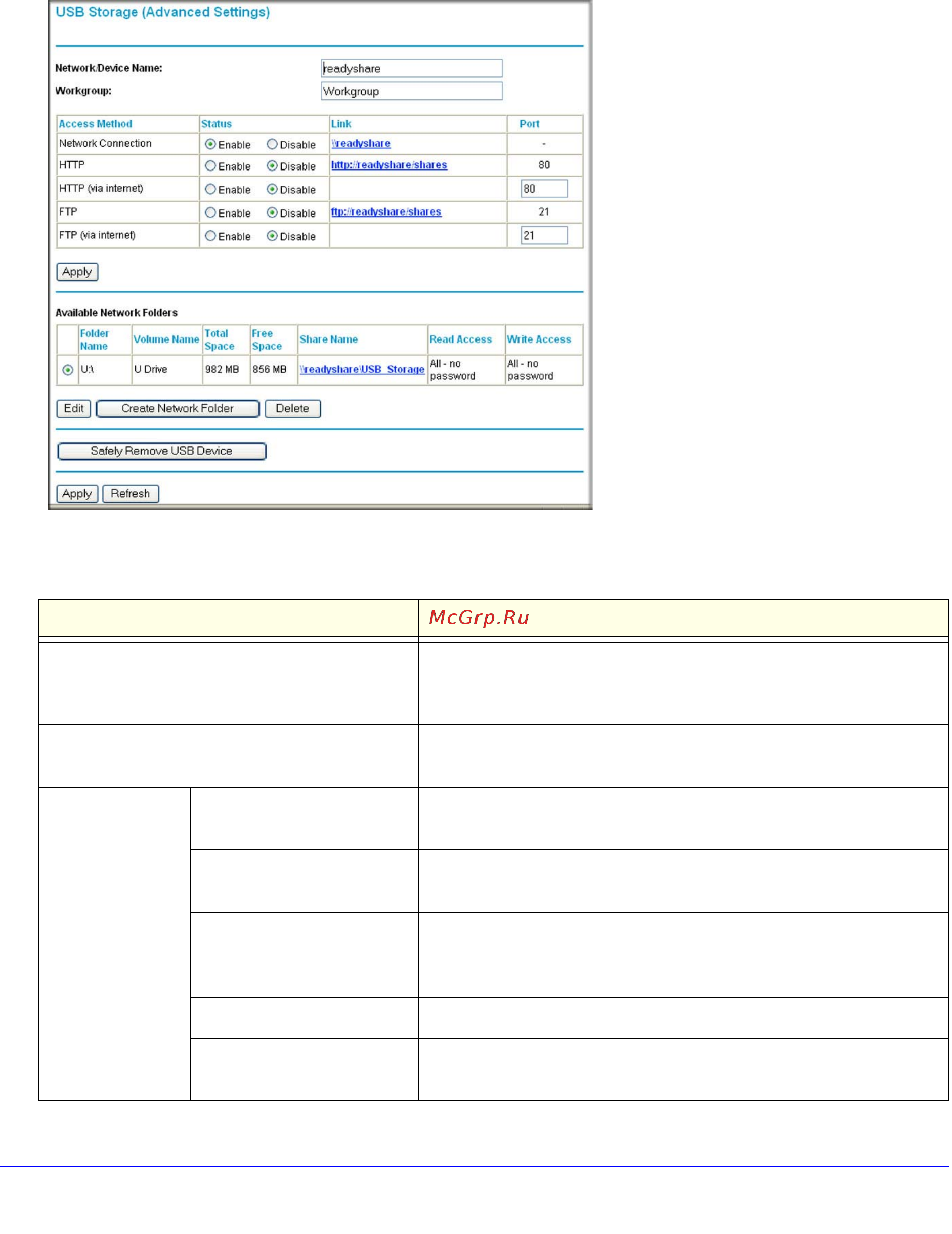

Settings. The USB Storage (Advanced Settings) screen displays:
You can use this screen to specify access to the USB storage device. The following table
explains the fields and buttons in the USB Storage (Advanced Settings) screen.
Fields Description
Network Device Name The default is readyshare. This is the name used to access the
USB device connected to the N300 wireless modem router from
your computer.
Workgroup If you are using a Windows Workgr
oup rather than a domain, the
workgroup name is displayed here.
Access Method Network Connection Enabled by default, this allows all users on the LAN to have
access to the USB
drive.
HTTP Disabled by default. If you enable this setting, you can type
http://readyshare to access
the USB drive.
HTTP (via Internet) Disabled by default. If you enable this settings, remote users can
type http://readyshare to
access the USB drive over the
Internet.
FTP Disabled by default.
FTP (via Internet) Disabled by default. If you enable this settings, remote users can
access the USB
d
rive through FTP over the Internet.
