Virtual Private Networking
105
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
To use Auto Policy:
1. Set the LAN IPs on each N300 wireless modem router to different subnets and
configure each correctly for the Internet.
2. Select Advance
d - VPN > VPN Policies and click the Add Auto Policy button.

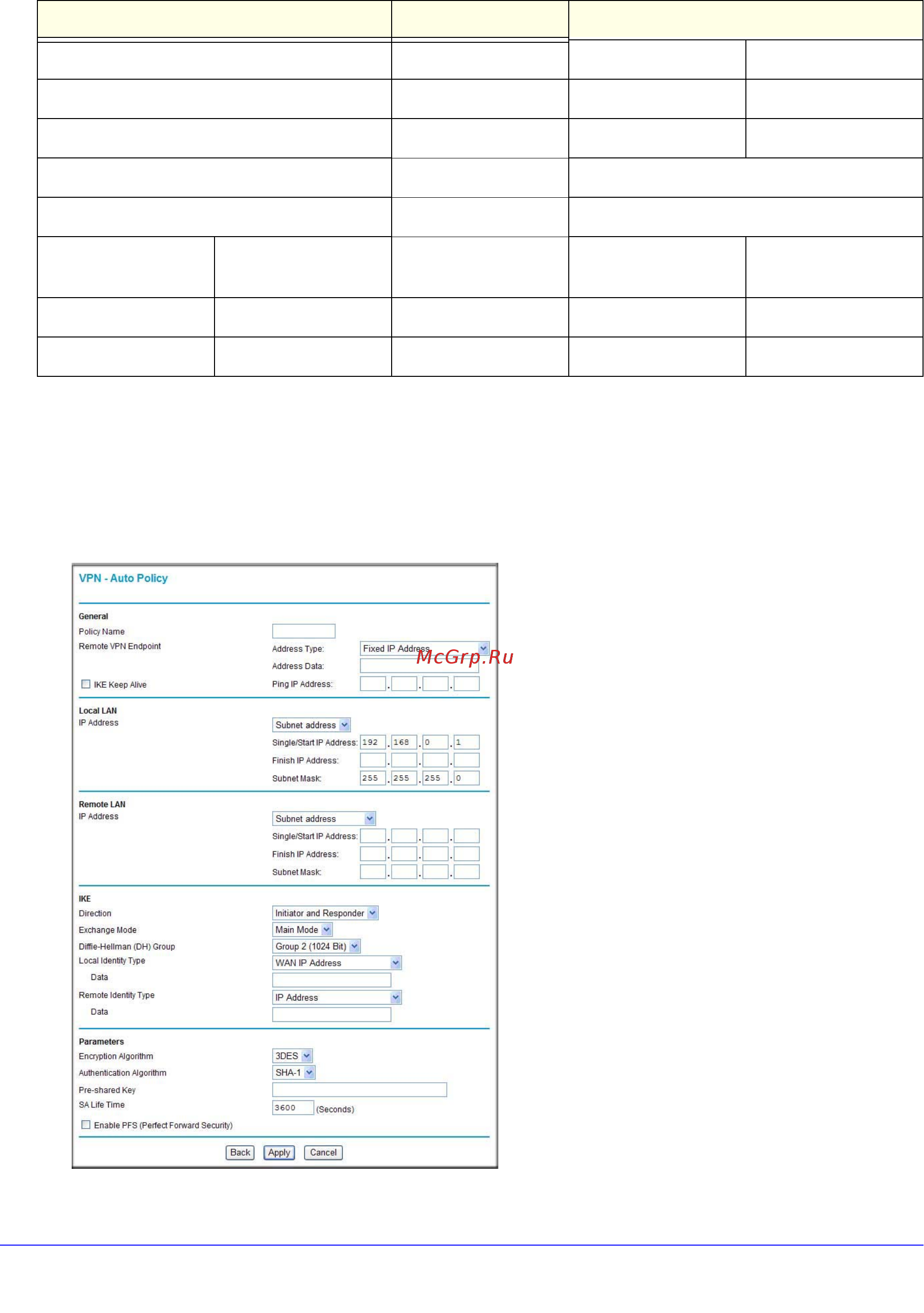

The VPN Auto Policy screen displays:
Encryption Protocol N/A DES 3DES
Authentication Protocol N/A MD5 SHA-1
Diffie-Hellman (DH) Group N/A Group 1 Group 2
Key Life in seconds 28800 (8 hours) N/A
IKE Life Time in seconds 3600 (1 hour) N/A
VPN Endpoint Local IPSecID LAN IP Address Subnet Mask FQDN or Gateway
IP (W
AN IP Addres
s
Gateway_A GW_A 192.168.0.1 255.255.255.0 14.15.16.17
Gateway_B GW_B 192.168.3.1 255.255.255.0 22.23.24.25
Table 5. Gateway-to-Gateway VPN Tunnel Configuration Worksheet (continued)
Parameter Value to Be Entered Field Selection
