Virtual Private Networking
101
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
policy does not use IKE. Rather, you manually enter all the authentication and key
parameters. You have more control over the process; however, the process is more
complex, and there are more opportunities for errors or configuration mismatches
between your DGND3300v2 and the corresponding VPN endpoint gateway or client
workstation.
Use Auto Policy to Configure VPN Tunnels
You need to configure matching VPN settings on both VPN endpoints. The outbound VPN
settings on one end has to match to the inbound VPN settings on other end, and vice versa.
See Example of Using Auto Policy on
p
age 104 for an example of using Auto Policy.
Configure VPN Network Connection Parameters
All VPN tunnels on the N300 wireless modem router require that you configure several
network parameters. This section describes those parameters and how to access them.
The most common configuration scenarios use
IKE
to manage the authentication and
encryption keys. The IKE protocol performs negotiations between the two VPN endpoints to
automatically generate and update the required encryption parameters.

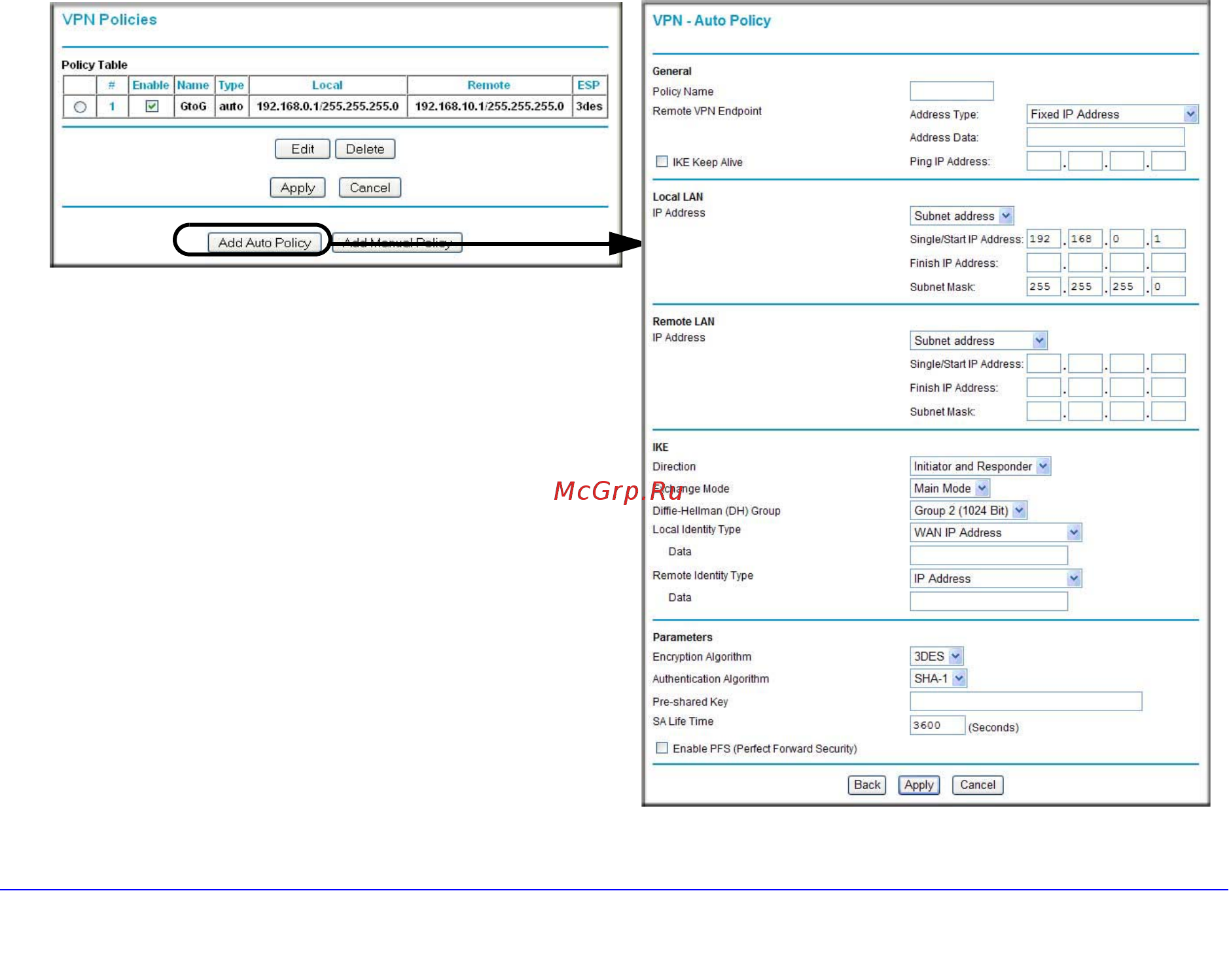

Select Ad
vanced - VPN > VPN Policies, and click the Add
Auto Policy button to display
the VPN - Auto Policy screen:
