Virtual Private Networking
107
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
- Pre-shared Key (for example, 12345678)
6. Use the VPN S
tatus screen to activate the VPN tunnel:
Note: The VPN Status screen is only one of three ways to active a VPN
tunnel. See
Activate a VPN Tunnel on page 94 for information about
the other ways.

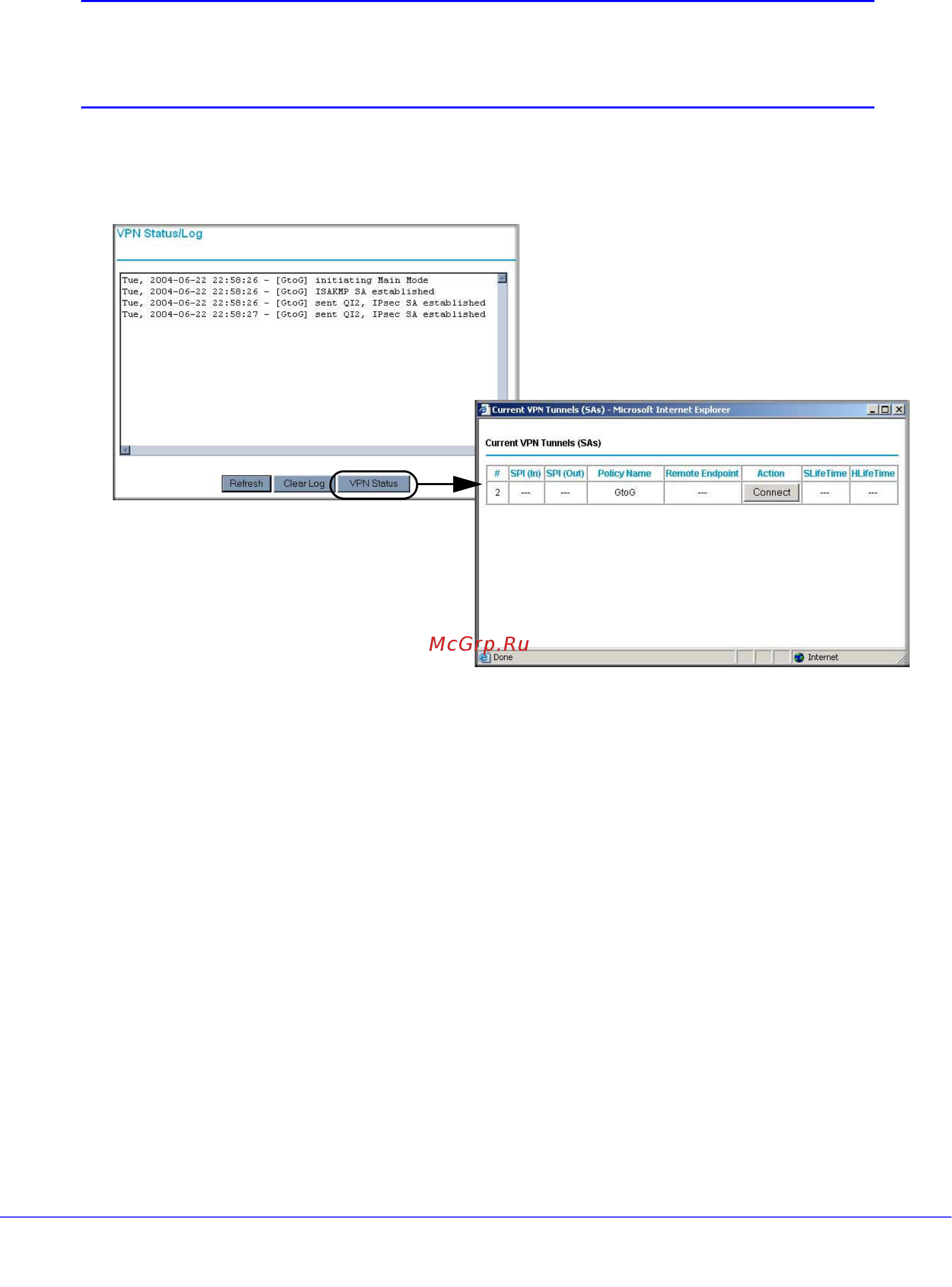

a. Select VPN > VPN Status to display the VPN Status/Log screen. Then click VPN
Status to display the Current VPN Tunnels (SAs) screen:
b. Click Connect for the VPN tunnel that you want to activate. Review the VPN
Status/Log screen (Figure a on page 94
) to verify that the tunnel is connected.
Use Manual Policy to Configure VPN Tunnels
As an alternative to IKE, you can use manual keying, in which you need to specify each
phase of the connection. A manual VPN policy requires all settings for the VPN tunnel to be
manually input at each end (both VPN endpoints).
