Virtual Private Networking
80
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
• See Use Manual Policy to Configure VPN Tunnels on page 107 when the VPN Wizard
and its VPNC defaults are not appropriate for your special circumstances and you have to
spec
ify each phase of the connection. You manually enter all the authentication and key
parameters. You have more control over the process; however, the process is more
complex, and there are more opportunities for errors or configuration mismatches
between your DGND3300v2 and the corresponding VPN endpoint gateway or client
workstation.
Note: NETGEAR publishes additional interoperability scenarios with
various gateway and client software products. Look on the
NETGEAR website at
www.netgear.com for these interoperability
scenarios.
Set Up a Client-to-Gateway VPN Configuration
Setting up a VPN between a remote computer running the NETGEAR ProSafe VPN Client
and a network gateway involves these two steps:
• Step 1: Configure the Client-to-Gateway VPN Tunnel on pag
e 80 describes how to use
the VPN Wizard to configure the VPN tunnel between the remote computer and network
gateway.
•
Step 2: Configure the NETGEAR ProSafe VPN Client on pag
e 83 shows how to configure
the NETGEAR ProSafe VPN Client endpoint.

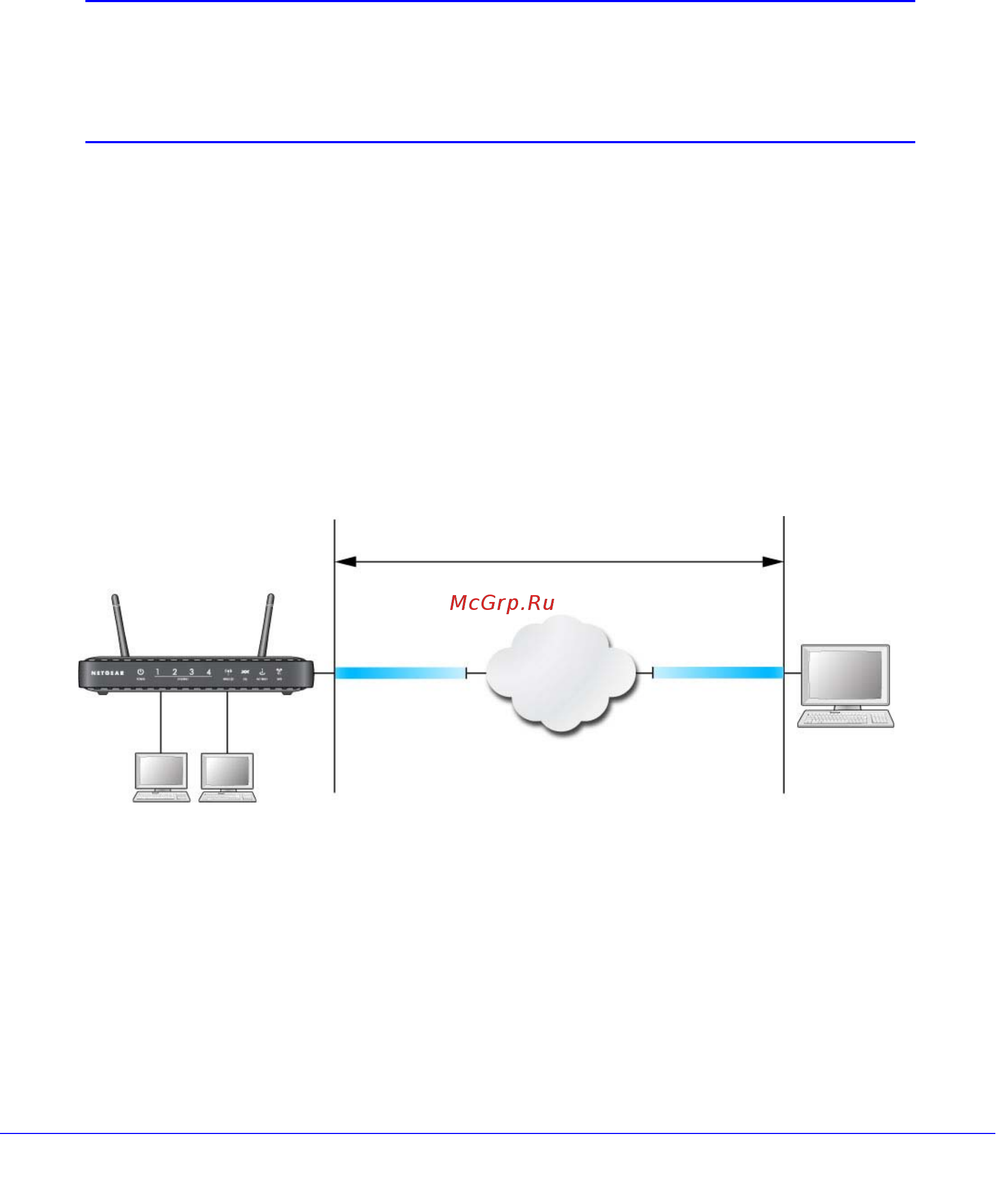

VPN tunnel
Internet
22.23.24.25
0.0.0.0
IP: 192.168.3.1
Computer running
NETGEAR ProSafe
VPN Client
Figure 3. Client-to-gateway VPN tunnel
Step 1: Configure the Client-to-Gateway VPN Tunnel
This section describes using the VPN Wizard to set up the VPN tunnel using the VPNC
default parameters listed in Table 2 on page 79
. If you have special requirements not covered
by these VPNC-recommended parameters, see Set Up VPN Tunnels in Special
Circumstances on page 100
for information about how to set up the VPN tunnel.
