N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

• Click the Close Window button to close the Connection Status screen.

The following table describes the connection

status settings.

Item Description

Connection Time The time elapsed since the last connection to the Internet through the ADSL port.

Connecting to sender The connection status.

Negotiation Success or Failed.

Authentication Success or Failed.

Obtaining IP Address The IP address assigned to the WAN port by the ADSL Internet Service Provider.

Obtaining Network

Mask

The network mask assigned to the WAN port by the ADSL Internet Service Provider.

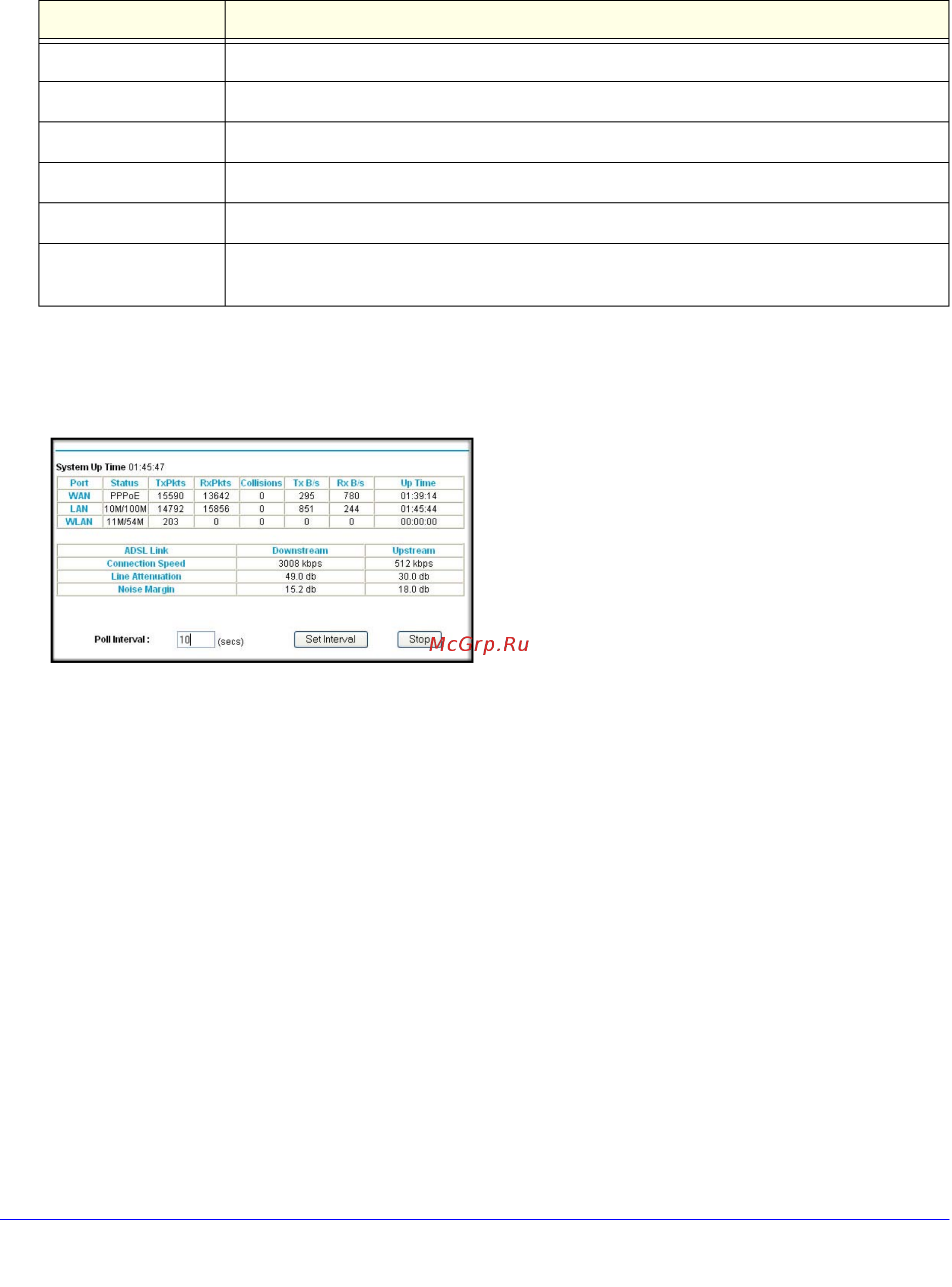

Statistics

To view statistics, on the Router Status screen, click Show Statistics.
