Netgear DGND3300 [160/174] View the vpn router s vpn status and log information

NETGEAR VPN Configuration

160

N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

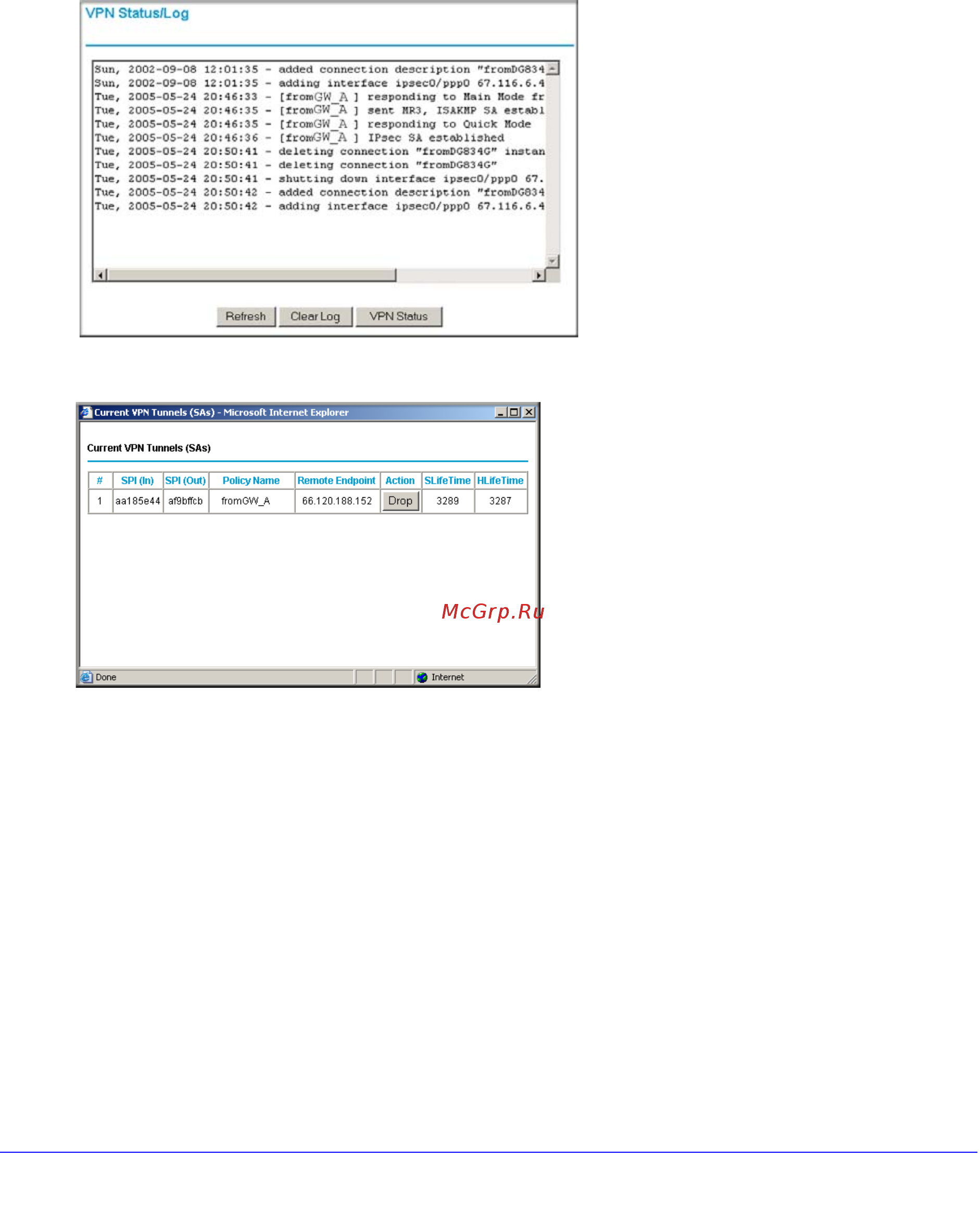

View the VPN Router’s VPN Status and Log Information

 To view information about the status of the VPN client connection:

1. Open the VPN router’s VPN Status screen, then on the N300 wireless modem router

main me

nu, select Router Status, and then click the VPN Status button. The VPN

Status/Log screen displays:

2. To view the VPN tunnels status, click VPN Status.
