USB Storage
67
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2
2. If you want to limit USB drive access to read only access, from the N300 wireless modem
router USB Storage (Basic Settings) screen, click Edit a Network folder. In the Write
Access field, select Edit, and then click Apply.
Note: The password for admin is the same one that you use to access the
N300 wireless modem router. By default it is password.
3. Enable FTP through the Internet in the USB Storage (Advanced Settings) screen. See
Configure USB Storage Advanced Settings on p
age 70.
USB Storage Basic Settings
You can view or edit basic settings for the USB storage device attached to your N300
wireless modem router. On the N300 wireless modem router main menu, select USB

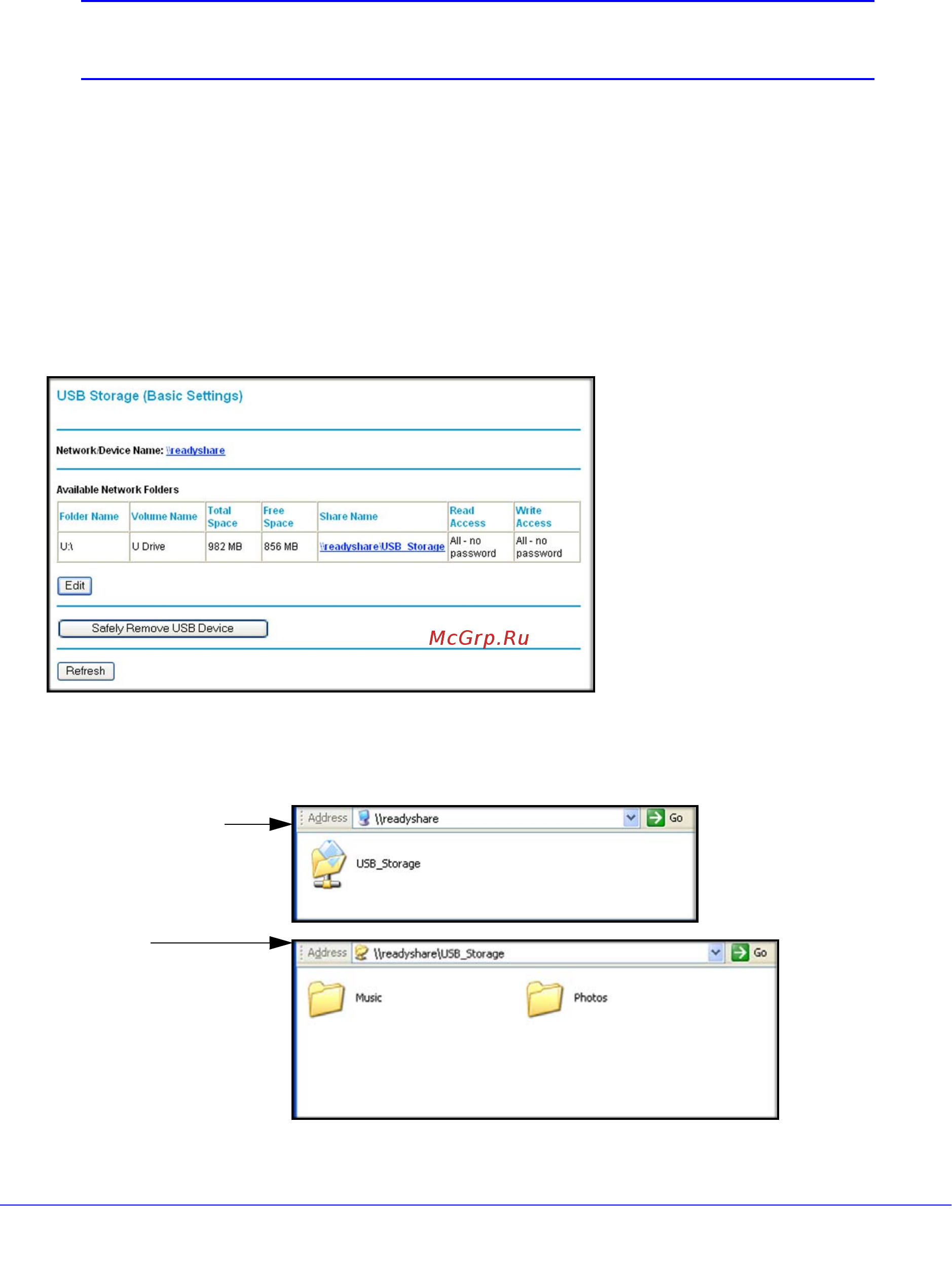

Storage > Basic Settings. The following screen displays:
By default, the USB storage device is available to all computers on your local area network
(LAN). To access your USB device from this screen, you can click the network/device name
or the share name.
Network/Device Name:
Share Name:
\\readyshare
\\readyshare\USB_Storage
