NETGEAR VPN Configuration

146

N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

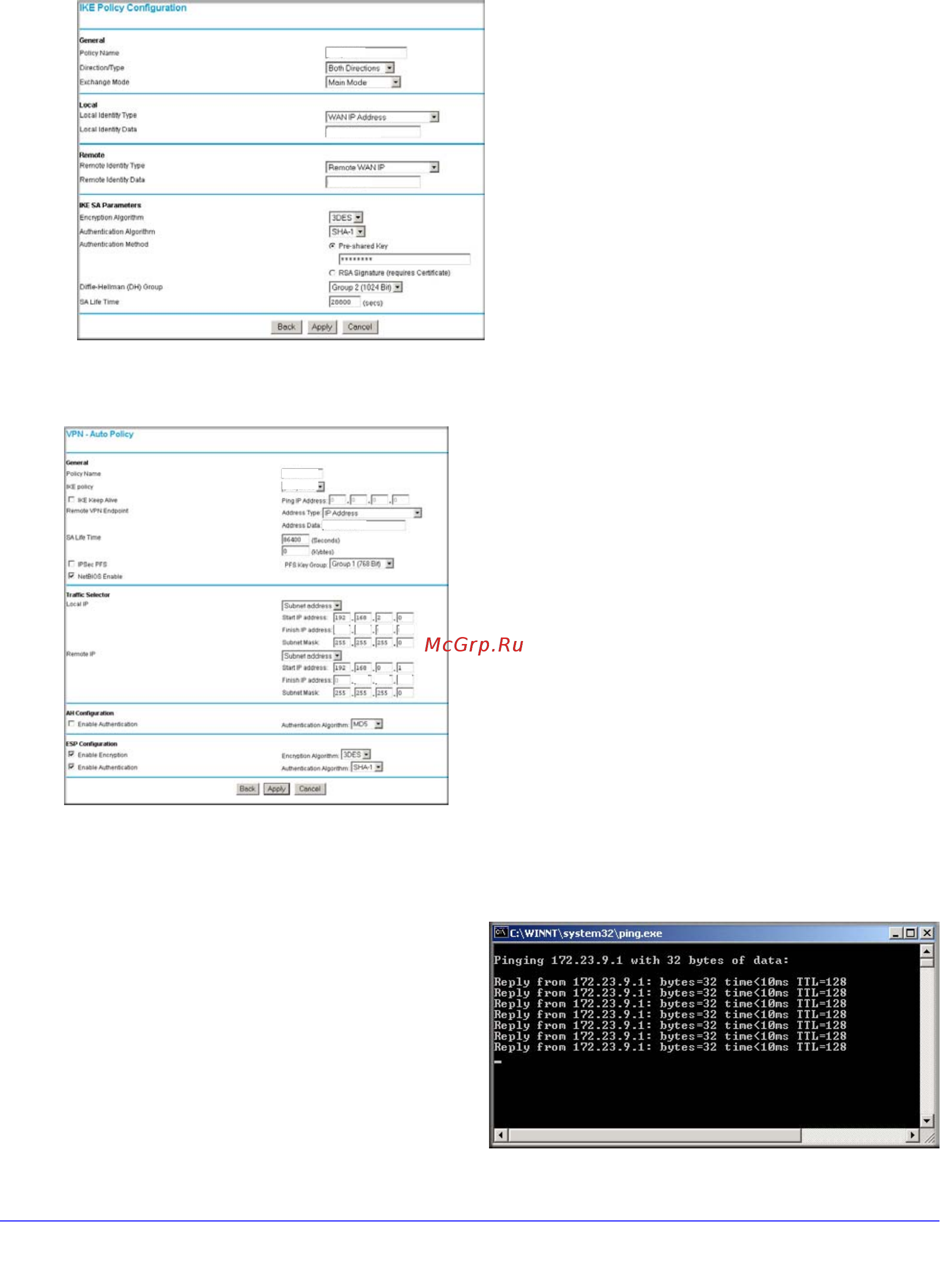

3. On the Gateway B router menu, under VPN, select IKE Policies, and click the Edit button to

display the IKE Policy Configuration screen:

toGW_A

14.15.16.17

22.23.24.25

4. On Gateway B router menu, under VPN, select VPN Policies, and click the Edit button to

display the VPN Auto Policy screen:

toGW_A

14.15.16.17

172 23 9

10 5 6

5. Test the VPN tunnel by pinging the remote network from a computer attached to Gateway A

(N300 wireless modem router).

a. Open the command prompt (Start > Run > cmd).

b. Type ping 1

72.23.9.

If the pings fail the first time, try the pings

a second time.
