Wireless Settings
32
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

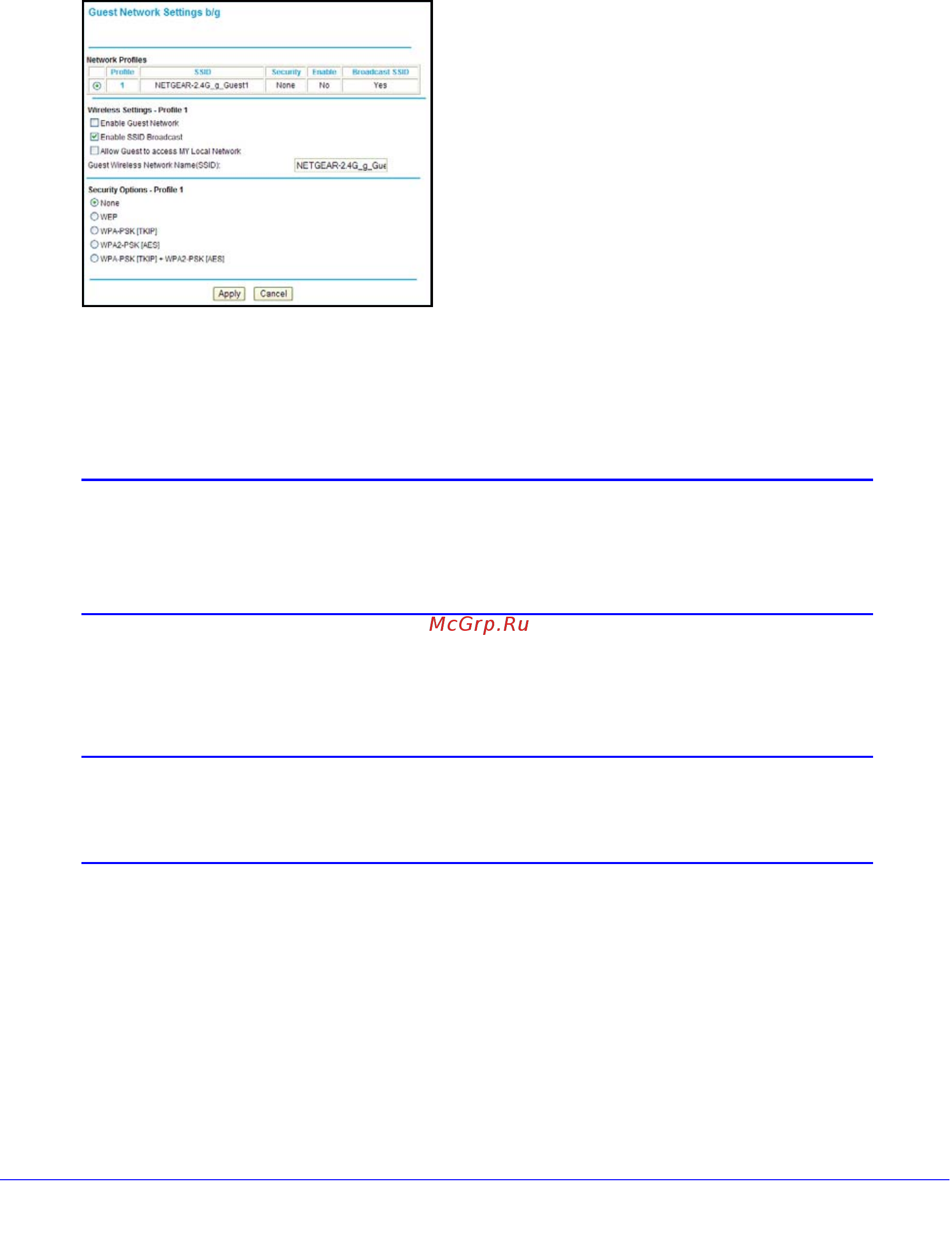

To configure a wireless guest network:
1. In the main menu, under Setup, select either Wireless Guest Network g/b or Wireless
Guest Network a, n. A Wireless Guest Network Settings screen similar to the following
figure displays:
2. Make sure that the Enable Guest Network check box is selected.
3. You can specify whether the SSID broadcast is enabled, and whether you want to allow
guest
s to access your local network.
4. You can also change the guest name in the Gues
t Wireless Network Name (SSID) field.
Note: NETGEAR strongly recommends that you change the default guest
network name (SSID) from the default name to a different name.
Note that the name is case-sensitive. For example, GuestNetwork is
not the same as Guestnetwork.
Enter a value of up to 32 alphanumeric characters. For the selected guest network, the
same name needs to be assigned to all wireless devices in your network.
Note: Wireless security is disabled by default. NETGEAR strongly
recommends that you implement wireless security for the guest
network.
5. To configure wireless security for the guest network, enter the security options. This process
is very similar to configuring wireless security for the N300 wireless modem router. For more
information, see Configure WEP Wireless Security on page 20 an
d Use Push 'N' Connect
(WPS) to Configure Your Wireless Network on page 24.
6. When you have finished making changes, click Appl
y.
