Network Maintenance
62
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

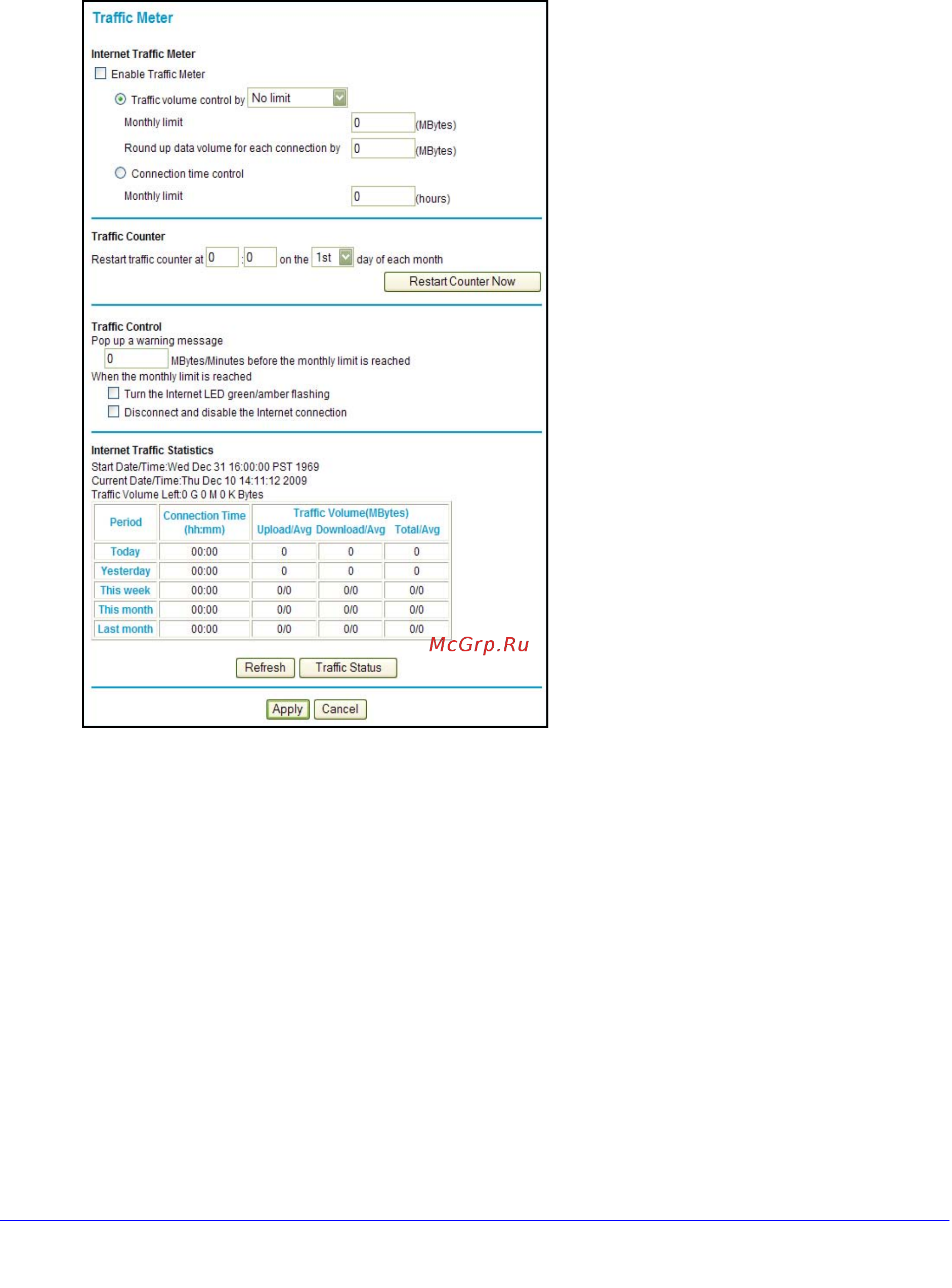

To monitor traffic on your router:
1. From the main menu, click Advanced > Traffic Meter.
a. To enable the traffic meter, select the Enable Traffic Meter check box.
2. If you would like to record and restrict the volume of Internet traffic, select the T
raffic
volume control by radio button. You can select one of the following options for controlling
the traffic volume:
• No Limit. No restriction is a
pplied when the traffic limit is reached.
• Download on
ly. The restriction is applied to incoming traffic only.
• Both Directions. The
restriction is applied to both incoming and outgoing traffic.
3. You can limit the amount of data traffic allowed per month:
• By specifying how ma
ny Mbytes per month are allowed.
• By specifying how ma
ny hours of traffic are allowed.
4. Under Tr
affic Counter, specify a specific time and date to restart the traffic counter.
5. Under Tr
affic Control, specify when to issue a warning message before the monthly limit of
Mbytes or hours is reached. You can select one of the following to occur when the limit is
attained:
