D-Link DSR-150 [100/274] Figure 61 list of user defined services

Unified Services Router User Manual

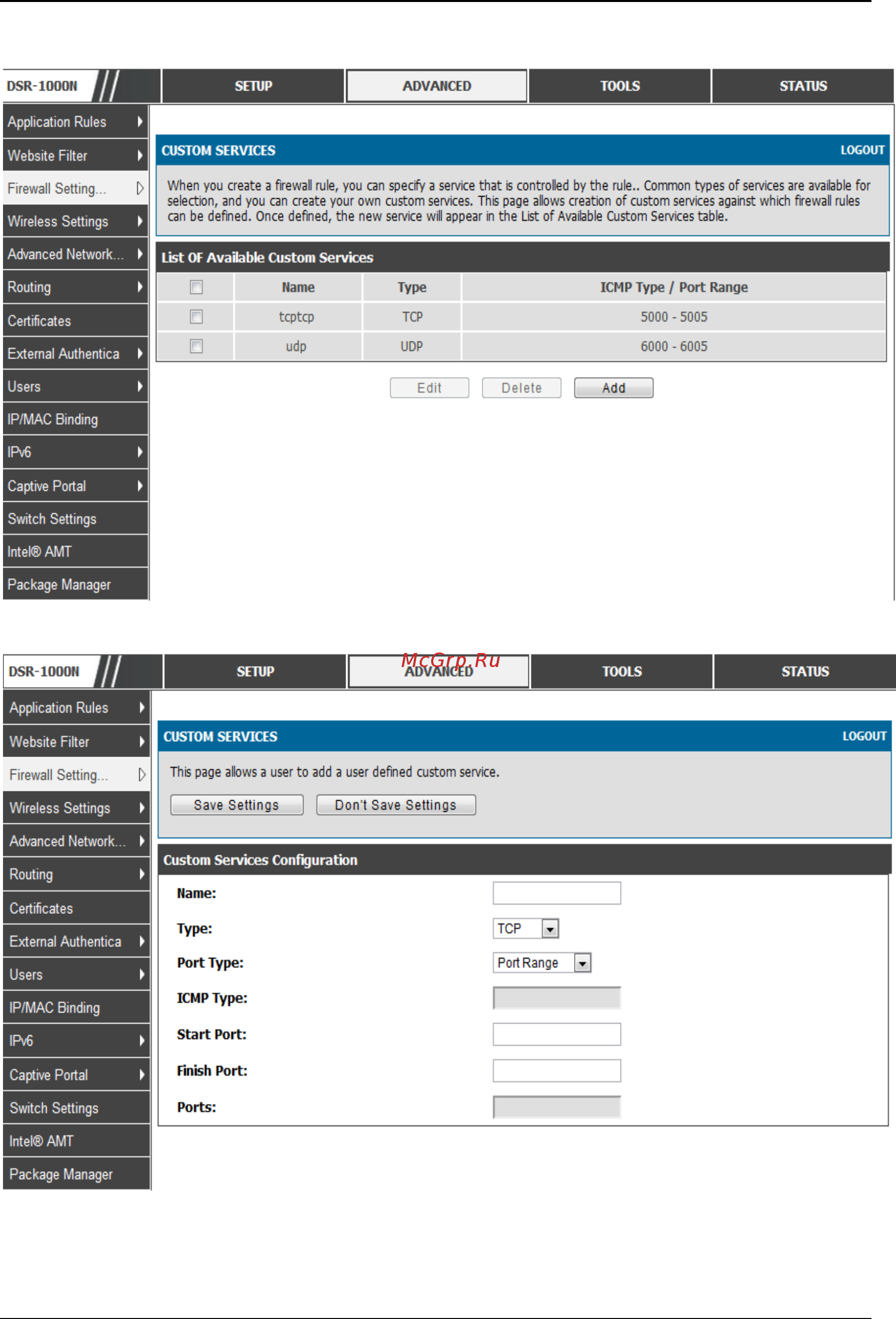

Figure 61: List of user defined services.

Figure 62: Custom Services configuration

Created services are available as options for firewall rule configuration.

Name: Name of the service for identification and management purposes.
