D-Link DSR-150 [127/274] Openvpn remote network

Unified Services Router User Manual

125

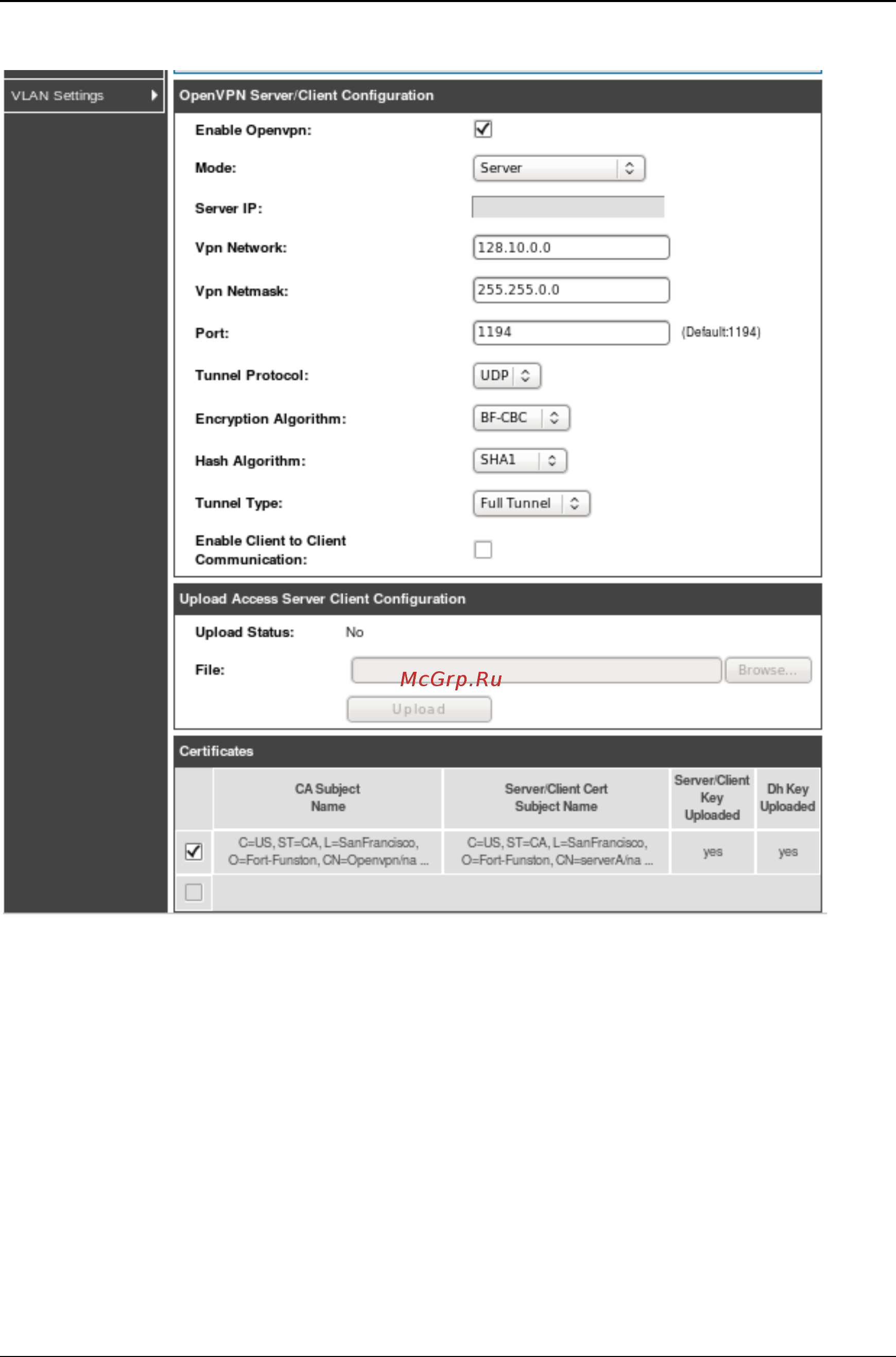

Figure 83: OpenVPN configuration

6.4.4 OpenVPN Remote Network

Setup > VPN Settings > OpenVPN > OpenVPN Remote Network (Site-to-

Site)

This page allows the user to add/edit a remote network and netmask which allows the

other OpenVPN clients to reach this network.
