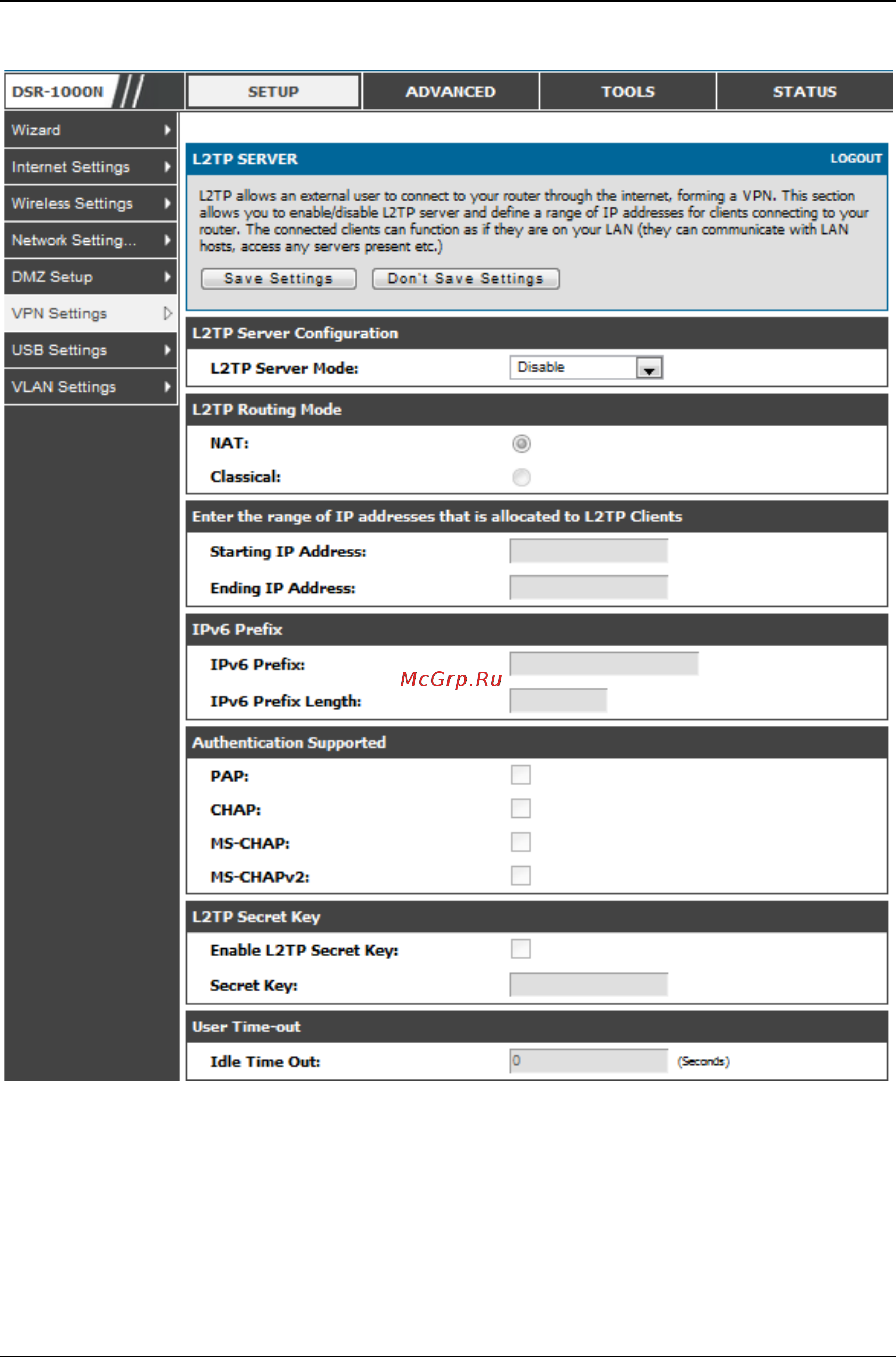

Figure 82: L2TP tunnel configuration – L2TP Server

6.4.3 OpenVPN Support

Setup > VPN Settings > OpenVPN > OpenVPN Configuration

OpenVPN allows peers to authenticate each other using a pre-shared secret key,

certificates, or username/password. When used in a multiclient-server configuration,

it allows the server to release an authentication certificate for every client, using
